Wilwood Front Red Dynapro SRP Brake Conversion, Integra/EL/Civic/Civic del Sol/Fit (1990–2013), 12.19-Inch

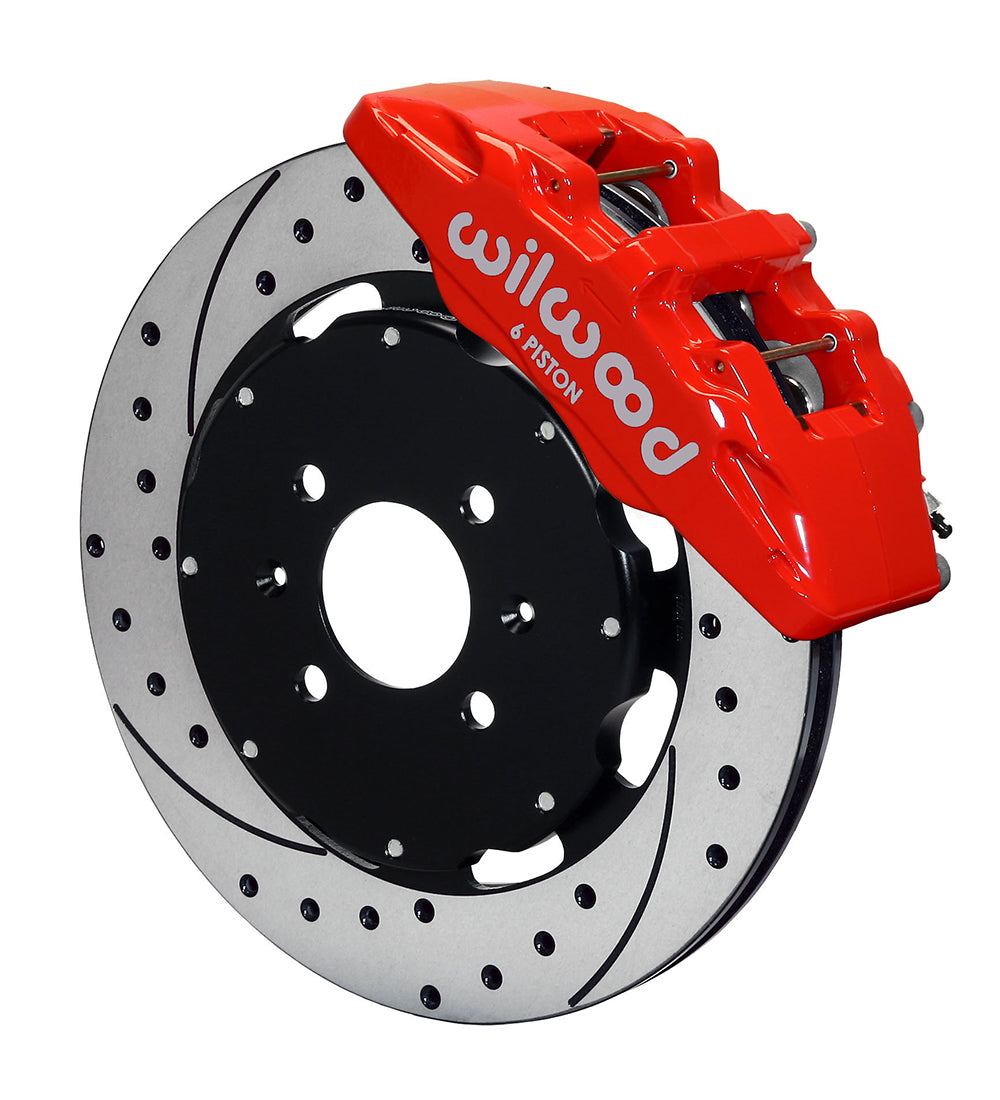

This red Wilwood front kit combines six-piston Dynapro calipers with 12.19-inch drilled/slotted rotors. The separate rotor hats use the specified four-lug hub arrangement, while the brackets require the original 262 mm disc-spindle geometry. A visually similar smaller Honda brake package is not interchangeable at the mounting interface. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10735-DR
• Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hat)
• Calipers: Dynapro 6; 6 pistons; Red Powder Coat.
• Bores: 1.38, 1.00, 1.00 inches. Pads: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; SRP Drilled & Slotted, Iron, Black Electro Coat. 32 vanes.
• Wheel bolt circles: 4 x 3.93 inches.

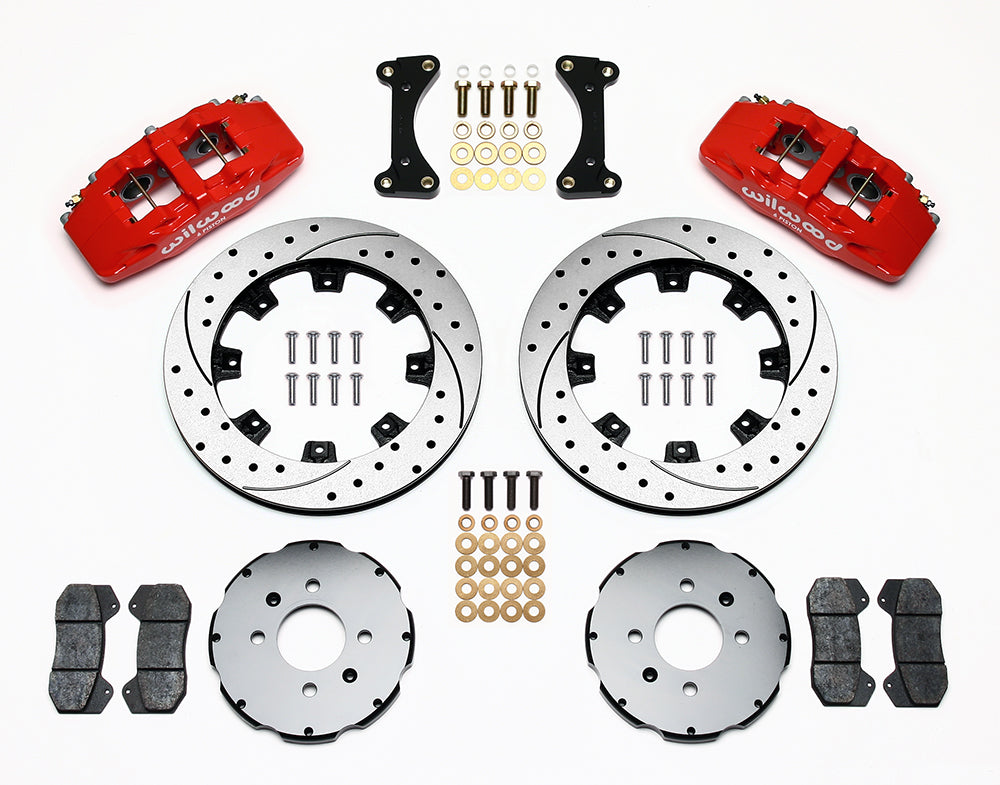

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Match the individual Honda/Acura application and its trim, body-style or year conditions. Confirm the original rotor diameter and spindle against DS637 before ordering. Hydraulic hoses are not included and must be selected for the exact chassis. Check rotor centering, wheel registration and the actual wheel-clearance drawing before bleeding the completed system.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
