Wilwood Front Black SRP Dynapro Kit for Integra/EL/Civic/Civic del Sol/Fit (1990–2013), 262 mm OE Spindles

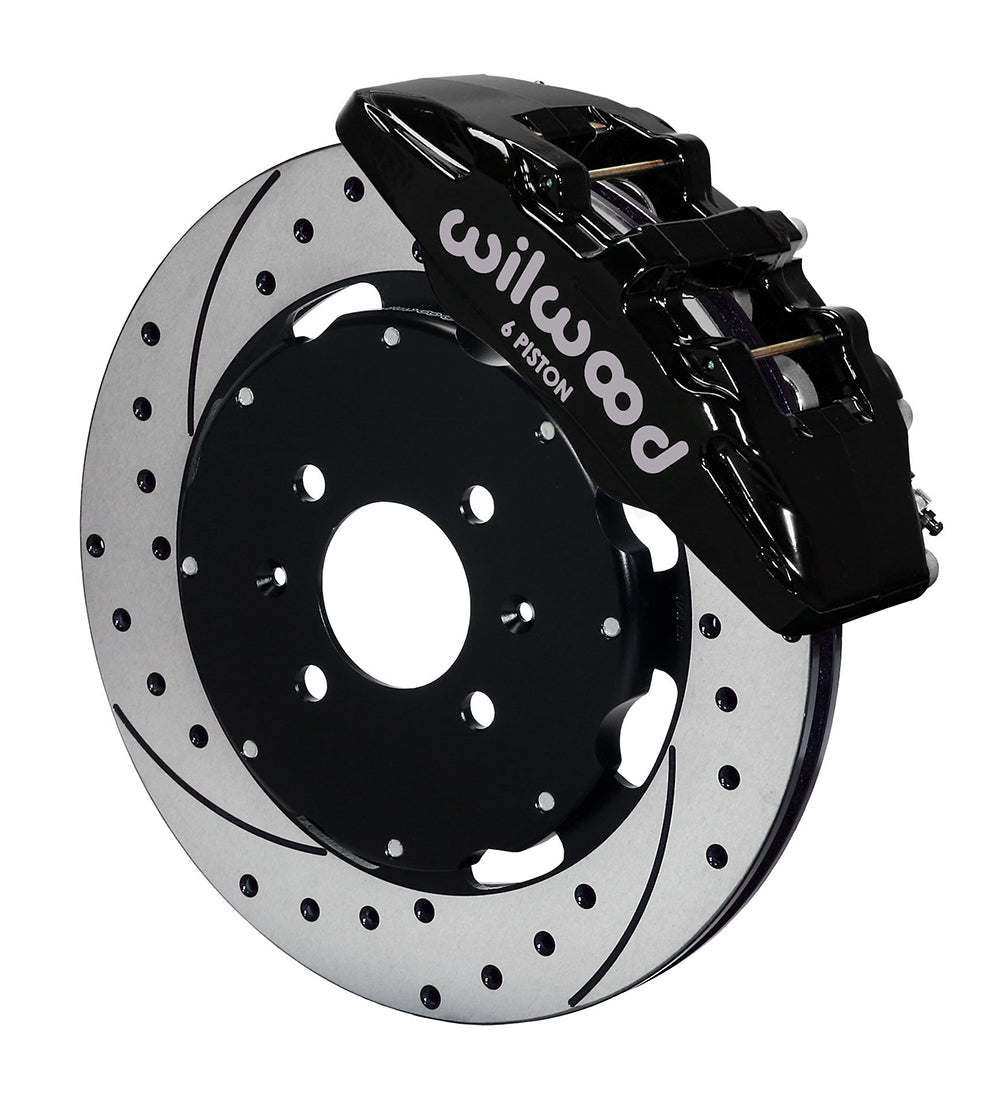

Drilled/slotted 12.19-inch rotors and black Dynapro 6 calipers form this Wilwood Honda/Acura front package. It is configured for the factory spindle originally carrying a 262 mm rotor. The six-piston calipers use differential bores appropriate to the selected vented friction ring and mounting brackets. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10735-D
• Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hat)
• Calipers: Dynapro 6; 6 pistons; Black Powder Coat.
• Bores: 1.38, 1.00, 1.00 inches. Pads: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; SRP Drilled & Slotted, Iron, Black Electro Coat. 32 vanes.
• Wheel bolt circles: 4 x 3.93 inches.

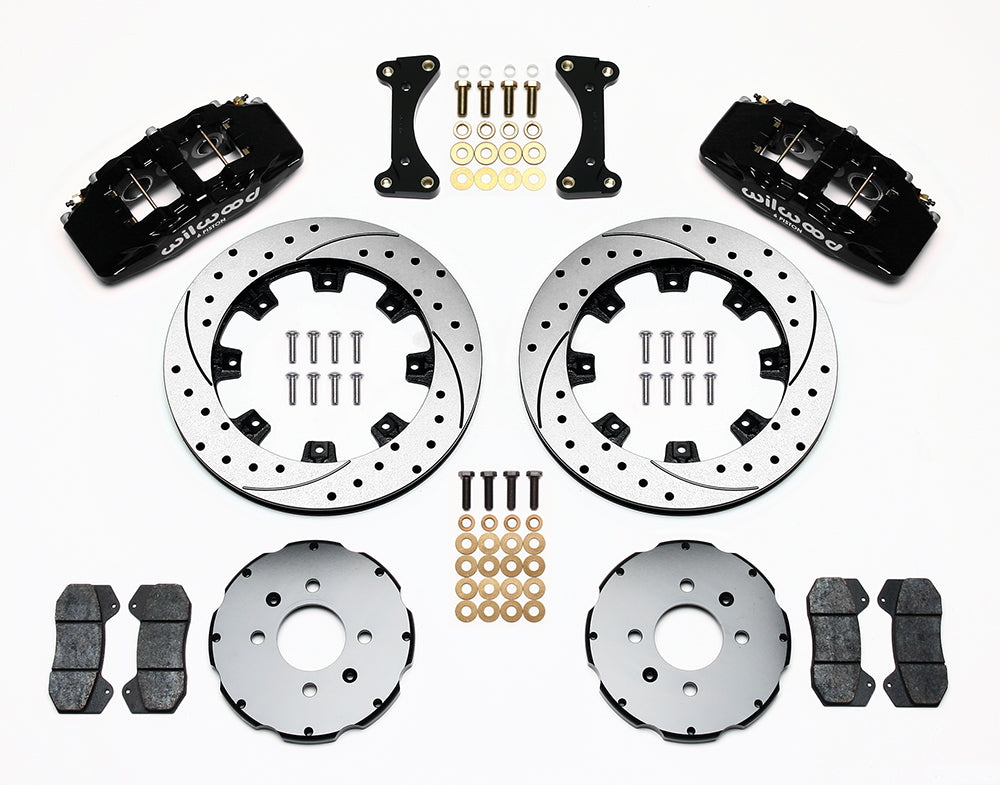

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Read the exact model/year and trim row, including Type R or other exclusions where stated. The original 262 mm disc-spindle requirement overrides general Civic, Integra, EL, del Sol or Fit naming. DS637 shows the four-lug hub and hat arrangement. Supply suitable hydraulic hoses separately and verify the full wheel template at the spokes and barrel before the brake conversion is assembled.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
