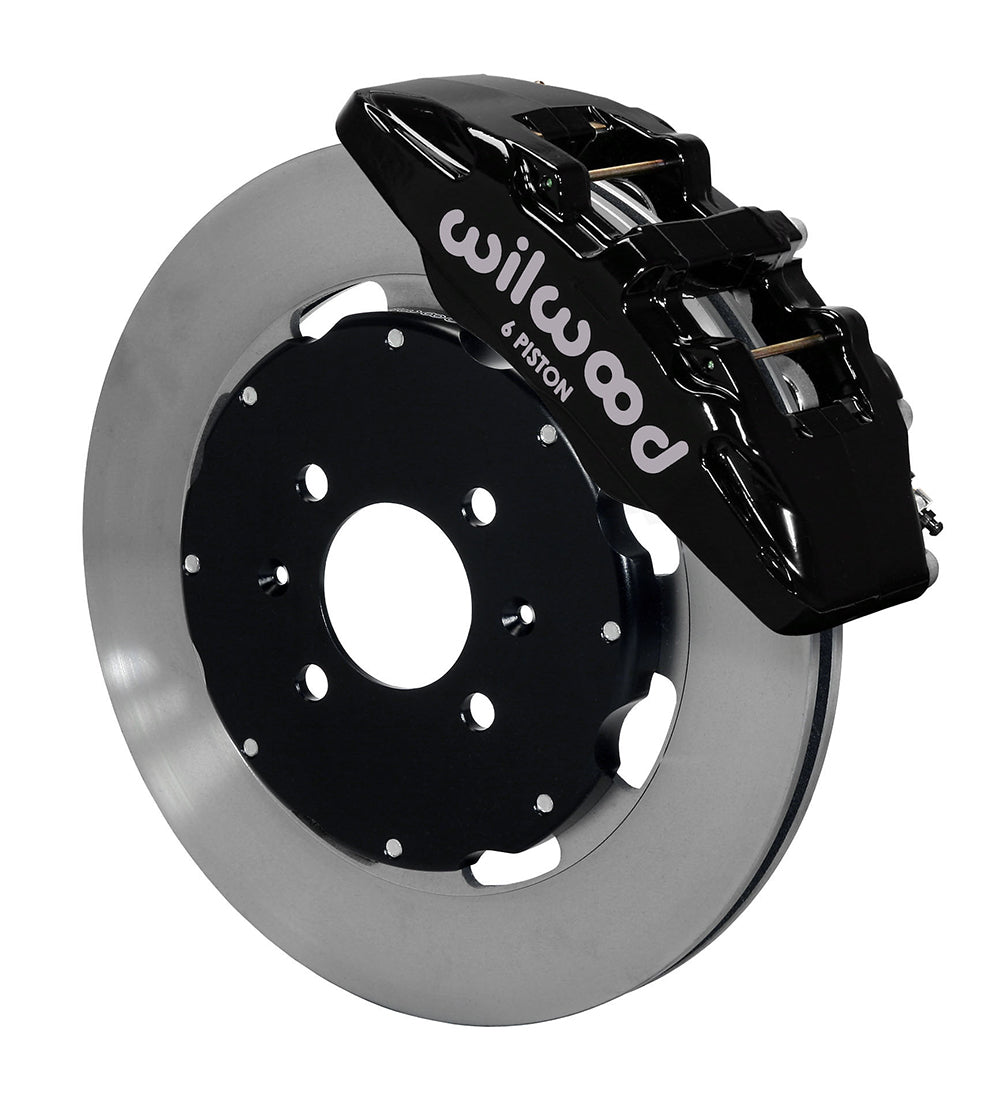

Wilwood Front Black Dynapro 6 Kit, Acura Integra/EL and Honda Civic/Civic del Sol/Fit (1990–2013), 12.19-Inch Plain

Wilwood's black Dynapro 6 front kit replaces the specified 262 mm original brake package with 12.19-inch vented rotors. Six-piston calipers mount radially, with separate hats using the existing four-lug hub arrangement. The spindle's original rotor diameter is the selection criterion, not simply the Honda or Acura model name. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10735
• Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hat)
• Calipers: Dynapro 6; 6 pistons; Black Powder Coat.
• Bores: 1.38, 1.00, 1.00 inches. Pads: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; Plain Face, Iron, Plain. 32 vanes.
• Wheel bolt circles: 4 x 3.93 inches.

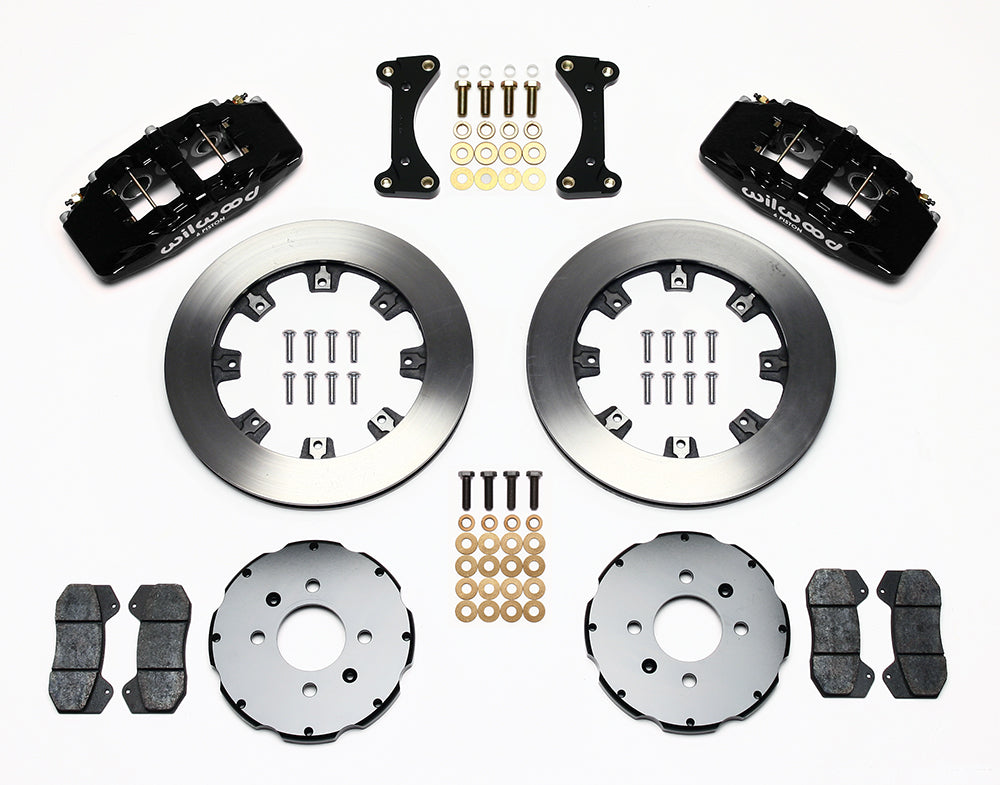

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Confirm the exact Integra, EL, Civic, Civic del Sol or Fit row and its trim/year qualifications. DS637 requires the factory 262 mm disc spindle; the smaller 240 mm spindle uses a different kit. Inspect the hub register and wheel-stud pattern, select hydraulic lines for the specific application and compare the actual wheel with the clearance template before assembly.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
