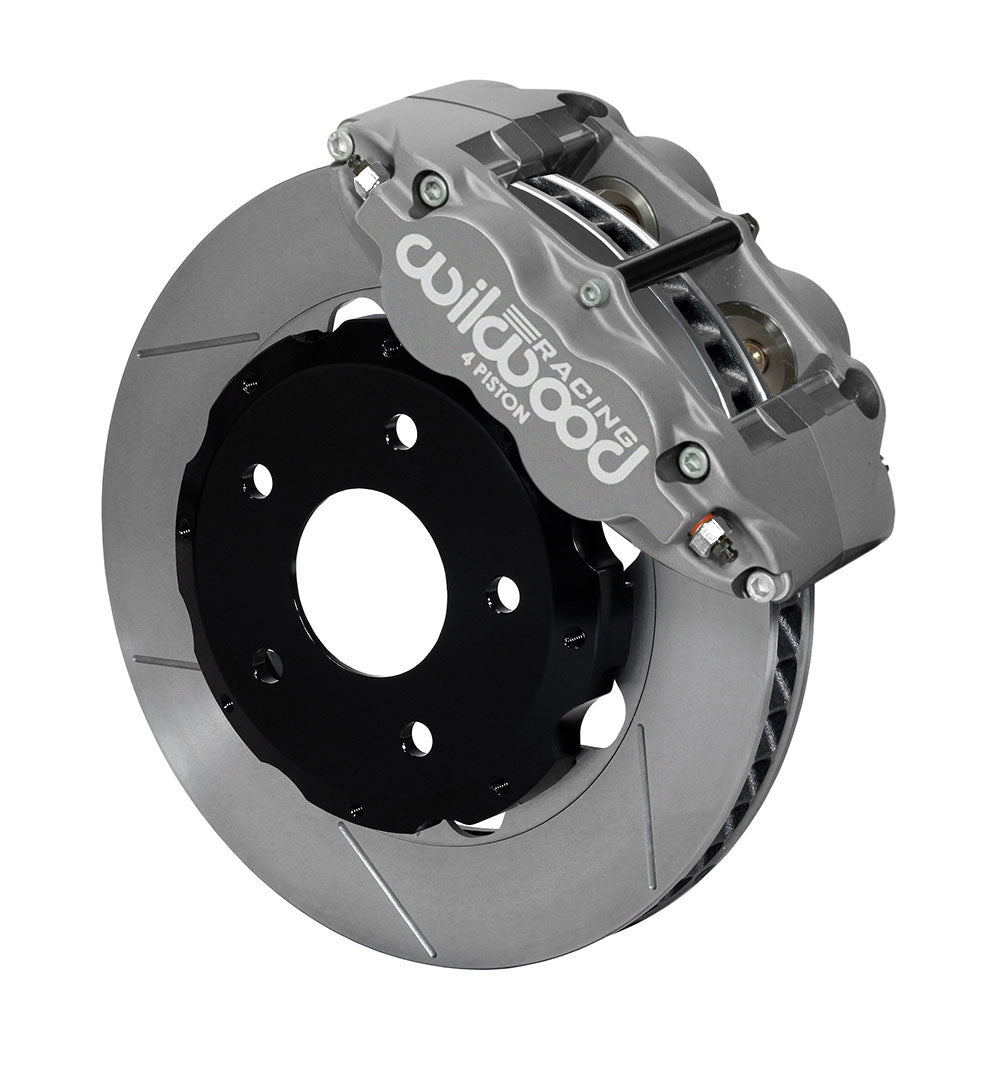

Wilwood Front Road-Race Superlite 4R Brake Kit for Chevrolet Camaro/Pontiac Firebird (1993–2002), 12.19-Inch GT

Wilwood's four-piston Superlite road-race kit uses 12.19 × 1.25-inch GT rotors, high-temperature BP-35 pads and included hydraulic flex lines. The calipers have the Thermlock arrangement specified for this racing package. This is not the ordinary street pad combination: prolonged low-temperature use can accelerate pad and rotor wear. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10691
• Type: Forged Superlite 4R Big Brake Front Brake Kit (Race)
• Calipers: Forged Superlite 4R; 4 pistons; Type III Anodize.
• Bores: 1.88, 1.62 inches. Pads: BP-35.
• Rotors: 12.19-inch diameter × 1.25-inch width; GT Slotted, Spec-37 Iron, Plain. 48 curved vanes.
• Wheel bolt circles: 5 X 4.75 inches.

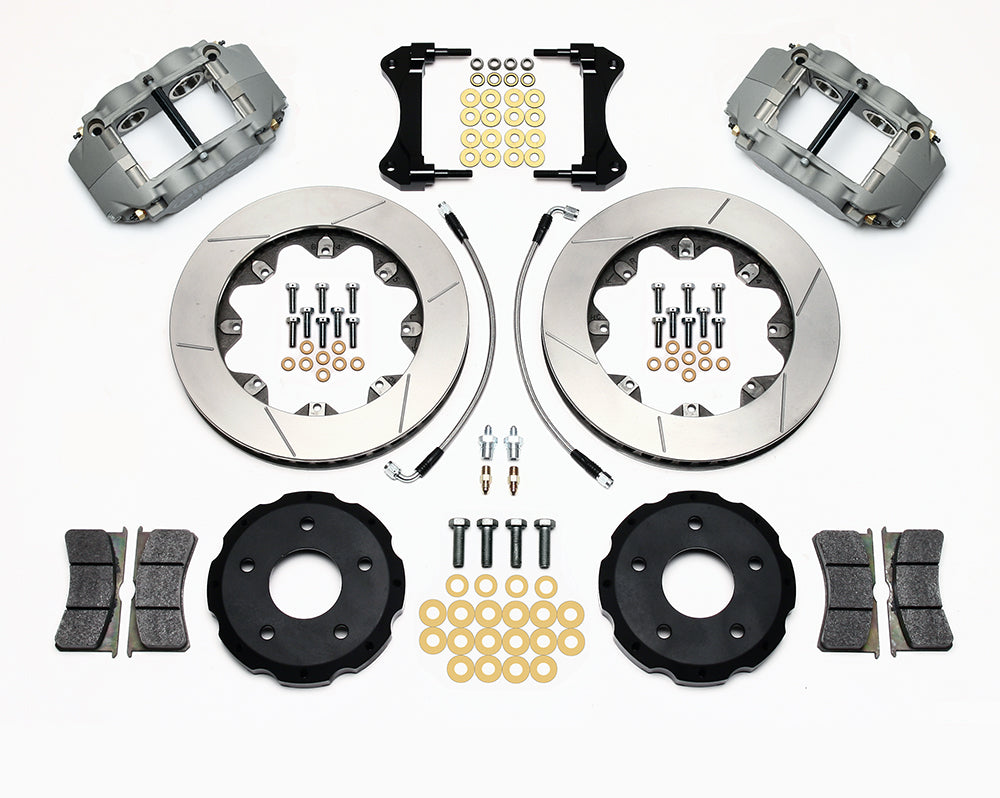

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Hydraulic flex lines included for the specified application.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.
• Application-use guidance: Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear.

Fitment & Compatibility

The mounting package fits 1998–2002 Camaro/Firebird spindles originally used with twin-piston calipers. Earlier Camaro rows require conversion to that later spindle; 1993–1997 single-piston-caliper spindles do not accept the kit directly. Follow DS635, check the included hose routing and compare the actual wheel template. Select the race pad duty deliberately before using the vehicle outside its intended operating conditions.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
