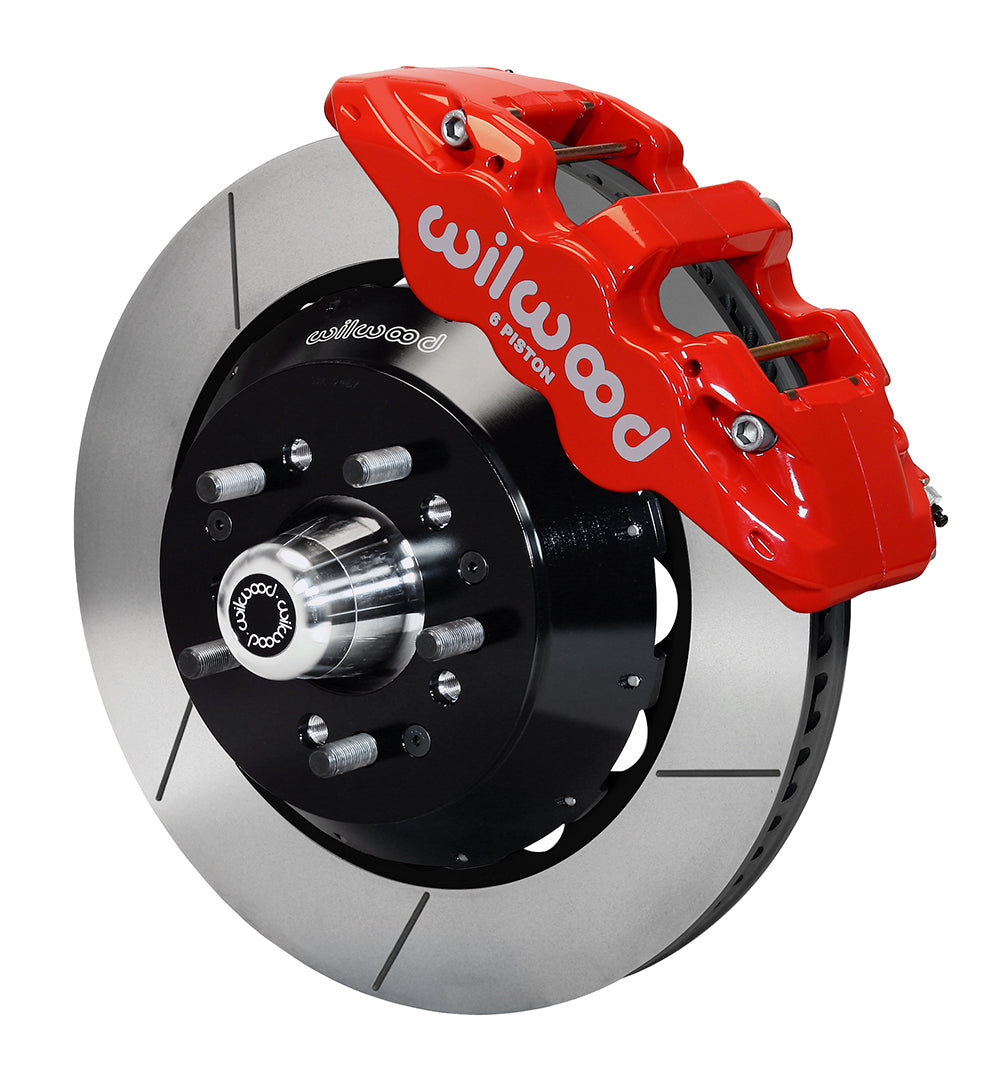

Wilwood Front Red AERO6 GT Slotted Hub Kit, 14-Inch, for Wilwood ProSpindles

This Wilwood ProSpindle front conversion uses red AERO6 calipers, GT slotted 14-inch rotors and BP-20 pads. Aluminum replacement hubs and separate hats carry the vented Spec-37 friction rings. The package is dimensioned for Wilwood's spindle geometry, so vehicle model alone cannot establish its mounting compatibility. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10641-R
• Type: AERO6 Big Brake Front Brake Kit
• Calipers: AERO6; 6 pistons; Red Powder Coat.
• Bores: 1.62, 1.12, 1.12 inches. Pads: BP-20.
• Rotors: 14.00-inch diameter × 1.25-inch width; GT Slotted, Spec-37 Iron, Black Electro Coat. 72 curved vanes.
• Wheel mounting change from OE: +.68 inches per side.
• Hubs: Hub - Hat Mount; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

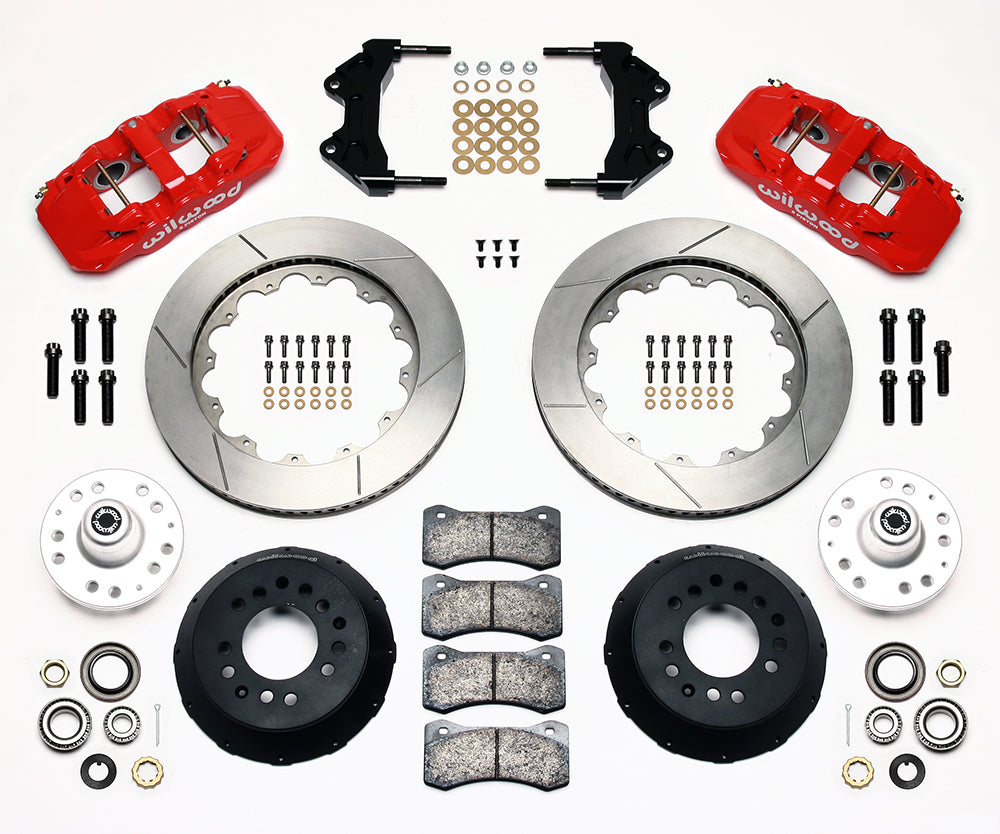

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 18 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Compare the actual spindle with DS629 and confirm that its bearing and bracket interfaces match the kit. A correct existing ProSpindle can be retained after inspection; it is not included with the brake package. Check the +0.68-inch wheel offset change and full wheel-clearance drawing. Select hydraulic hoses for the chassis and verify the completed brake system's pedal travel and balance.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
