Wilwood Front Red 14-Inch SRP AERO6 Brake Kit for Wilwood ProSpindles, Replacement Hubs

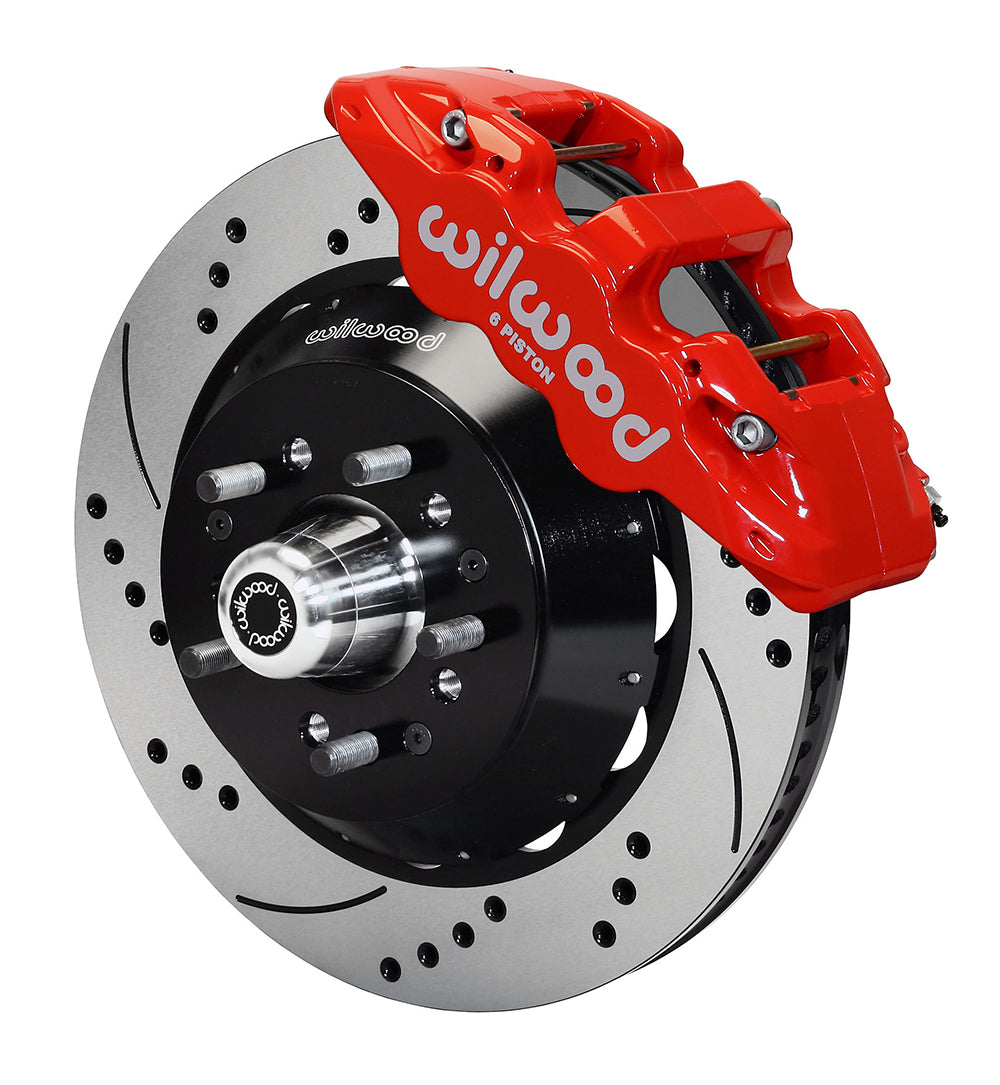

Red AERO6 six-piston calipers work over drilled/slotted 14-inch rotors in this Wilwood ProSpindle package. The selected SRP kit uses BP-10 pads, replacement hubs and separate hats. The 1.25-inch-wide friction rings and radial caliper brackets need the specific spindle arrangement identified in the installation instructions. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10641-DR
• Type: AERO6 Big Brake Front Brake Kit
• Calipers: AERO6; 6 pistons; Red Powder Coat.
• Bores: 1.62, 1.12, 1.12 inches. Pads: BP-10.
• Rotors: 14.00-inch diameter × 1.25-inch width; SRP Drilled & Slotted, Spec-37 Iron, Black Electro Coat. 72 curved vanes.
• Wheel mounting change from OE: +.68 inches per side.
• Hubs: Hub - Hat Mount; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

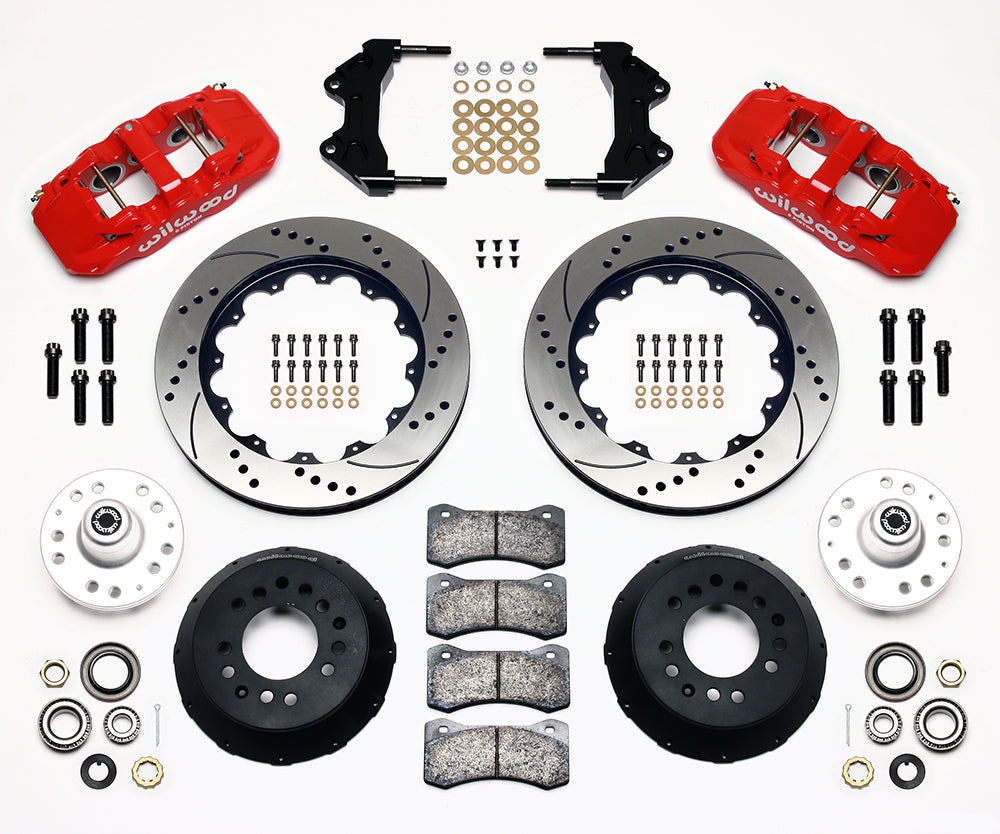

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 18 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Confirm the Wilwood ProSpindle already on the chassis or planned for the build; the brake kit does not supply it. Follow DS629 for bearing and bracket installation, and include the +0.68-inch wheel mounting change in the tire-position check. Hydraulic lines are separate. Use the actual wheel template to inspect caliper-to-spoke space and inner barrel clearance before final assembly.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
