Product details

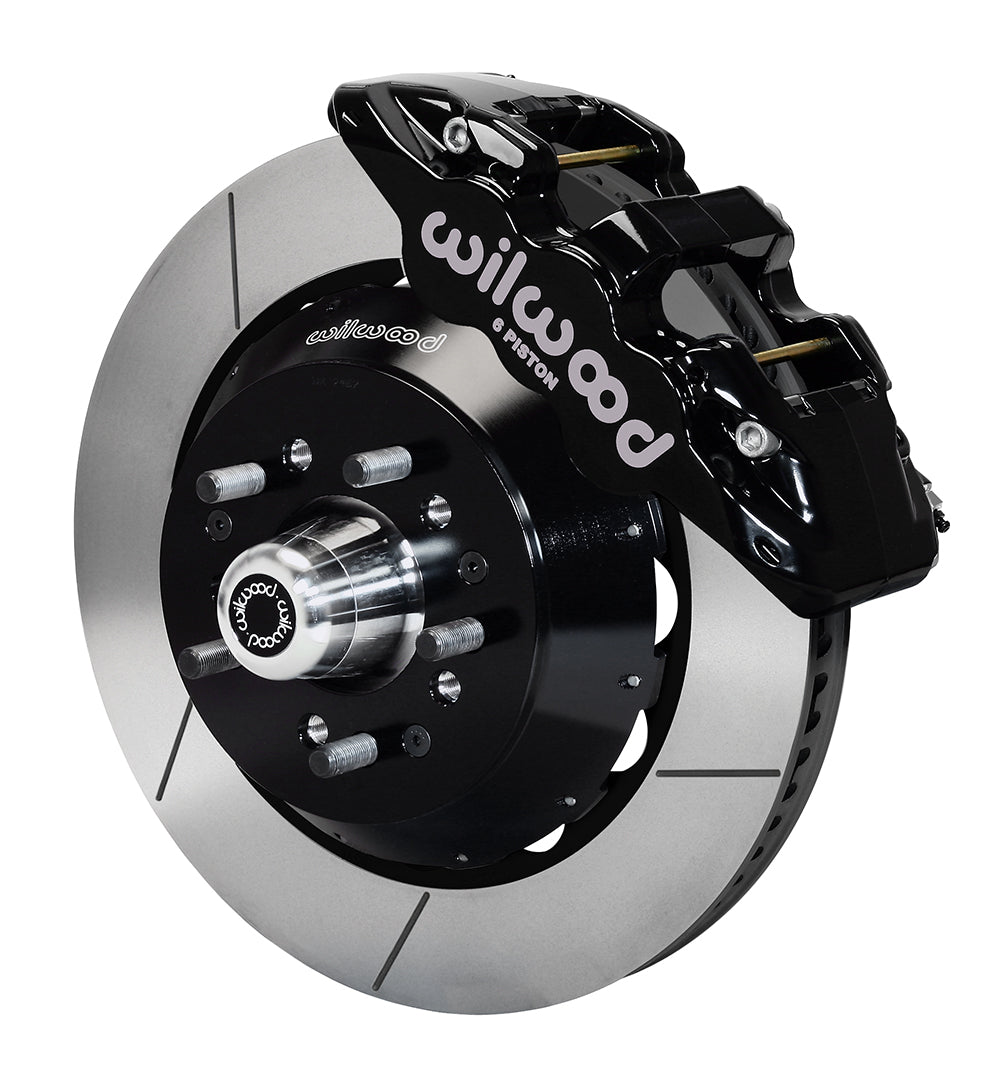

This Wilwood front package combines black AERO6 six-piston calipers with 14-inch GT slotted rotors for the Wilwood ProSpindle arrangement. Replacement hubs and separate hats position the 1.25-inch-wide friction rings. The brake kit is not a substitute for installing the required spindle geometry. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.
Technical Details
- Manufacturer part number: 140-10641
- Type: AERO6 Big Brake Front Brake Kit
- Calipers: AERO6; 6 pistons; Black Powder Coat.
- Bores: 1.62, 1.12, 1.12 inches. Pads: BP-20.
- Rotors: 14.00-inch diameter × 1.25-inch width; GT Slotted, Spec-37 Iron, Black Electro Coat. 72 curved vanes.
- Wheel mounting change from OE: +.68 inches per side.
- Hubs: Hub - Hat Mount; Aluminum; Bare.
- Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

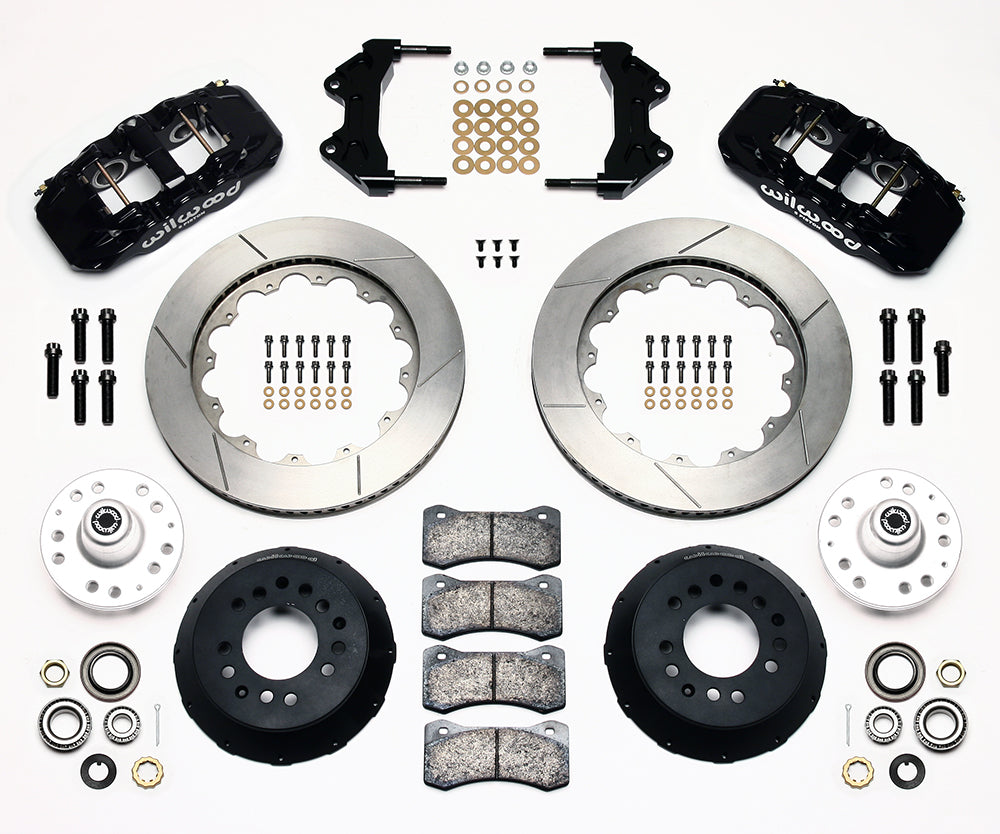

- Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs, rotor hats.
- Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
- Conditional wheel minimum: 18 inches. Check the clearance drawing for barrel and spoke offset.
Fitment & Compatibility
Compare the installed or planned Wilwood ProSpindle with DS629 before selecting the brake package. The spindle itself is separate from the calipers, rotors and hubs. Account for the published +0.68-inch wheel mounting change relative to its stated reference, then check tire position and the actual wheel template. Hydraulic hoses must be selected for the chassis and routed through full steering travel.
PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
California Proposition 65 warning — brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
