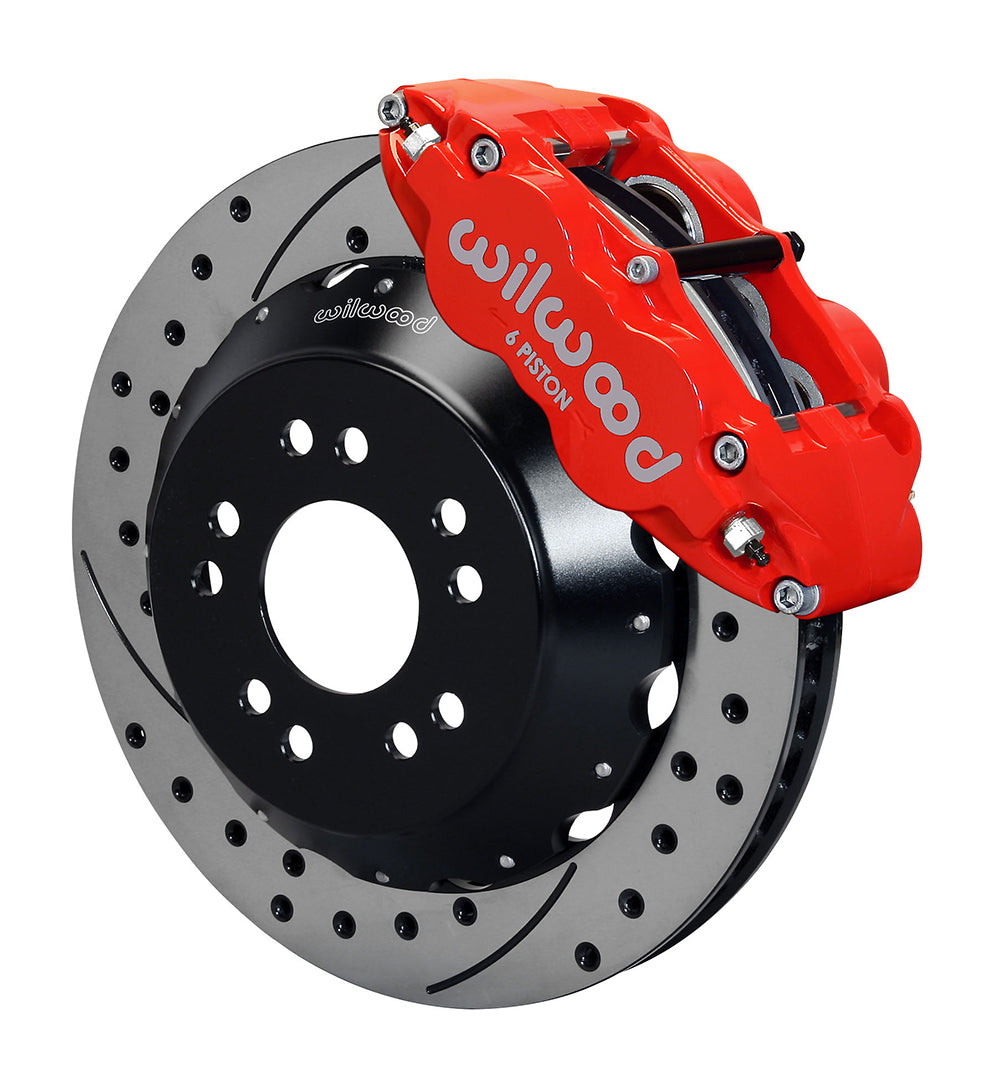

Wilwood Front 14-Inch Drilled/Slotted Rotor Package with Red Six-Piston Calipers, Chevrolet Corvette C2/C3 (1965–1982)

This red-caliper Wilwood Corvette package uses six-piston Superlite units and drilled/slotted 14-inch rotors. The selected SRP combination includes BP-10 pads and separate hats for the original front hubs. Its 72-curved-vane friction rings are 1.25 inches wide, with bracket shimming required for correct rotor centering. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10617-DR
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)
• Calipers: Forged Narrow Superlite 6R; 6 pistons; Red Powder Coat.
• Bores: 1.75, 1.25, 1.25 inches. Pads: BP-10.
• Rotors: 14.00-inch diameter × 1.25-inch width; SRP Drilled & Slotted, Spec-37 Iron, Black Electro Coat. 72 curved vanes.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

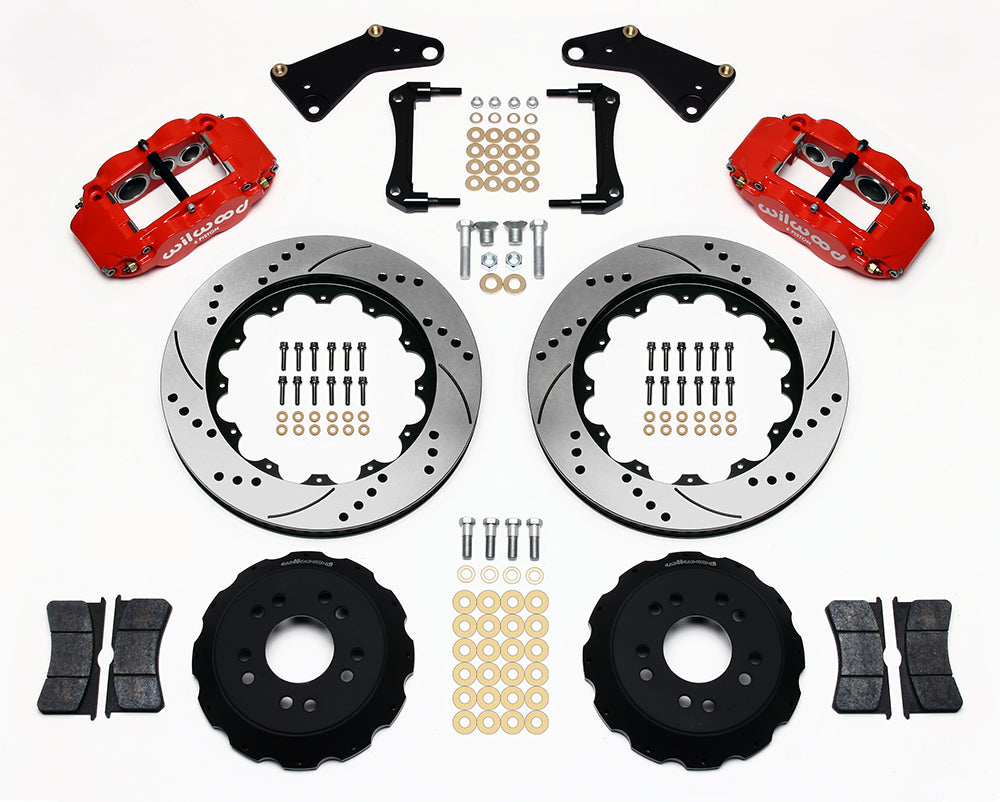

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 18 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Inspect the original C2/C3 hub and spindle arrangement and follow DS627 for any original rotor-to-hub separation. A serviceable retained bearing and wheel-stud pattern are essential to the hat fit. Provide compatible hydraulic lines separately. Use the exact clearance template behind the spokes and around the barrel before checking pedal travel and completing the brake test.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
