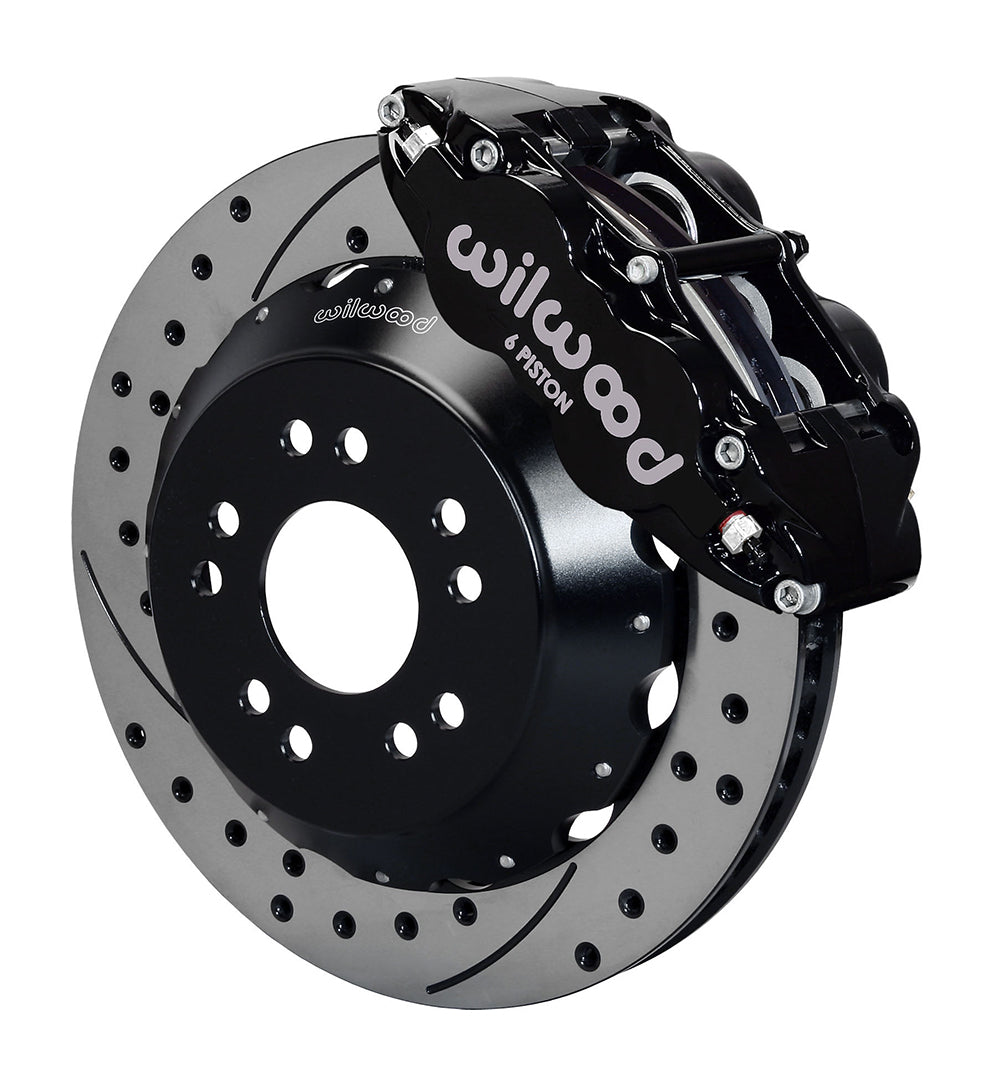

Wilwood Front Black 14-Inch SRP Brake Conversion, Corvette C2/C3 (1965–1982), Six-Piston Superlite

Drilled and slotted friction faces identify the SRP rotors in this Wilwood C2/C3 Corvette front kit. Their 14.00-inch diameter is paired with a 1.25-inch width and 72 curved cooling vanes. Black six-piston Superlite calipers and BP-10 pads complete the selected hydraulic braking combination; the original front hubs remain in service after inspection. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10617-D
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)
• Calipers: Forged Narrow Superlite 6R; 6 pistons; Black Powder Coat.
• Bores: 1.75, 1.25, 1.25 inches. Pads: BP-10.
• Rotors: 14.00-inch diameter × 1.25-inch width; SRP Drilled & Slotted, Spec-37 Iron, Black Electro Coat. 72 curved vanes.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

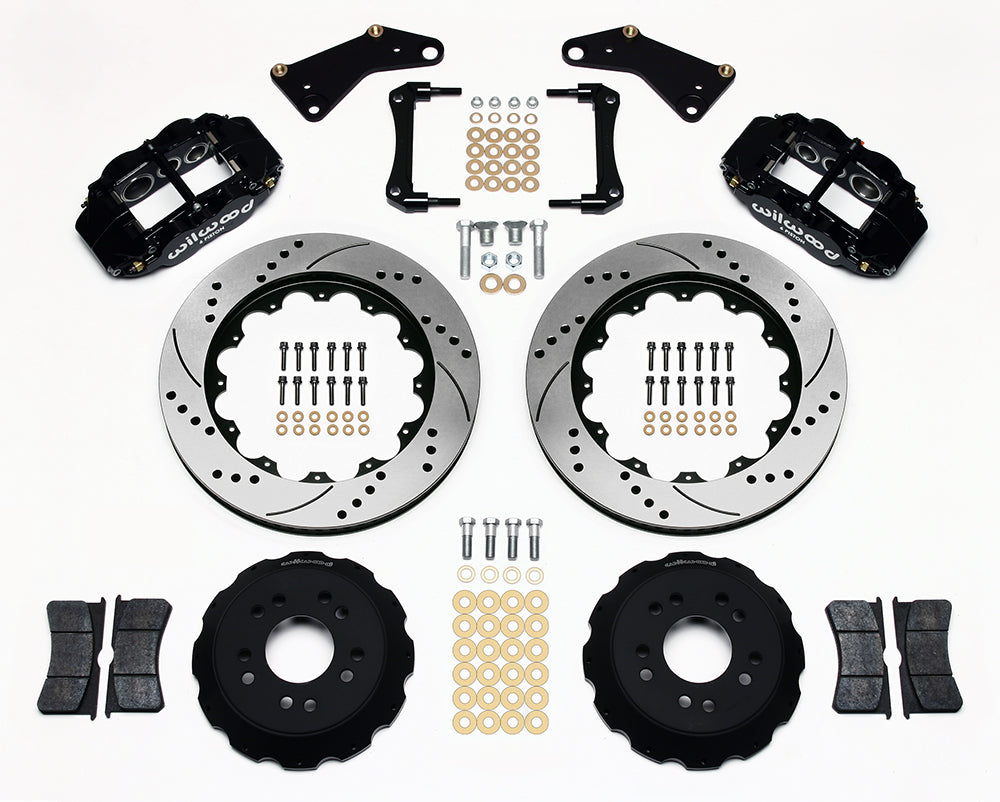

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 18 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Use the 1965–1982 Corvette spindle arrangement shown in DS627 and check any work needed to separate the original rotor from its hub. Follow the bracket-alignment procedure, provide suitable flex lines and compare the actual wheel with this kit's clearance drawing.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
