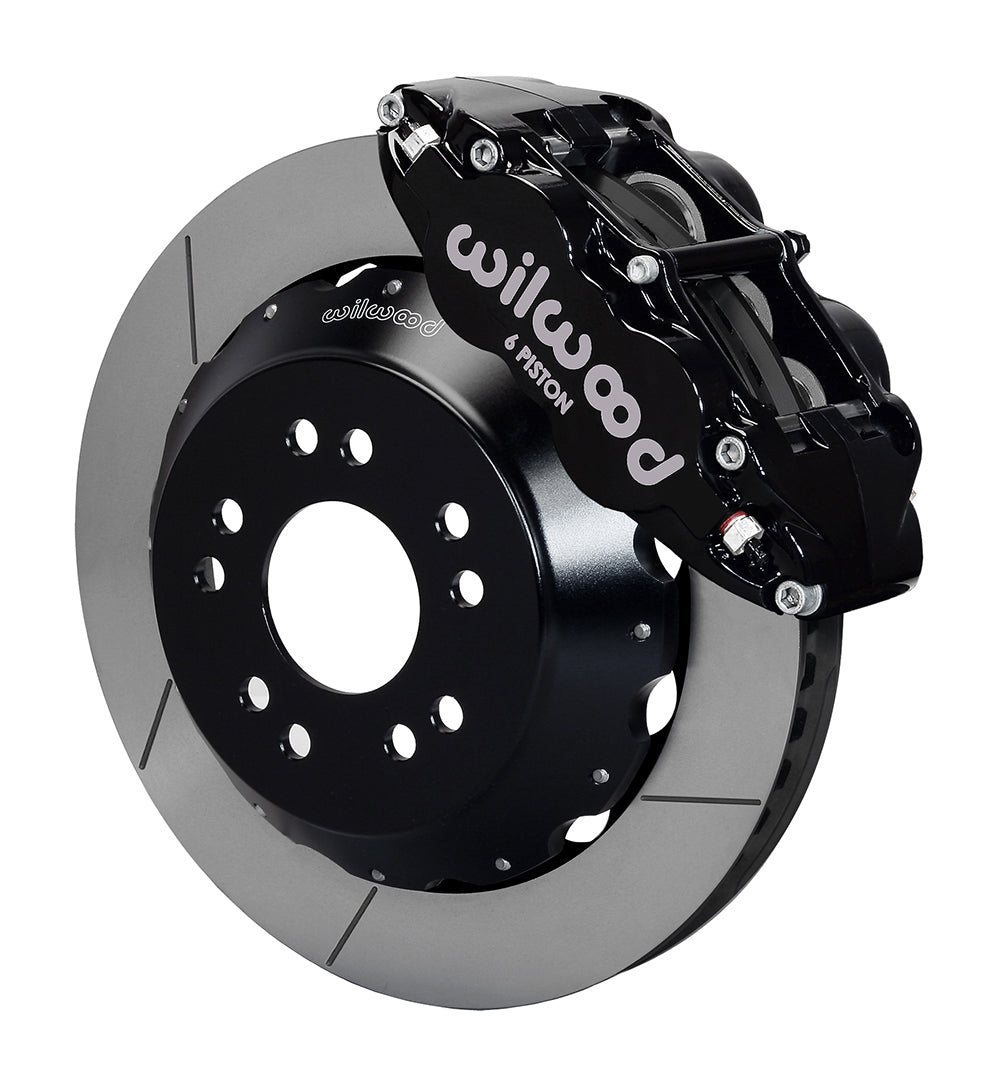

Wilwood Front Black 14-Inch GT Superlite Brake Kit for Chevrolet Corvette C2/C3 (1965–1982)

A 14.00-inch friction ring and six-piston hydraulic caliper define this Wilwood front conversion for the 1965–1982 Chevrolet Corvette C2/C3. The black Superlite calipers operate over GT slotted Spec-37 rotors, with BP-20 pads selected for this combination. Separate aluminum hats attach the 1.25-inch-wide rotors to the Corvette's retained hubs. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10617
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)
• Calipers: Forged Narrow Superlite 6R; 6 pistons; Black Powder Coat.
• Bores: 1.75, 1.25, 1.25 inches. Pads: BP-20.
• Rotors: 14.00-inch diameter × 1.25-inch width; GT Slotted, Spec-37 Iron, Black Electro Coat. 72 curved vanes.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

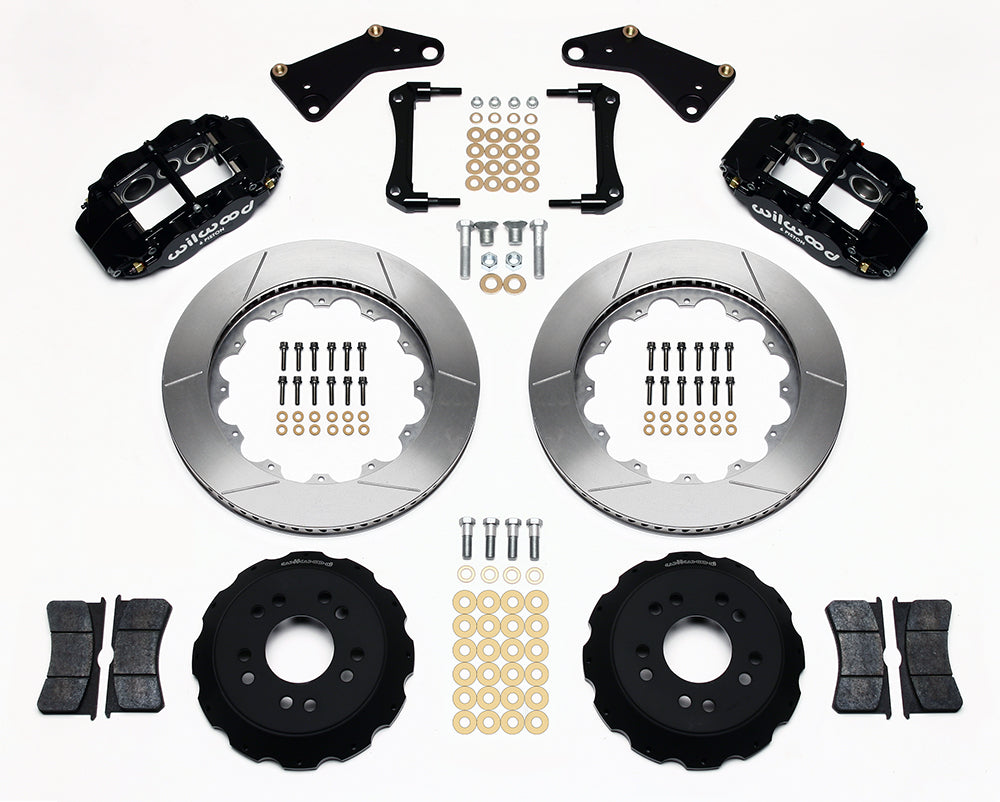

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 18 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Start with the original spindle and a serviceable hub, bearing and stud arrangement. DS627 covers separating the original rotor from the hub where necessary and centering the new assembly. Check the wheel template for this larger brake package and select hydraulic flex lines separately.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.

California Proposition 65 warning — brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
