Wilwood Front Red GT Slotted Superlite Kit, Corvette C2/C3 (1965–1982), 13.06-Inch with BP-20 Pads

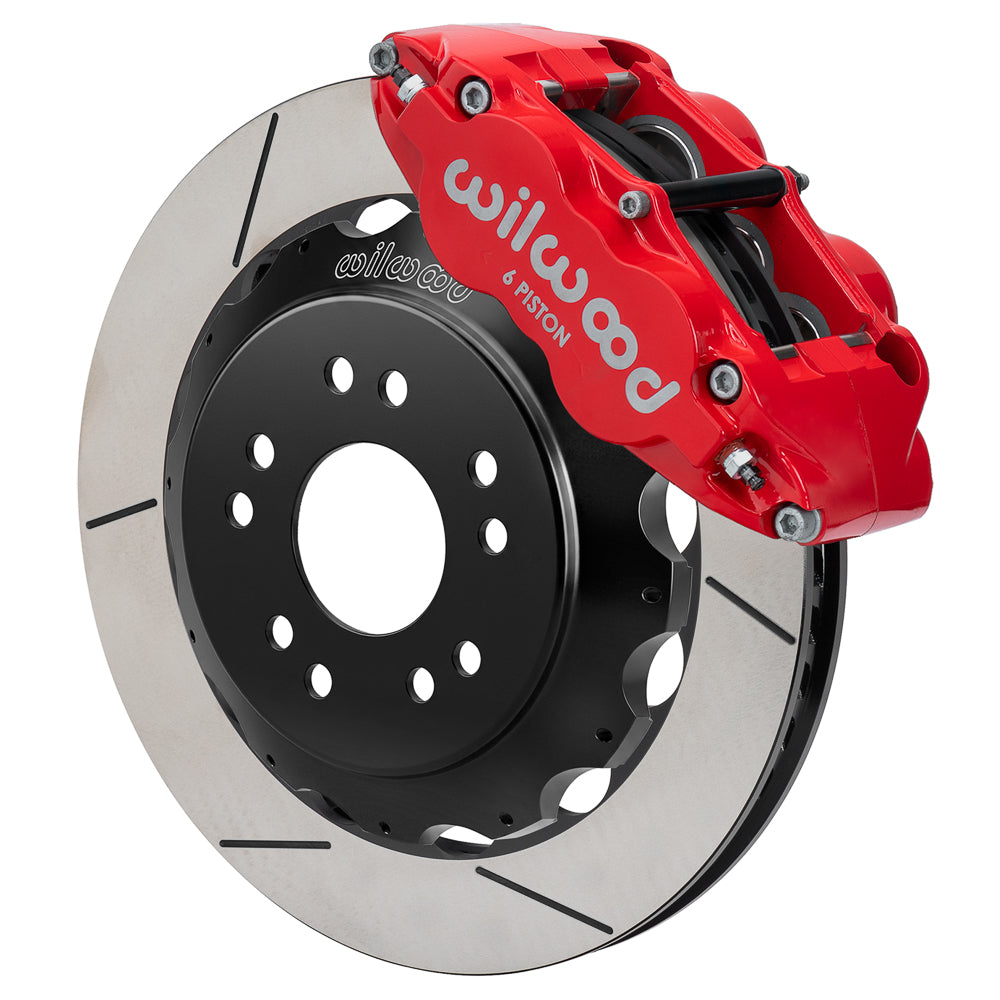

For a 1965–1982 Chevrolet Corvette C2/C3 retaining its original front hubs, this Wilwood package supplies red Superlite 6R calipers and 13.06-inch GT slotted rotors. Each caliper uses six differential-bore pistons. BP-20 pads work against the 1.25-inch-wide Spec-37 friction rings, which are secured to separate hats rather than supplied as replacement hubs. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10616-R
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)
• Calipers: Forged Narrow Superlite 6R; 6 pistons; Red Powder Coat.
• Bores: 1.75, 1.25, 1.25 inches. Pads: BP-20.
• Rotors: 13.06-inch diameter × 1.25-inch width; GT Slotted, Spec-37 Iron, Black Electro Coat. 48 curved vanes.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

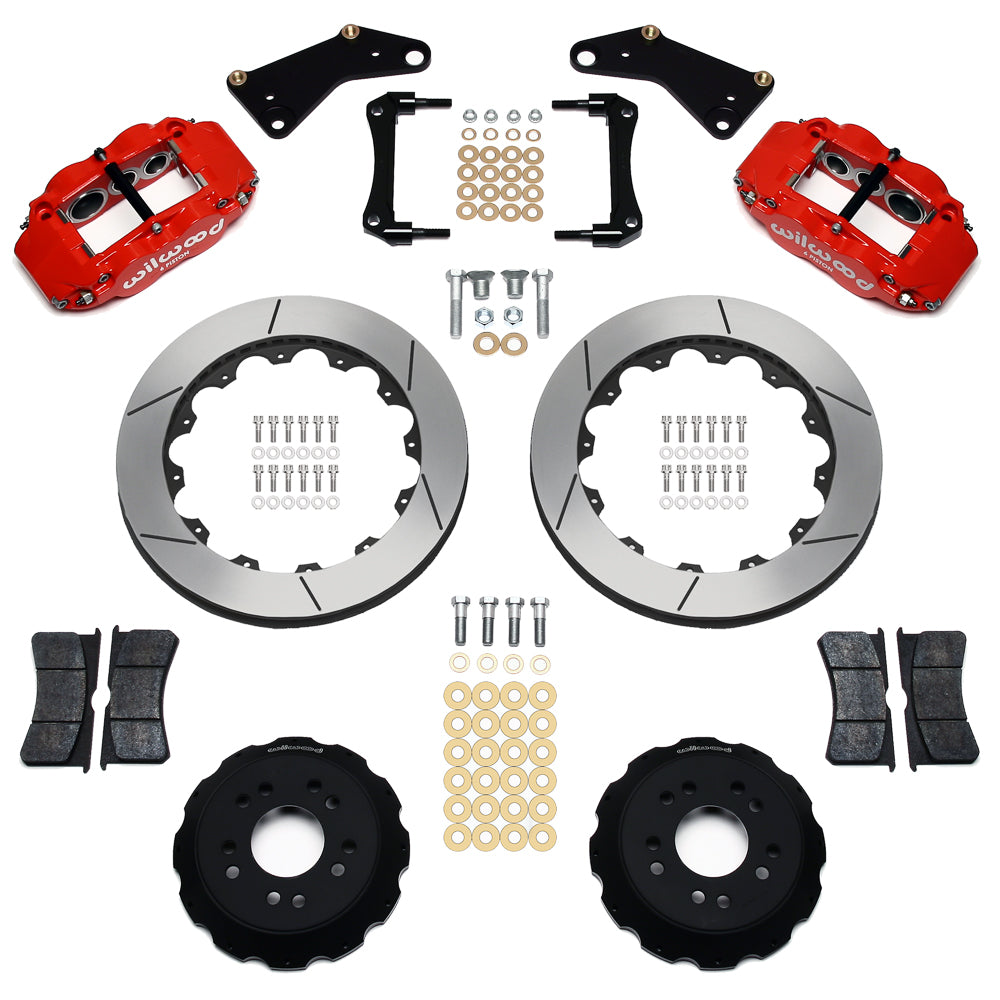

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Inspect spindle mounting faces, bearings and wheel studs before following DS626 for the rotor/hub separation and bracket shims. The rotor must run centrally between the pads. Confirm clearance behind the wheel spokes and around its barrel; hydraulic hoses require separate selection.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
