Wilwood Front Red Superlite SRP Brake Conversion, Corvette C2/C3 (1965–1982), 13.06-Inch

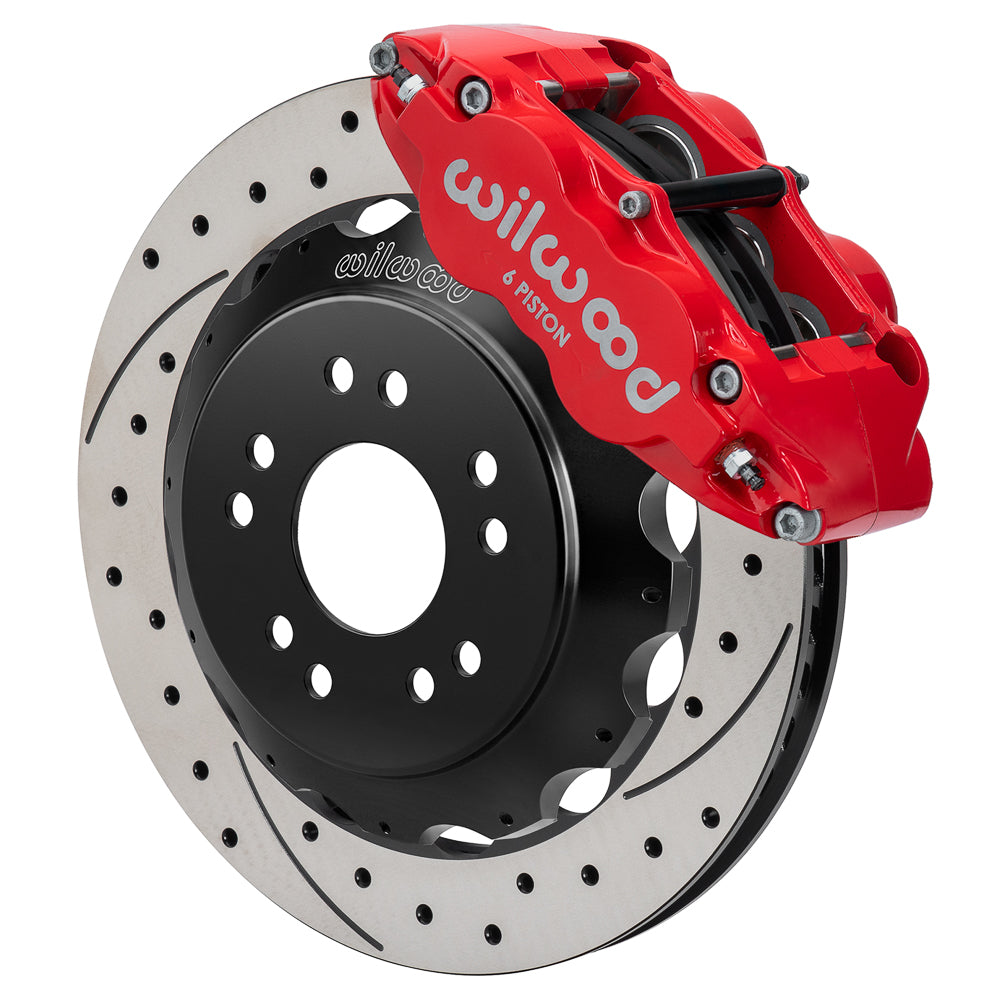

This red Wilwood Corvette kit combines six-piston Superlite calipers with 13.06-inch drilled/slotted rotors. The friction rings attach to separate hats for the original front hubs, with BP-10 pads specified for the selected package. It is a caliper/rotor conversion that retains the serviceable OE hub and spindle. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10616-DR
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)
• Calipers: Forged Narrow Superlite 6R; 6 pistons; Red Powder Coat.
• Bores: 1.75, 1.25, 1.25 inches. Pads: BP-10.
• Rotors: 13.06-inch diameter × 1.25-inch width; SRP Drilled & Slotted, Spec-37 Iron, Black Electro Coat. 48 curved vanes.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

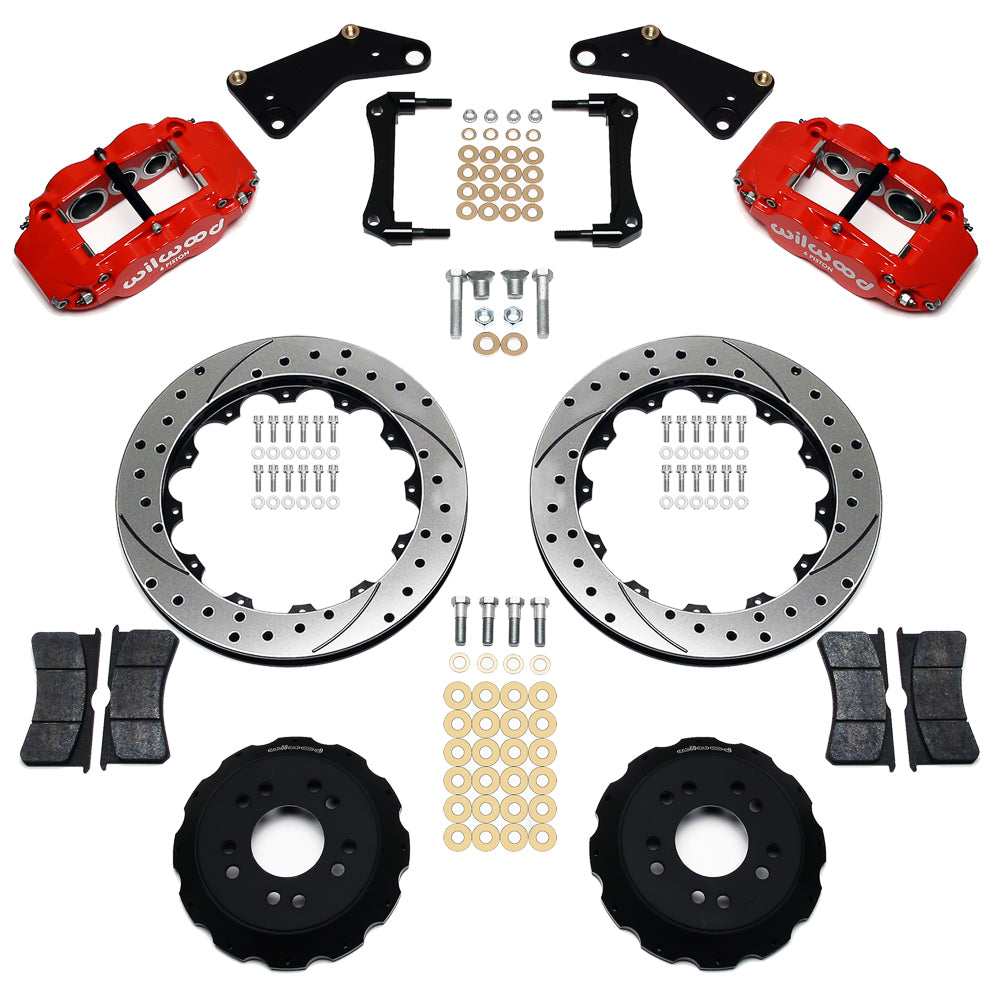

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Confirm the 1965–1982 C2/C3 arrangement and inspect the retained bearings and wheel studs. Use DS626 for bracket shims and rotor centering, including original rotor-to-hub separation where needed. Hydraulic flex lines are separate installation items. Check the complete wheel profile against the template before assembly, then verify hydraulic pedal travel and brake balance with the rear axle.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
