Wilwood Front Narrow Dynapro Drag Brake Kit for Ford Mustang (2005–2014), 11.75-Inch Plain Vented Rotors

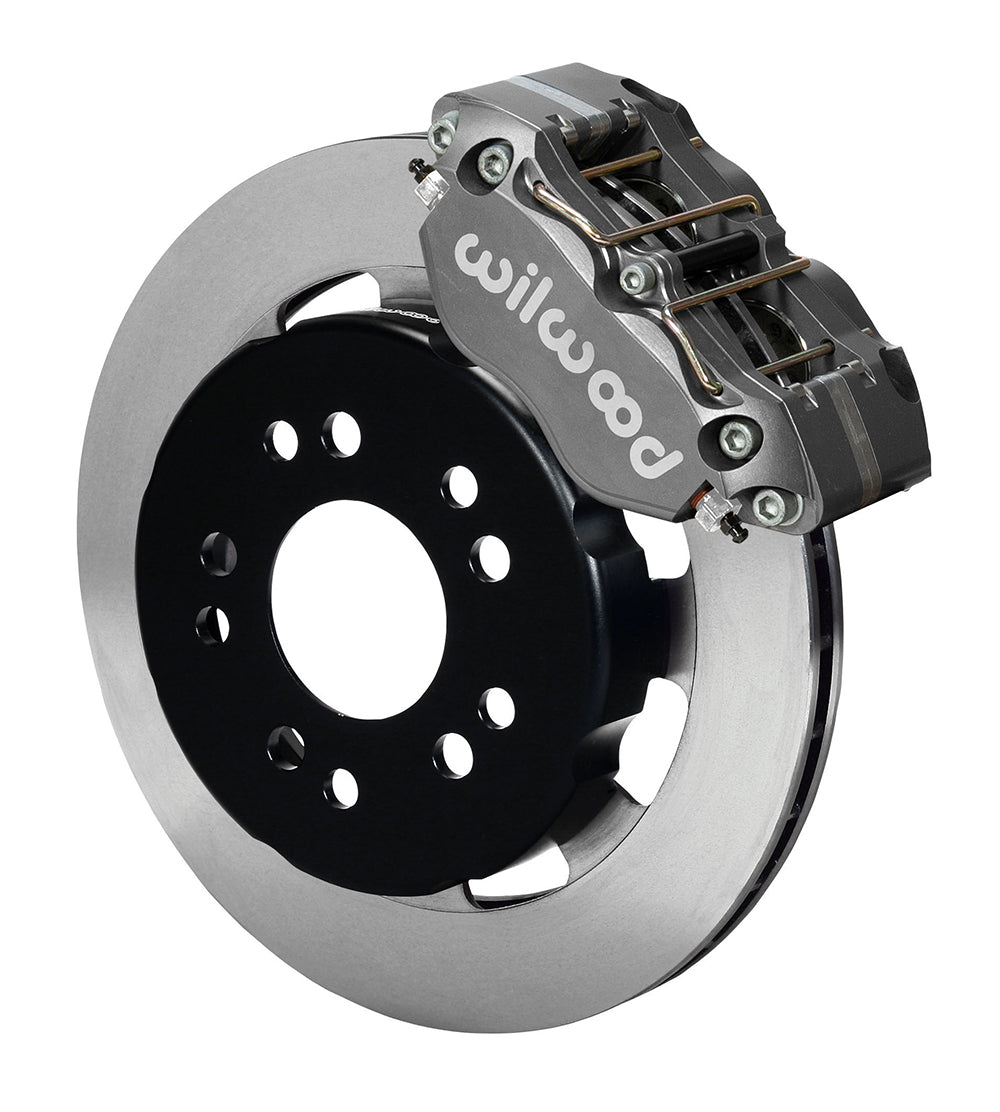

This Wilwood later-Mustang front drag kit uses anodized Narrow Dynapro calipers over plain 11.75-inch vented iron rotors. Four pistons apply BP-10 pads, and separate hats locate the 0.81-inch-wide friction rings. It retains the specified original hub arrangement rather than supplying replacement hubs. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10542
• Type: Dynapro Radial Front Pro-Street Brake Kit
• Calipers: Narrow Dynapro Radial Mount; 4 pistons; Type III Anodize.
• Bores: 1.75, 1.75 inches. Pads: BP-10.
• Rotors: 11.75-inch diameter × 0.81-inch width; Plain Face, Iron, Plain. 32 vanes.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

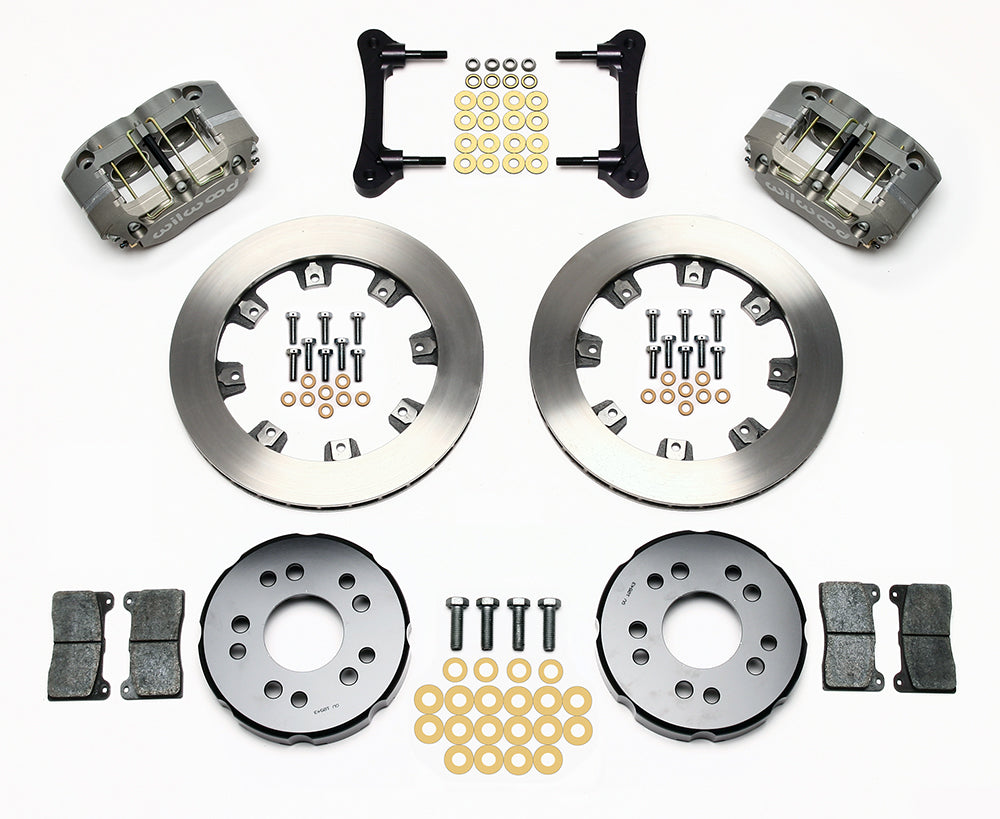

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.
• Application-use guidance: Pro Street / Drag Race. For Drag applications weighing in excess of 2800 lbs. Confirm vehicle weight and brake configuration with Wilwood for the completed installation.

Fitment & Compatibility

Confirm the exact 2005–2014 Mustang trim row and compare the factory disc spindle with DS623. The front brake package must be evaluated independently of the rear parking-brake hose notes that accompany some vehicle entries. Select the appropriate front hydraulic line arrangement separately. Verify wheel clearance using the drawing, and inspect pedal travel and brake balance for the completed competition setup.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
