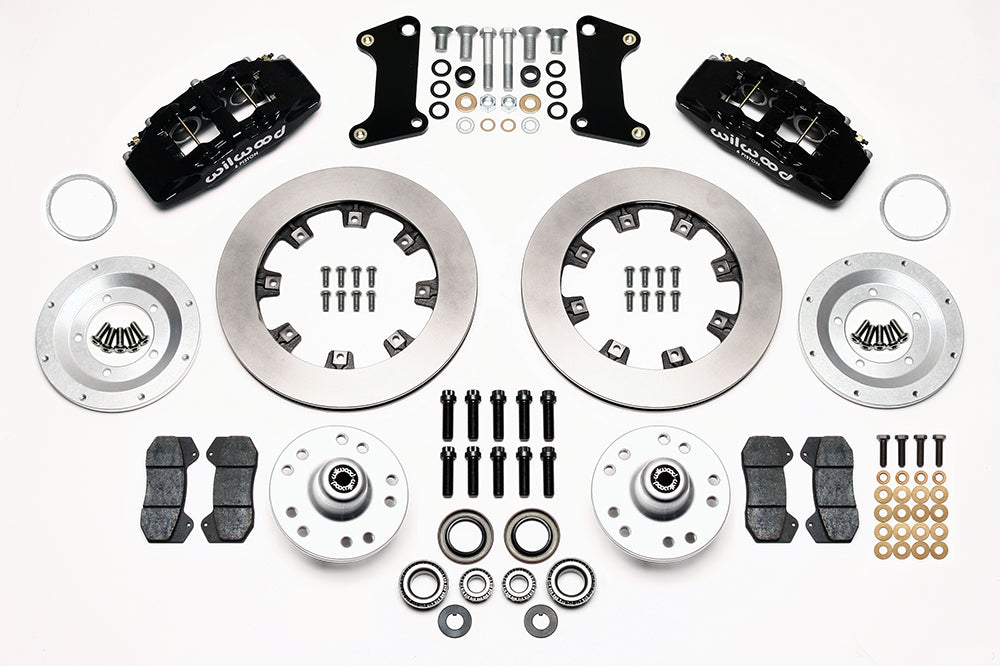

Wilwood front Dynapro 6 kit for GM/Ford pin-spindle six-piston setup: black calipers and 12.19-inch plain-face rotor pieces laid out

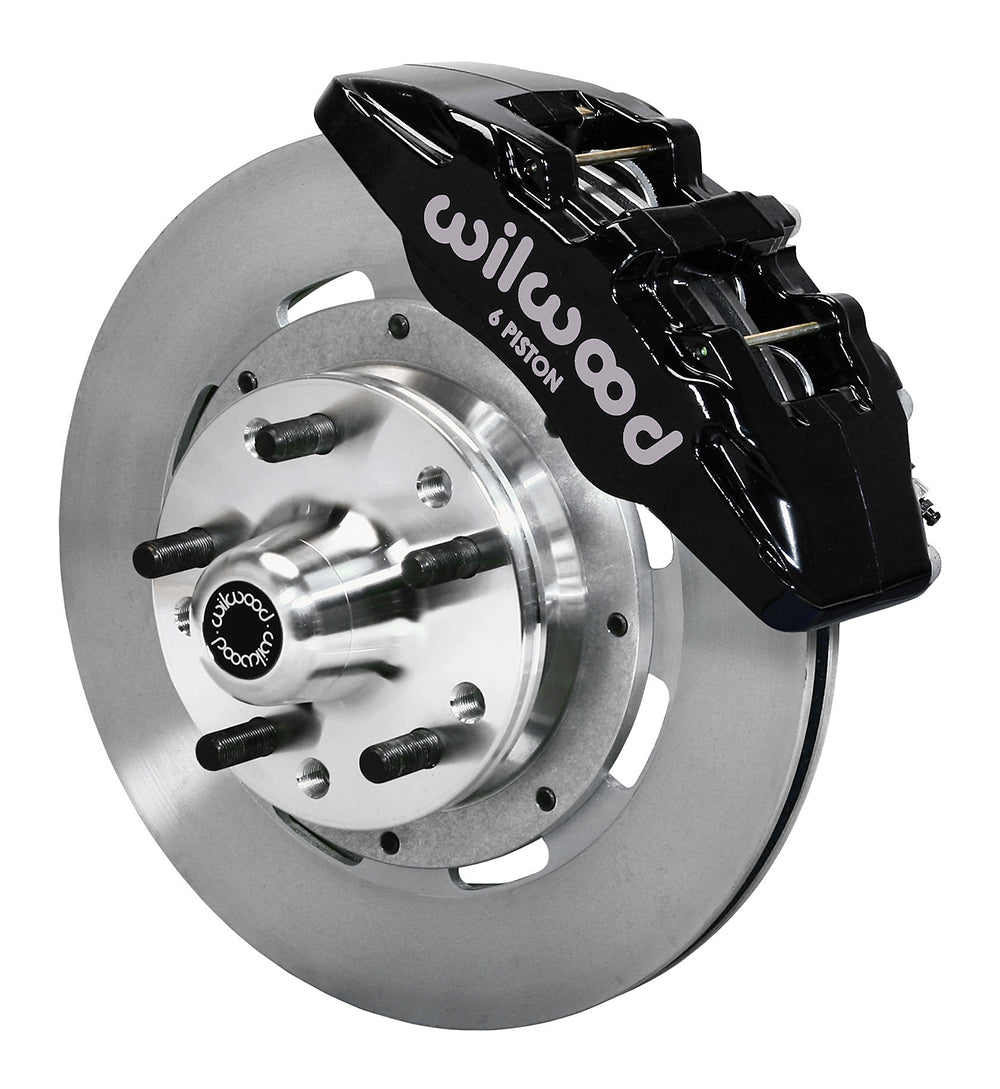

Wilwood front black Dynapro 6 caliper beside a 12.19-inch plain-face rotor, angled assembly for GM/Ford pin-spindle six-piston setup
Wilwood front Dynapro 6 kit for GM/Ford pin-spindle six-piston setup: black calipers and 12.19-inch plain-face rotor pieces laid out
Wilwood front black Dynapro 6 caliper beside a 12.19-inch plain-face rotor, angled assembly for GM/Ford pin-spindle six-piston setup

Wilwood Front Black Dynapro 6 Brake/Hub Conversion for GM/Ford/Mercury Spindle Applications (1960–1982), 12.19-Inch Plain

SKU: 140-10510

$1,348.33 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

This Wilwood front hub package uses black Dynapro 6 calipers and plain 12.19-inch vented rotors for the specified original and aftermarket spindle combinations. Six differential-bore pistons apply the pads, while replacement hubs carry the friction rings. The extensive model range includes several modified suspension arrangements. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

  • Manufacturer part number: 140-10510
  • Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hub)
  • Calipers: Dynapro 6; 6 pistons; Black Powder Coat.
  • Bores: 1.62, 1.38, 1.38 inches. Pads: BP-10.
  • Rotors: 12.19-inch diameter × 0.81-inch width; Plain Face, Iron, Plain. 32 vanes.
  • Wheel mounting change from OE: +.19 inches per side.
  • Hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
  • Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.
  • Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs.
  • Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
  • Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Check the individual car and spindle option in the application table, including original disc/drum and Ridetech pin-spindle conditions. DS617 provides the mounting and hub-bearing arrangement. Account for the +0.19-inch wheel mounting change when assessing tire position, and compare the actual wheel with the clearance drawing. Hydraulic lines are separate; existing master-cylinder compatibility depends on the completed system.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.

California Proposition 65 warning — brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1960-1965 Ford Falcon w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1960-1965 Mercury Comet w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1962-1967 Chevrolet Chevy II w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1963-1964 Chevrolet Corvette w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1964-1966 Buick Skylark All Drum Drum Front Kit 1, 2, 4, 5
1964-1972 Buick Skylark w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1964-1966 Buick Special All Drum Drum Front Kit 1, 2, 4, 5
1964-1969 Buick Special w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1964-1966 Buick Sportwagon All Drum Drum Front Kit 1, 4, 5
1964-1972 Buick Sportwagon w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1964-1965 Chevrolet Chevelle All Drum Drum Front Kit 1, 3, 4, 5
1964-1972 Chevrolet Chevelle w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1964-1965 Chevrolet Chevy II All Drum Drum Front Kit 1, 3, 4, 5
1964-1965 Chevrolet El Camino All Drum Drum Front Kit 1, 3, 4, 5
1964-1972 Chevrolet El Camino w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1964-1965 Chevrolet Malibu All Drum Drum Front Kit 1, 3, 4, 5
1964-1966 Ford Mustang w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1964-1966 Oldsmobile 442 All Drum Drum Front Kit 1, 2, 4, 5
1964-1971 Oldsmobile 442 w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1964-1966 Oldsmobile Cutlass All Drum Drum Front Kit 1, 2, 4, 5
1964-1972 Oldsmobile Cutlass w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1964-1966 Oldsmobile F85 All Drum Drum Front Kit 1, 2, 4, 5
1964-1972 Oldsmobile F85 w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1964-1966 Oldsmobile Vista Cruiser All Drum Drum Front Kit 1, 2, 4, 5
1964-1972 Oldsmobile Vista Cruiser w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1964 Pontiac Acadian All Drum Drum Front Kit 1, 2, 4, 5
1964 Pontiac Beaumont All Drum Drum Front Kit 1, 2, 4, 5
1964-1969 Pontiac Beaumont w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1964 Pontiac GTO All Drum Drum Front Kit 1, 2, 4, 5
1964-1972 Pontiac GTO w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1964 Pontiac LeMans All Drum Drum Front Kit 1, 2, 4, 5
1964-1972 Pontiac LeMans w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1964 Pontiac Tempest All Drum Drum Front Kit 1, 2, 4, 5
1964-1970 Pontiac Tempest w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1965-1967 Buick Gran Sport All Drum Drum Front Kit 1, 4, 5
1965-1967 Buick Gran Sport w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1965-1982 Chevrolet Corvette w/ Ridetech Pin Spindle Drop Disc Front Kit 1, 2, 3, 4, 5
1965-1979 Ford F-100 w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1965-1966 Pontiac Acadian All Drum Drum Front Kit 1, 4, 5
1965-1966 Pontiac Beaumont All Drum Drum Front Kit 1, 4, 5
1965-1966 Pontiac GTO All Drum Drum Front Kit 1, 4, 5
1965-1966 Pontiac LeMans All Drum Drum Front Kit 1, 4, 5
1965-1966 Pontiac Tempest All Drum Drum Front Kit 1, 4, 5
1966 Chevrolet Chevelle All Drum Drum Front Kit 1, 2, 3, 4, 5
1966 Chevrolet Chevy II All Drum Drum Front Kit 1, 2, 3, 4, 5
1966 Chevrolet El Camino All Drum Drum Front Kit 1, 2, 3, 4, 5
1966 Chevrolet Malibu All Drum Drum Front Kit 1, 2, 3, 4, 5
1967-1972 Buick Skylark Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5
1967-1970 Buick Skylark Drum Brake Spindle Drum Drum Front Kit 1, 2, 4, 5
1967-1969 Buick Special Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5
1967-1969 Buick Special Drum Brake Spindle Drum Drum Front Kit 1, 2, 4, 5
1967-1972 Buick Sportwagon Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5
1967-1970 Buick Sportwagon Drum Brake Front Drum Drum Front Kit 1, 4, 5
1967-1969 Chevrolet Camaro Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5
1967-1969 Chevrolet Camaro Drum Brake Front Drum Drum Front Kit 1, 2, 3, 4, 5
1967-1969 Chevrolet Camaro w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1967-1972 Chevrolet Chevelle Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5
1967-1972 Chevrolet Chevelle Drum Brake Front Drum Drum Front Kit 1, 2, 3, 4, 5
1967-1968 Chevrolet Chevy II Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5
1967-1968 Chevrolet Chevy II Drum Brake Front Drum Drum Front Kit 1, 2, 3, 4, 5
1967-1972 Chevrolet El Camino Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5
1967-1972 Chevrolet El Camino Drum Brake Spindle Drum Drum Front Kit 1, 2, 3, 4, 5
1967 Chevrolet Malibu Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5
1967 Chevrolet Malibu Drum Brake Front Drum Drum Front Kit 1, 2, 3, 4, 5
1967-1971 Oldsmobile 442 Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5
1967-1972 Oldsmobile Cutlass Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5
1967-1972 Oldsmobile Cutlass Drum Brake Spindle Drum Drum Front Kit 1, 2, 4, 5
1967-1972 Oldsmobile Cutlass Supreme Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5
1967-1972 Oldsmobile Cutlass Supreme Drum Brake Spindle Drum Drum Front Kit 1, 2, 4, 5
1967-1972 Oldsmobile Cutlass Supreme w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1967-1972 Oldsmobile F85 Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5
1967-1969 Oldsmobile F85 Drum Brake Spindle Drum Drum Front Kit 1, 2, 4, 5
1967-1972 Oldsmobile Vista Cruiser Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5
1967-1972 Oldsmobile Vista Cruiser Drum Brake Spindle Drum Drum Front Kit 1, 2, 4, 5
1967-1968 Pontiac Acadian Disc Brake Spindle Disc Drum Front Kit 1, 2, 4, 5
1967-1971 Pontiac Acadian Drum Brake Spindle Drum Drum Front Kit 1, 2, 4, 5
1967-1968 Pontiac Beaumont Disc Brake Spindle Disc Drum Front Kit 1, 2, 4, 5
1967-1969 Pontiac Beaumont Drum Brake Spindle Drum Drum Front Kit 1, 2, 4, 5
1967-1969 Pontiac Firebird Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5
1967-1969 Pontiac Firebird Drum Brake Spindle Drum Drum Front Kit 1, 2, 4, 5
1967-1969 Pontiac Firebird w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1967-1968 Pontiac GTO Disc Brake Spindle Disc Drum Front Kit 1, 2, 4, 5
1967-1971 Pontiac GTO Drum Brake Spindle Drum Drum Front Kit 1, 2, 4, 5
1967-1972 Pontiac LeMans Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5
1967-1972 Pontiac LeMans Drum Brake Spindle Drum Drum Front Kit 1, 2, 4, 5
1967-1970 Pontiac Tempest Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5
1967-1970 Pontiac Tempest Drum Brake Spindle Drum Drum Front Kit 1, 2, 4, 5
1968-1969 Buick GS 350 w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1968 Buick GS 350 Base Base Drum Drum Front Kit 1, 4, 5
1968-1969 Buick GS 400 w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1968 Buick GS 400 Base Base Drum Drum Front Kit 1, 4, 5
1968-1969 Chevrolet Camaro Z/28 w/ 4 Wheel Disc Disc Disc Front Kit 1, 2, 3, 4, 5
1969 Buick GS 350 Disc Brake Spindle Disc Drum Front Kit 1, 3, 4, 5
1969 Buick GS 350 Drum Brake Front Drum Drum Front Kit 1, 4, 5
1969 Buick GS 400 Disc Brake Spindle Disc Drum Front Kit 1, 3, 4, 5
1969 Buick GS 400 Drum Brake Front Drum Drum Front Kit 1, 4, 5
1969-1974 Chevrolet Nova Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5
1969-1974 Chevrolet Nova Drum Brake Front Drum Drum Front Kit 1, 2, 3, 4, 5
1969-1974 Chevrolet Nova w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1969-1971 Pontiac Acadian Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5
1969 Pontiac Beaumont Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5
1969-1972 Pontiac Grand Prix Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5
1969 Pontiac Grand Prix Drum Brake Spindle Drum Drum Front Kit 1, 2, 4, 5
1969-1972 Pontiac GTO Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5
1970-1972 Buick GS w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1970-1972 Buick GS Base Base Disc Drum Front Kit 1, 3, 4, 5
1970-1972 Buick GS 455 w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1970-1972 Buick GS 455 Base Base Disc Drum Front Kit 1, 3, 4, 5
1970-1972 Chevrolet Monte Carlo Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5
1970-1971 Oldsmobile 442 w/ O.A.I. Drum Brake Spindles Drum Drum Front Kit 1, 2, 3, 4, 5
1970-1972 Oldsmobile Cutlass w/ O.A.I. Drum Brake Spindles Drum Drum Front Kit 1, 2, 3, 4, 5
1970-1972 Oldsmobile Cutlass Supreme w/ O.A.I. Drum Brake Spindles Drum Drum Front Kit 1, 2, 3, 4, 5
1970-1972 Oldsmobile F85 Drum Brake Spindle w/o O.A.I Drum Drum Front Kit 1, 2, 4, 5
1970-1972 Oldsmobile F85 w/ O.A.I. Drum Brake Spindles Drum Drum Front Kit 1, 2, 3, 4, 5
1971-1972 GMC Sprint Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5
1971-1972 GMC Sprint Drum Brake Spindle Drum Drum Front Kit 1, 2, 3, 4, 5
1971-1972 GMC Sprint w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1971-1974 Pontiac Ventura Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5
1971-1974 Pontiac Ventura Drum Brake Front Drum Drum Front Kit 1, 2, 3, 4, 5
1971-1974 Pontiac Ventura w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1973-1974 Buick Apollo Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5
1973-1974 Buick Apollo Drum Brake Front Drum Drum Front Kit 1, 2, 3, 4, 5
1973-1974 Buick Apollo w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1973-1974 Oldsmobile Omega Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5
1973-1974 Oldsmobile Omega Drum Brake Front Drum Drum Front Kit 1, 2, 3, 4, 5
1973-1974 Oldsmobile Omega w/ Ridetech Pin Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
