Wilwood Front Red Superlite SRP Hub Conversion, Later GM 11-Inch Disc Spindles (1979–1990), 12.88-Inch

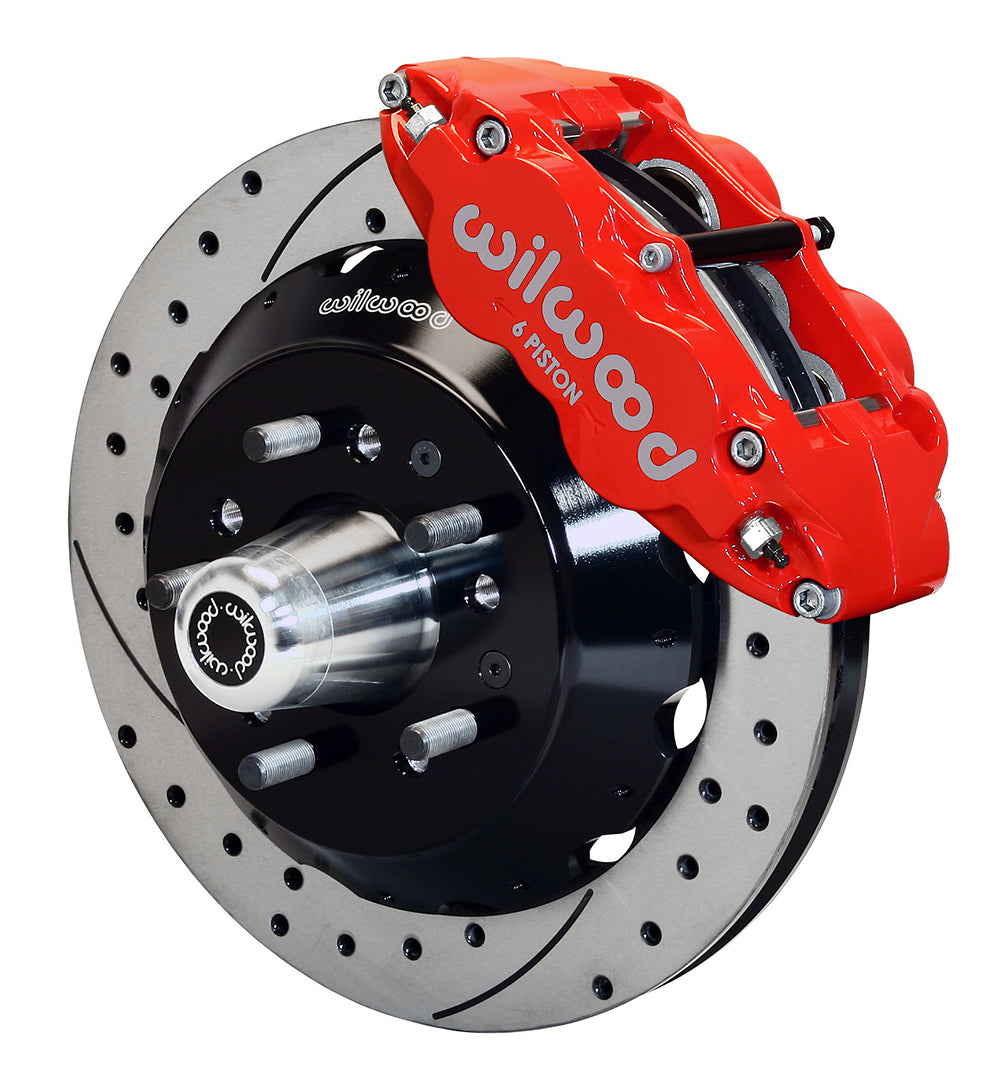

This red Wilwood front package combines six-piston Superlite calipers with 12.88-inch drilled/slotted rotors. The separate hats and replacement hubs suit the later GM disc spindle, with a +0.17-inch wheel mounting change. Its spindle configuration differs from the earlier GM kit despite the common brake diameter. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10492-DR
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
• Calipers: Forged Narrow Superlite 6R; 6 pistons; Red Powder Coat.
• Bores: 1.62, 1.12, 1.12 inches. Pads: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch width; SRP Drilled & Slotted, Spec-37 Iron, Black Electro Coat. 48 curved vanes.
• Wheel mounting change from OE: +.17 inches per side.
• Hubs: Hub - Hat Mount; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

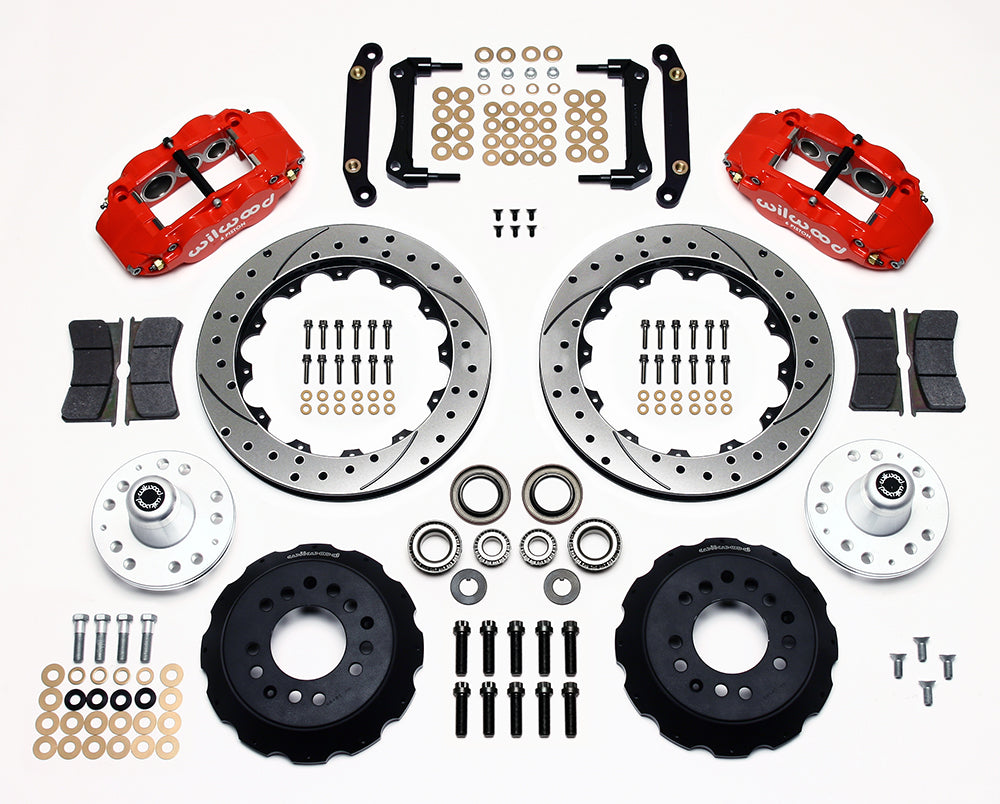

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Read the later-GM application individually: the listed Bonneville, Catalina and Firebird production windows are different from the Parisienne window. The correct OE 11-inch-rotor spindle is what links the mounting hardware. Use DS612 to prepare that spindle and align the radial brackets. The hub's +0.17-inch wheel-position change affects fender clearance, while caliper clearance depends on the drawing's full profile. Choose hydraulic end fittings and hose routing for the specific car before the completed system is tested.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
