Product details

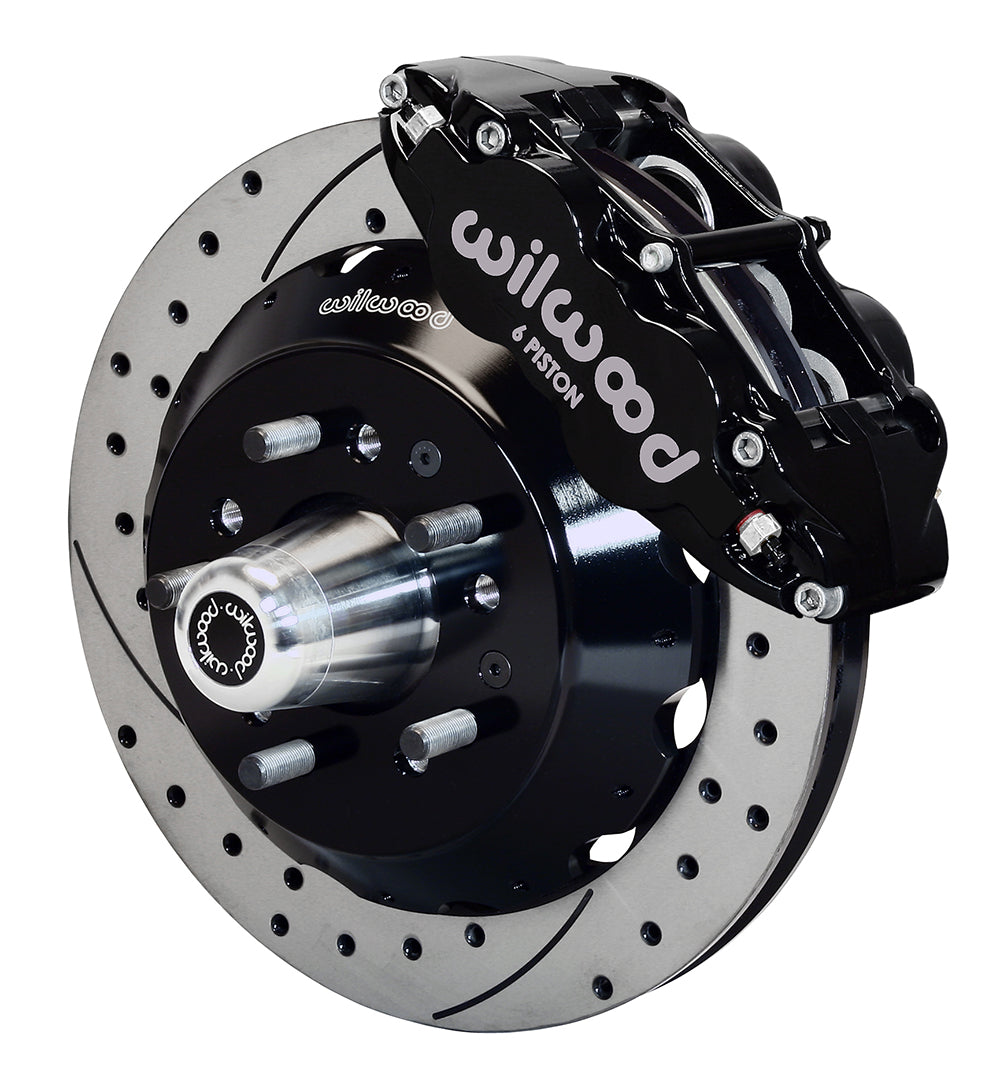

Black six-piston Superlite calipers and 14-inch drilled/slotted rotors make up this Wilwood GM front conversion. Replacement hubs and separate hats locate the vented Spec-37 friction rings on the specified disc spindle. A matching model name does not substitute for confirming that spindle's original rotor arrangement. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.
Technical Details
- Manufacturer part number: 140-10486-D
- Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
- Calipers: Forged Narrow Superlite 6R; 6 pistons; Black Powder Coat.
- Bores: 1.62, 1.12, 1.12 inches. Pads: BP-10.
- Rotors: 14.00-inch diameter × 1.10-inch width; SRP Drilled & Slotted, Spec-37 Iron, Black Electro Coat. 72 curved vanes.
- Wheel mounting change from OE: .00 inches per side.
- Hubs: Hub - Hat Mount; Aluminum; Bare.
- Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

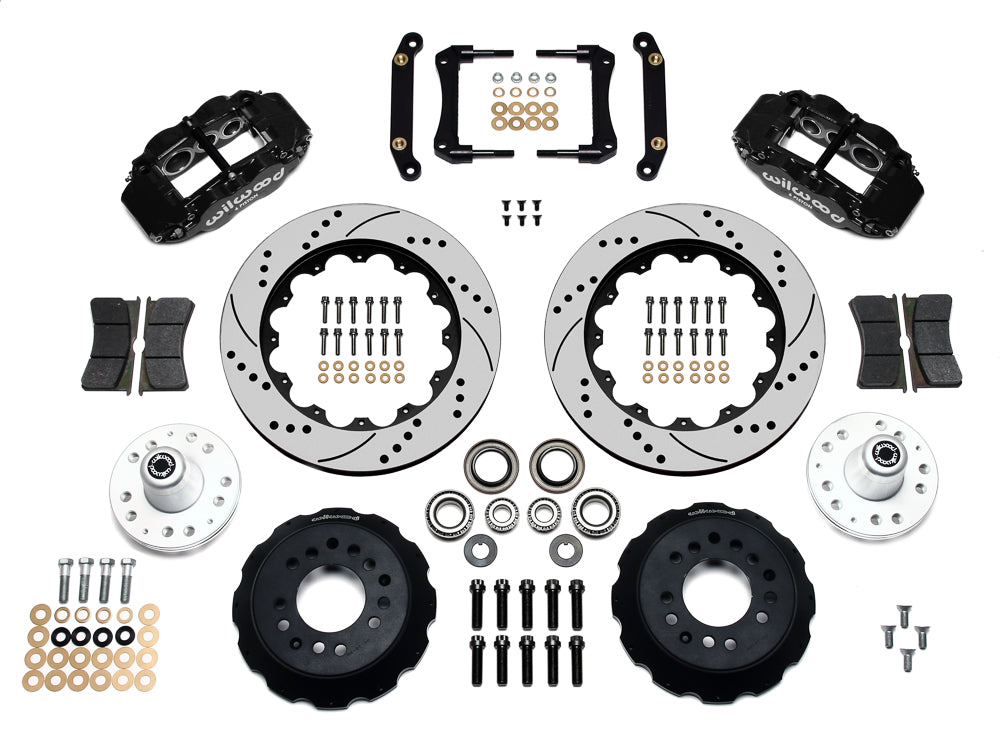

- Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs, rotor hats.
- Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
- Conditional wheel minimum: 18 inches. Check the clearance drawing for barrel and spoke offset.
Fitment & Compatibility
Check the applicable GM row and the OE 11-inch-rotor spindle before installation. DS611 details the required spindle modifications and alignment procedure. Wheel clearance must be checked with the diagram for this 14-inch package, including spoke depth. Hydraulic flex lines are separate, while the existing master cylinder should be assessed for system displacement and brake balance.
Match the individual model, year, submodel and brake configuration in the fitment table below.
PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
California Proposition 65 warning — brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1970-1977 | Chevrolet | Camaro | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6, 7 |
| 1970-1976 | Pontiac | Firebird | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6, 7 |
| 1973-1977 | Buick | Century | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6, 7 |
| 1973-1977 | Buick | Regal | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6, 7 |
| 1973 | Chevrolet | Chevelle | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6, 7 |
| 1973-1977 | Chevrolet | El Camino | All | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6, 7 |
| 1973-1977 | Chevrolet | Malibu | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6, 7 |
| 1973-1977 | Chevrolet | Monte Carlo | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6, 7 |
| 1973-1977 | GMC | Sprint | All | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6, 7 |
| 1973-1977 | Oldsmobile | Cutlass | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6, 7 |
| 1973, 1977 | Oldsmobile | Cutlass Supreme | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6, 7 |
| 1973-1975 | Oldsmobile | Vista Cruiser | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6, 7 |
| 1973-1975 | Pontiac | Grand Am | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 6, 7 |
| 1973-1976 | Pontiac | Grand Prix | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6, 7 |
| 1973 | Pontiac | GTO | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 6, 7 |
| 1973-1976 | Pontiac | LeMans | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6, 7 |
| 1974-1976 | Oldsmobile | Cutlass Supreme | All | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6, 7 |
| 1975 | Buick | Apollo | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6, 7 |
| 1975-1977 | Buick | Skylark | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6, 7 |
| 1975-1977 | Chevrolet | Nova | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6, 7 |
| 1975-1976 | Oldsmobile | Omega | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6, 7 |
| 1975-1976 | Pontiac | Ventura | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6, 7 |
| 1976 | Cadillac | Seville | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6, 7 |
| 1977 | Buick | Estate Wagon | With OE 11" Rotor Spindles | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6, 7 |
| 1977 | Buick | LeSabre | With OE 11" Rotor Spindles | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6, 7 |
| 1977 | Chevrolet | Impala | With OE 11" Rotor Spindles | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6, 7 |
| 1977-1978 | Oldsmobile | Custom Cruiser | With OE 11" Rotor Spindles | Disc | Drum | Front Kit | 1, 2, 3, 5, 6, 7 |
| 1977-1978 | Oldsmobile | Delta 88 | With OE 11" Rotor Spindles | Disc | Drum | Front Kit | 1, 2, 3, 5, 6, 7 |
| 1977-1978 | Oldsmobile | Omega | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 5, 6, 7 |
| 1977-1978 | Pontiac | Bonneville | With OE 11" Rotor Spindles | Disc | Drum | Front Kit | 1, 2, 3, 5, 6, 7 |
| 1977-1978 | Pontiac | Catalina | With OE 11" Rotor Spindles | Disc | Drum | Front Kit | 1, 2, 3, 5, 6, 7 |
| 1977-1978 | Pontiac | Firebird | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 5, 6, 7 |
| 1977 | Pontiac | Grand Prix | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 5, 6, 7 |
| 1977 | Pontiac | LeMans | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 5, 6, 7 |
| 1977-1978 | Pontiac | Phoenix | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 5, 6, 7 |
| 1977 | Pontiac | Ventura | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 5, 6, 7 |
| 1978 | Buick | Estate Wagon | With OE 11" Rotor Spindles | Disc | Drum | Front Kit | 1, 2, 3, 5, 6, 7 |
| 1978 | Buick | LeSabre | With OE 11" Rotor Spindles | Disc | Drum | Front Kit | 1, 2, 3, 5, 6, 7 |
| 1978 | Buick | Skylark | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 5, 6, 7 |
| 1978 | Chevrolet | Camaro | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 5, 6, 7 |
| 1978 | Chevrolet | Impala | With OE 11" Rotor Spindles | Disc | Drum | Front Kit | 1, 2, 3, 5, 6, 7 |
| 1978 | Chevrolet | Nova | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 5, 6, 7 |
