Product details

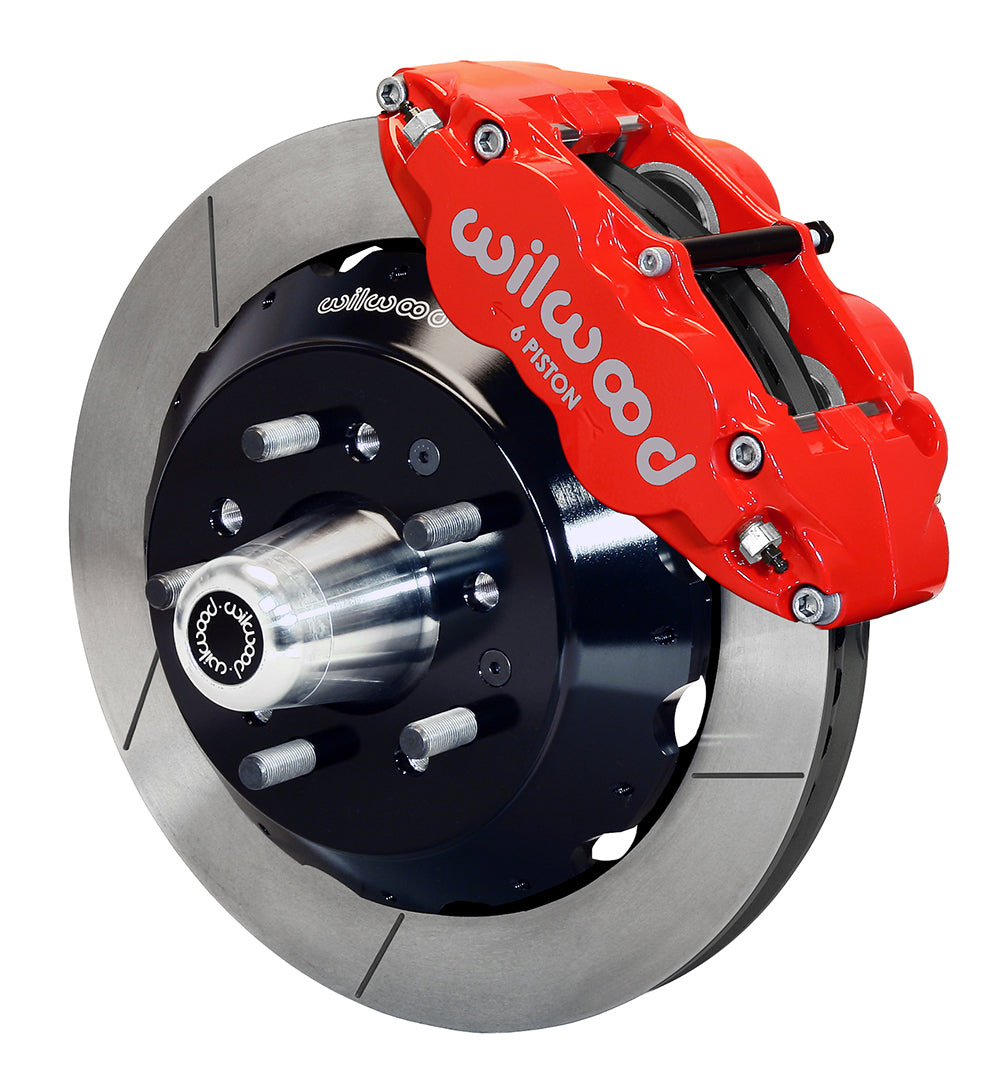

Red Superlite six-piston calipers clamp GT slotted 12.88-inch rotors in this Wilwood front hub kit. Separate hats and aluminum replacement hubs are supplied for the specified GM disc-spindle arrangement. The conversion retains the original spindle after preparation and uses its stated OE wheel-position reference. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.
Technical Details
- Manufacturer part number: 140-10485-R
- Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
- Calipers: Forged Narrow Superlite 6R; 6 pistons; Red Powder Coat.
- Bores: 1.62, 1.12, 1.12 inches. Pads: BP-10.
- Rotors: 12.88-inch diameter × 1.10-inch width; GT Slotted, Spec-37 Iron, Black Electro Coat. 48 curved vanes.
- Wheel mounting change from OE: .00 inches per side.
- Hubs: Hub - Hat Mount; Aluminum; Bare.
- Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

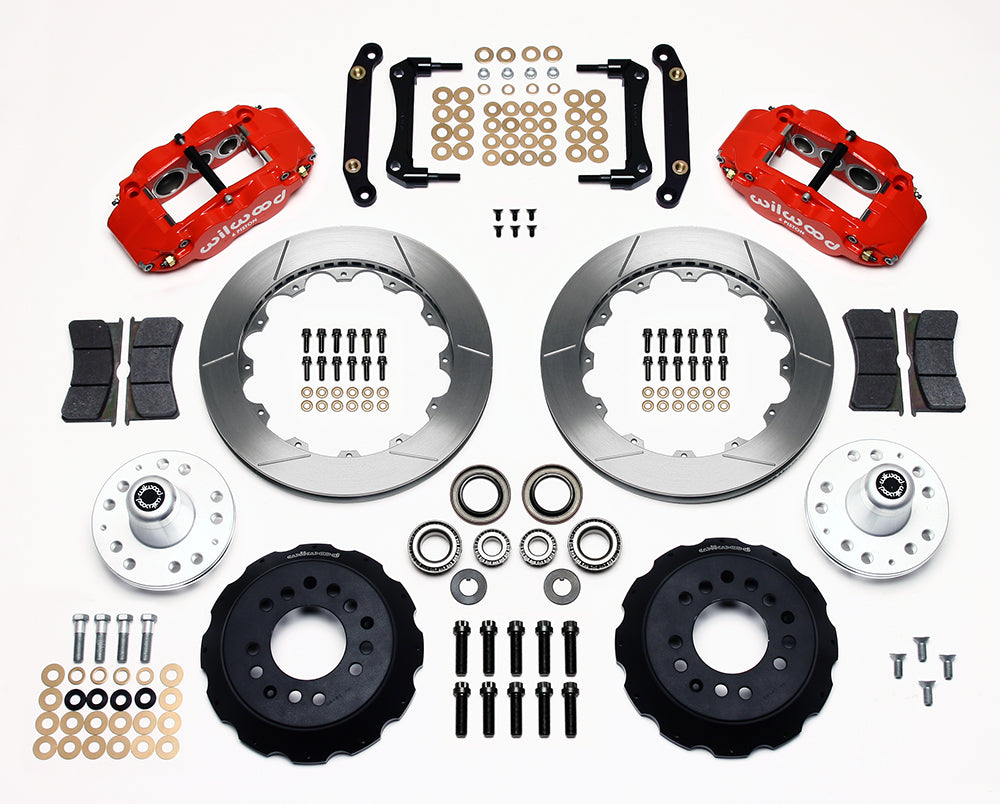

- Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs, rotor hats.
- Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
- Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.
Fitment & Compatibility
Identify the original 11-inch rotor spindle and match the vehicle's model/year row before ordering. DS610 describes the necessary spindle modifications and caliper alignment. Provide hydraulic lines with the proper fittings and routing for the car. Check the full wheel drawing because a nominally unchanged offset does not establish clearance for the new caliper body.
Match the individual model, year, submodel and brake configuration in the fitment table below.
PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
California Proposition 65 warning — brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1970-1977 | Chevrolet | Camaro | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1970-1976 | Pontiac | Firebird | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1973-1977 | Buick | Century | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1973-1977 | Buick | Regal | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1973 | Chevrolet | Chevelle | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1973-1977 | Chevrolet | El Camino | All | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1973-1977 | Chevrolet | Malibu | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1973-1977 | Chevrolet | Monte Carlo | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1973-1977 | GMC | Sprint | All | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1973-1977 | Oldsmobile | Cutlass | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1973, 1977 | Oldsmobile | Cutlass Supreme | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1973-1975 | Oldsmobile | Vista Cruiser | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1973-1975 | Pontiac | Grand Am | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 5, 6 |
| 1973-1976 | Pontiac | Grand Prix | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1973 | Pontiac | GTO | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 5, 6 |
| 1973-1976 | Pontiac | LeMans | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1974-1976 | Oldsmobile | Cutlass Supreme | All | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1975 | Buick | Apollo | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1975-1977 | Buick | Skylark | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1975-1977 | Chevrolet | Nova | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1975-1976 | Oldsmobile | Omega | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1975-1976 | Pontiac | Ventura | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1976 | Cadillac | Seville | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1977 | Buick | Estate Wagon | With OE 11" Rotor Spindles | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1977 | Buick | LeSabre | With OE 11" Rotor Spindles | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1977 | Chevrolet | Impala | With OE 11" Rotor Spindles | Disc | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1977-1978 | Oldsmobile | Custom Cruiser | With OE 11" Rotor Spindles | Disc | Drum | Front Kit | 1, 2, 4, 5, 6 |
| 1977-1978 | Oldsmobile | Delta 88 | With OE 11" Rotor Spindles | Disc | Drum | Front Kit | 1, 2, 4, 5, 6 |
| 1977-1978 | Oldsmobile | Omega | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 4, 5, 6 |
| 1977-1978 | Pontiac | Bonneville | With OE 11" Rotor Spindles | Disc | Drum | Front Kit | 1, 2, 4, 5, 6 |
| 1977-1978 | Pontiac | Catalina | With OE 11" Rotor Spindles | Disc | Drum | Front Kit | 1, 2, 4, 5, 6 |
| 1977-1978 | Pontiac | Firebird | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 4, 5, 6 |
| 1977 | Pontiac | Grand Prix | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 4, 5, 6 |
| 1977 | Pontiac | LeMans | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 4, 5, 6 |
| 1977-1978 | Pontiac | Phoenix | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 4, 5, 6 |
| 1977 | Pontiac | Ventura | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 4, 5, 6 |
| 1978 | Buick | Estate Wagon | With OE 11" Rotor Spindles | Disc | Drum | Front Kit | 1, 2, 4, 5, 6 |
| 1978 | Buick | LeSabre | With OE 11" Rotor Spindles | Disc | Drum | Front Kit | 1, 2, 4, 5, 6 |
| 1978 | Buick | Skylark | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 4, 5, 6 |
| 1978 | Chevrolet | Camaro | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 4, 5, 6 |
| 1978 | Chevrolet | Impala | With OE 11" Rotor Spindles | Disc | Drum | Front Kit | 1, 2, 4, 5, 6 |
| 1978 | Chevrolet | Nova | Disc Brake Spindle | Disc | Drum | Front Kit | 1, 2, 4, 5, 6 |
