Wilwood Front Black 12.88-Inch SRP Conversion, GM Passenger-Car Disc Spindles (1970–1978), Hub Kit

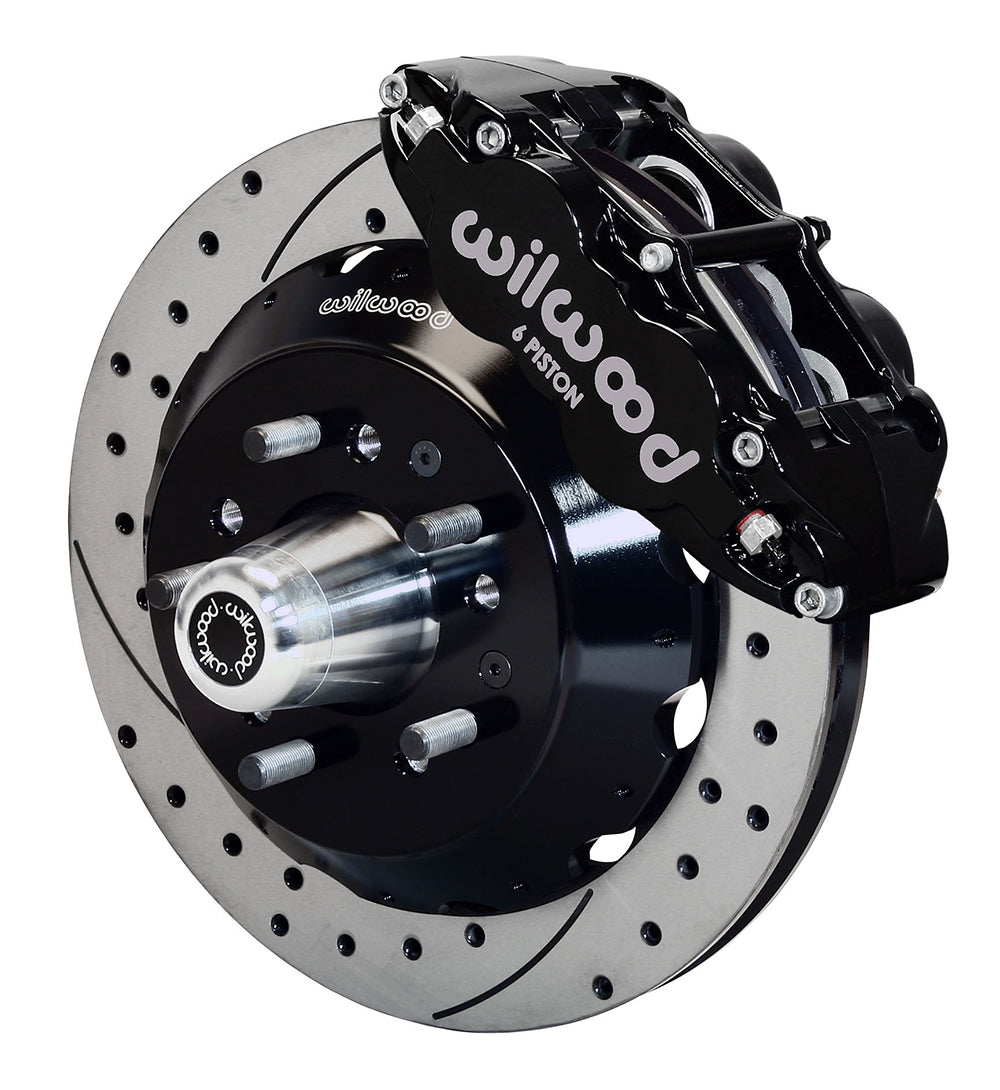

Black Superlite 6R calipers and drilled/slotted 12.88-inch rotors distinguish this Wilwood front hub package. The mounting arrangement is based on the original GM 11-inch-rotor disc spindle. Aluminum hubs and separate hats replace the friction mounting components, while the spindle is retained after the required preparation. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10485-D
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
• Calipers: Forged Narrow Superlite 6R; 6 pistons; Black Powder Coat.
• Bores: 1.62, 1.12, 1.12 inches. Pads: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch width; SRP Drilled & Slotted, Spec-37 Iron, Black Electro Coat. 48 curved vanes.
• Wheel mounting change from OE: .00 inches per side.
• Hubs: Hub - Hat Mount; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

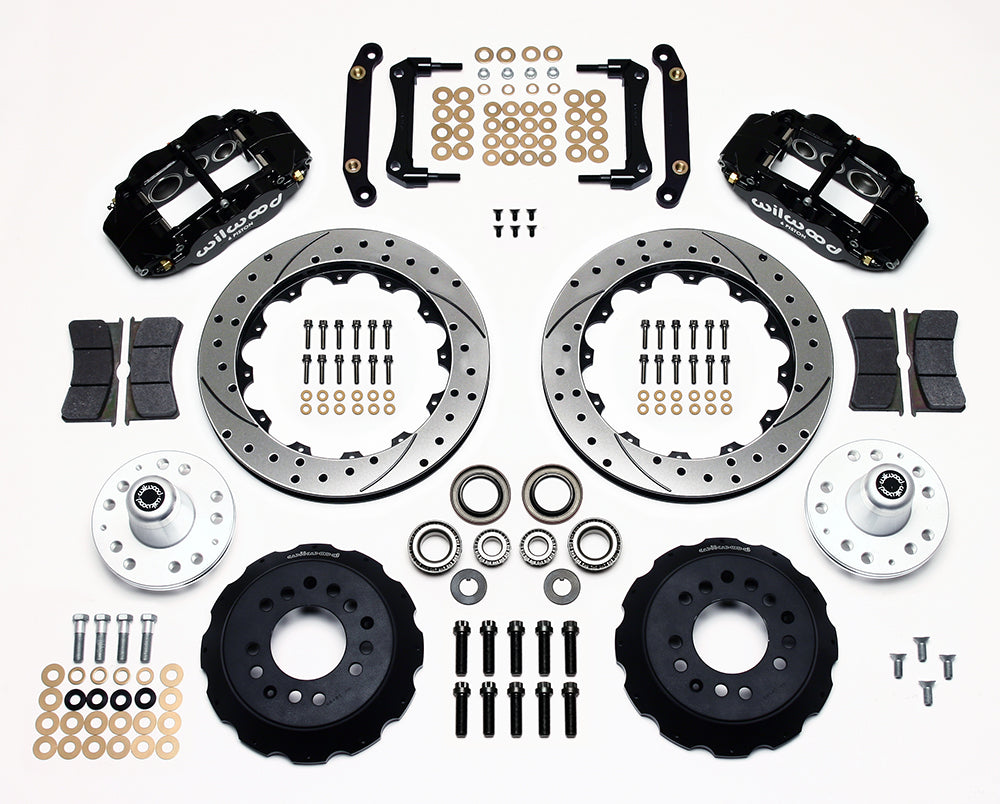

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Read the individual GM application row and verify the original spindle rather than assuming all factory disc brakes share its geometry. Follow DS610 for modifications and shimming. Check the replacement hub's bearings, bolt circle and register, then supply suitable hydraulic hoses. Verify actual wheel radius and spoke clearance even though the published mounting offset change is zero.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
