Wilwood Rear Red Superlite GT Kit, Corvette C2/C3 (1965–1982), 14-Inch Rotors and Original Parking Shoes

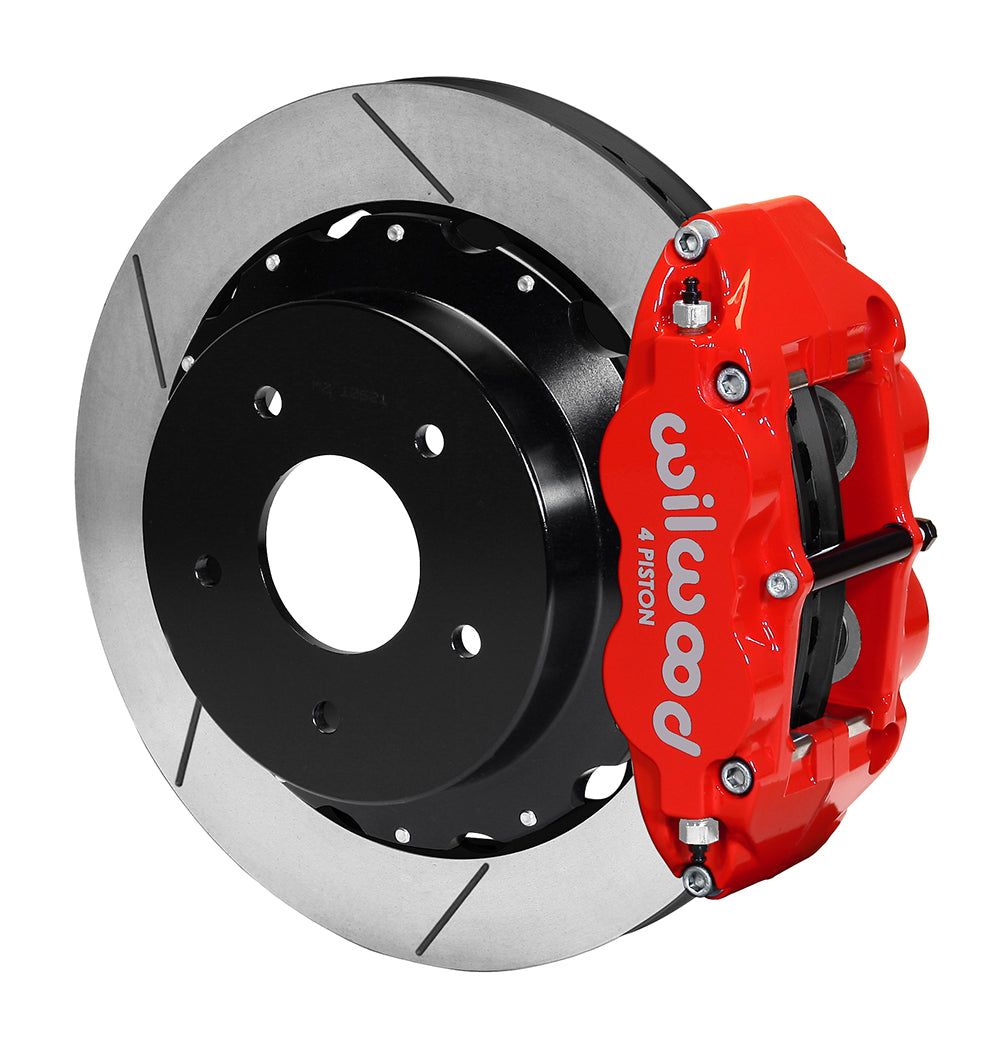

Red Superlite calipers and 14-inch GT slotted rotors form this Wilwood rear Corvette package. The selected GT variant specifies BP-20 pads, while its rotor hats retain the original mechanical parking-brake arrangement. Hub and parking-shoe condition therefore remain relevant even when the hydraulic components are renewed. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10472-R
• Type: Forged Narrow Superlite 4R Big Brake Rear Brake Kit For OE Parking Brake
• Calipers: Forged Narrow Superlite 4R; 4 pistons; Red Powder Coat.
• Bores: 1.38, 1.38 inches. Pads: BP-20.
• Rotors: 14.00-inch diameter × 1.10-inch width; GT Slotted, Spec-37 Iron, Black Electro Coat. 72 curved vanes.
• Wheel bolt circles: 5 x 4.75 inches.

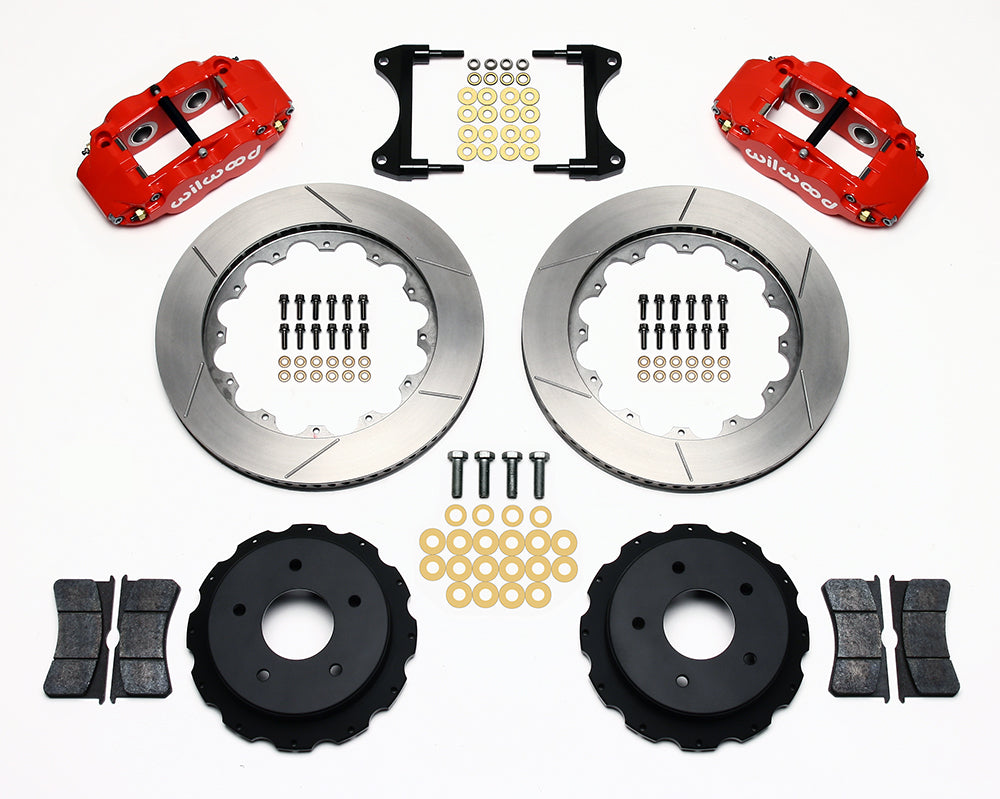

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 18 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Check the 1965–1982 C2/C3 axle flange and wheel-stud pattern against the hat before installation. Inspect and adjust the existing parking shoes as directed in DS625, then verify suspension clearance around the caliper and end-link fasteners. Hydraulic hoses are separate. The wheel must clear the actual brake profile in radius and depth; an 18-inch marking alone does not prove compatibility.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
