Wilwood Rear Red 14-Inch Drilled/Slotted Brake Kit, Chevrolet Corvette C2/C3 (1965–1982), OE Parking Brake

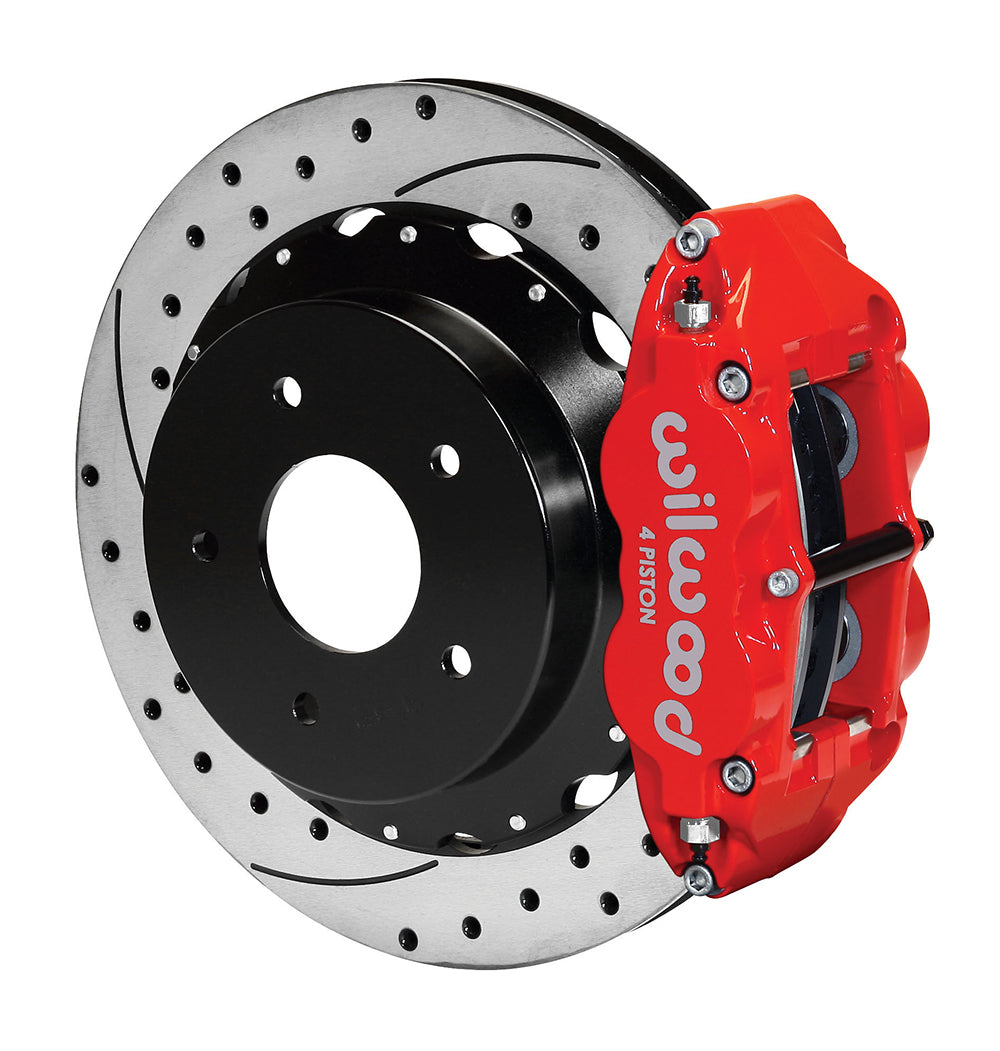

This Wilwood Corvette rear kit combines red four-piston Superlite calipers with 14-inch drilled/slotted Spec-37 rotors. The hats accommodate the original internal parking-brake shoes, and the selected kit uses BP-10 pads for hydraulic service braking. It does not replace the retained rear hub or parking mechanism. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10472-DR
• Type: Forged Narrow Superlite 4R Big Brake Rear Brake Kit For OE Parking Brake
• Calipers: Forged Narrow Superlite 4R; 4 pistons; Red Powder Coat.
• Bores: 1.38, 1.38 inches. Pads: BP-10.
• Rotors: 14.00-inch diameter × 1.10-inch width; SRP Drilled & Slotted, Spec-37 Iron, Black Electro Coat. 72 curved vanes.
• Wheel bolt circles: 5 x 4.75 inches.

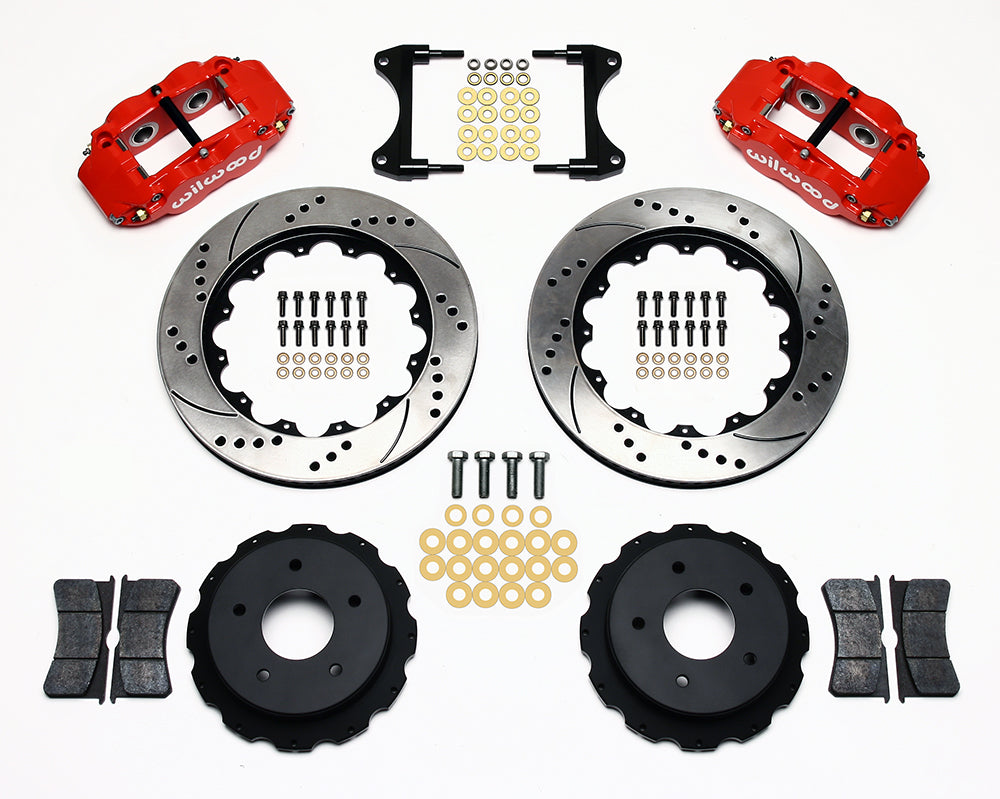

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 18 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Confirm the C2/C3 original axle-stud pattern and parking-shoe dimensions before assembly. Follow DS625 to center the rotor within the caliper and check the suspension fasteners for interference. The larger rotor requires the correct wheel template, including spoke depth behind the caliper. Select rear flex lines separately and verify parking adjustment and hydraulic pedal travel before testing.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
