Wilwood Rear Black 14-Inch SRP Superlite Kit for Corvette C2/C3 (1965–1982), Retains OE Parking System

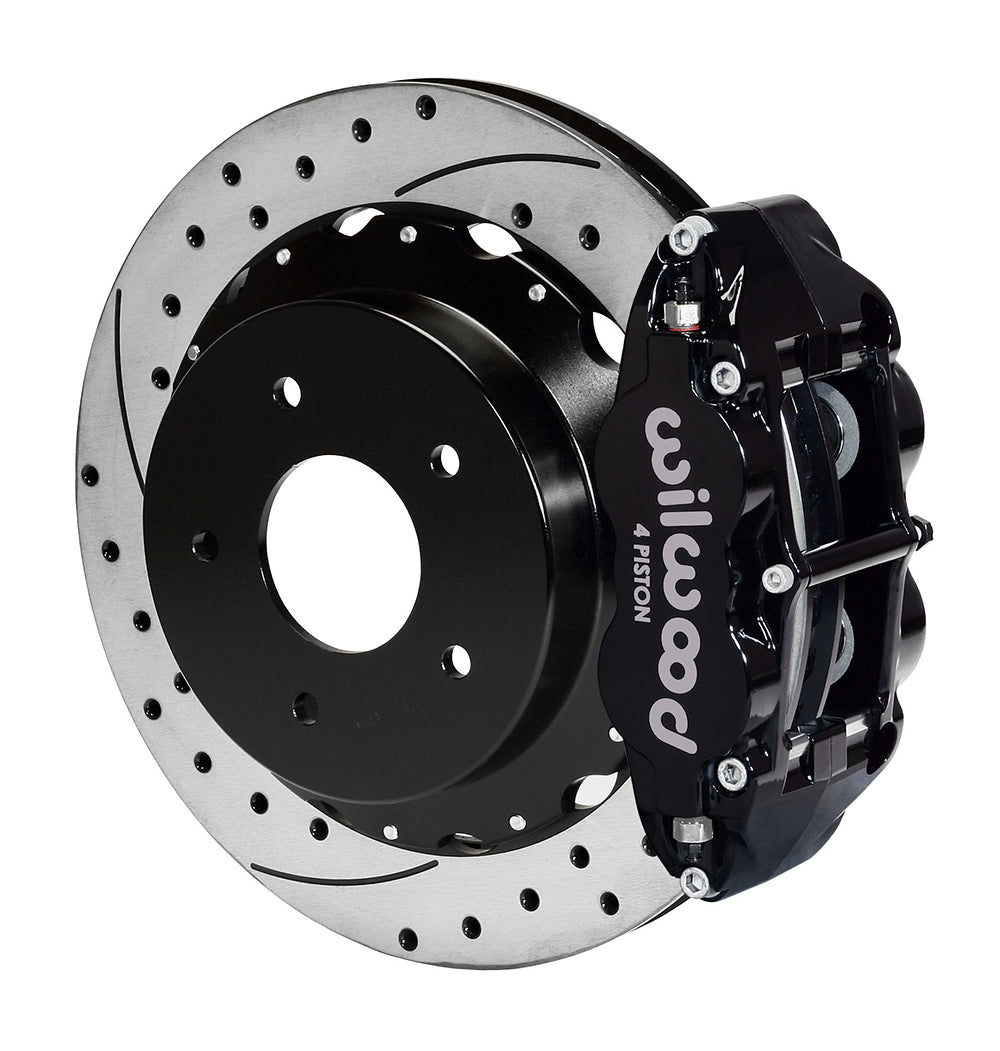

Drilled/slotted 14-inch rotors and black Superlite calipers make up this Wilwood Corvette rear conversion. BP-10 pads distinguish the selected SRP package from the GT rotor variant. Separate rotor hats preserve the original drum parking function, provided the retained shoes and hub assembly are serviceable. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10472-D
• Type: Forged Narrow Superlite 4R Big Brake Rear Brake Kit For OE Parking Brake
• Calipers: Forged Narrow Superlite 4R; 4 pistons; Black Powder Coat.
• Bores: 1.38, 1.38 inches. Pads: BP-10.
• Rotors: 14.00-inch diameter × 1.10-inch width; SRP Drilled & Slotted, Spec-37 Iron, Black Electro Coat. 72 curved vanes.
• Wheel bolt circles: 5 x 4.75 inches.

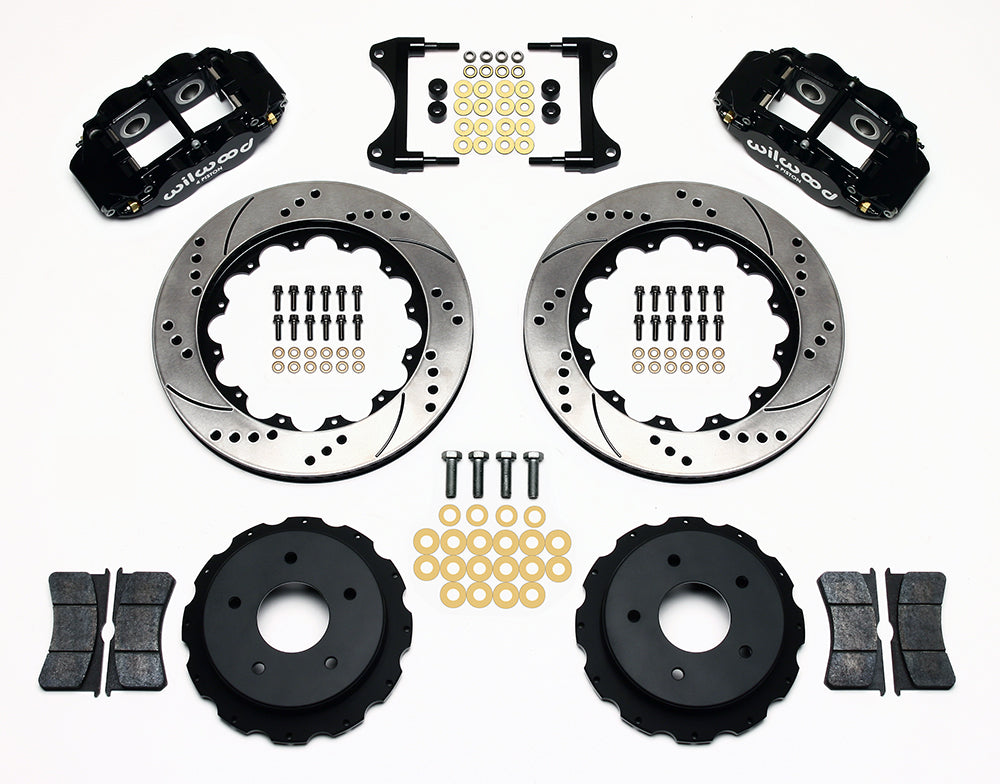

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 18 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Inspect the 1965–1982 Corvette rear hub and parking components before fitting the hats. Changed axle studs or bolt patterns may require qualified machining rather than forced assembly. DS625 provides the bracket-shim procedure and suspension clearance checks. Hydraulic lines are not supplied. Compare both the wheel barrel and inner spoke face with the drawing for this larger rotor package.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
