Wilwood Rear Red Superlite SRP Conversion, Chevrolet Corvette C2/C3 (1965–1982), 12.88-Inch Rotors

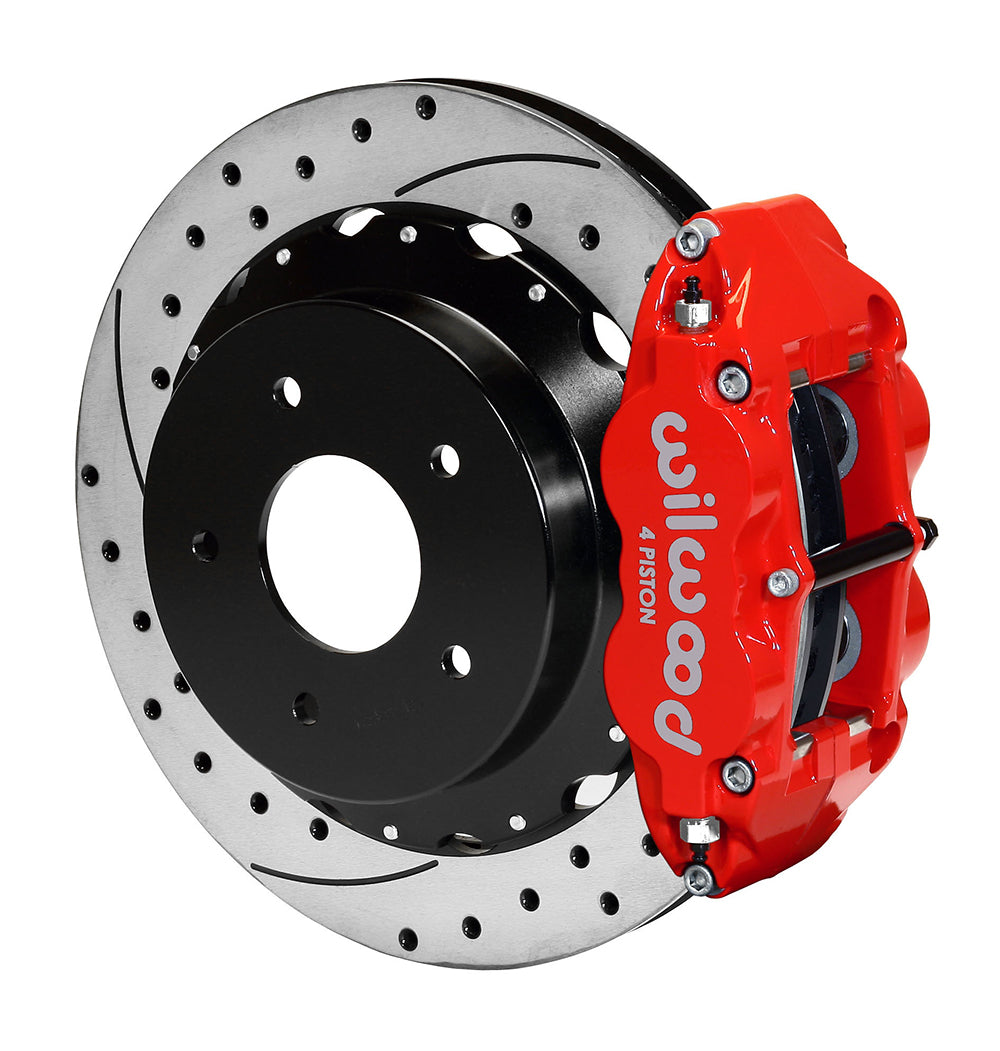

This red Wilwood rear kit uses drilled/slotted 12.88-inch rotors with four-piston Superlite calipers. Rotor hats retain the Corvette's original internal parking-brake arrangement, while BP-10 pads serve the hydraulic calipers. The conversion keeps the existing rear hub and requires that its mounting and bearing condition be suitable. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10471-DR
• Type: Forged Narrow Superlite 4R Big Brake Rear Brake Kit For OE Parking Brake
• Calipers: Forged Narrow Superlite 4R; 4 pistons; Red Powder Coat.
• Bores: 1.38, 1.38 inches. Pads: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch width; SRP Drilled & Slotted, Spec-37 Iron, Black Electro Coat. 48 curved vanes.
• Wheel bolt circles: 5 x 4.75 inches.

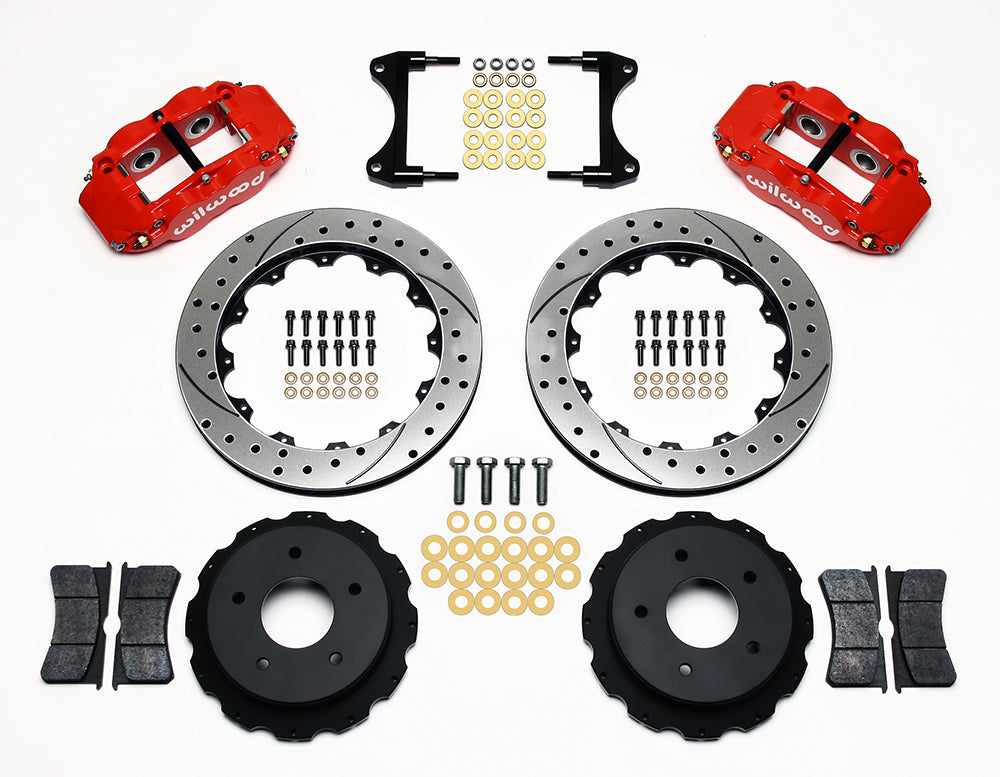

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Match the 1965–1982 C2/C3 application and inspect the original parking mechanism before assembling the new hats. Axle studs or patterns changed from factory specification need to be checked against the hat holes. DS624 describes bracket shimming and possible sway-bar end-link bolt reversal. Hydraulic hoses are separate, and the wheel drawing must clear the full caliper projection.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
