Wilwood Rear Black 12.88-Inch Drilled/Slotted Kit, Corvette C2/C3 (1965–1982), Original Parking System

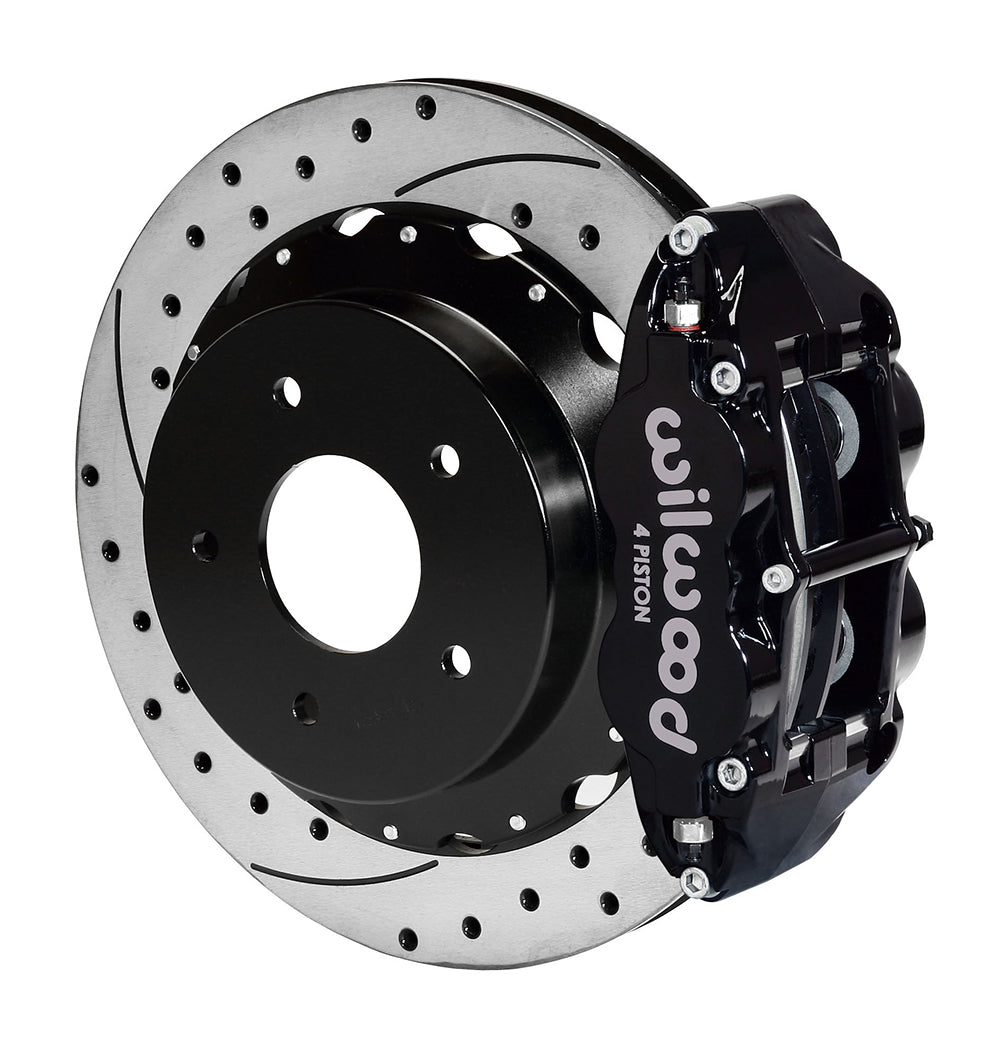

Black Superlite 4R calipers and drilled/slotted rotors form this Wilwood Corvette rear conversion. The 12.88-inch friction rings are carried on separate hats that accommodate the existing internal parking-brake shoes. This selected SRP package specifies BP-10 pads, unlike the GT rotor variant's BP-20 specification. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10471-D
• Type: Forged Narrow Superlite 4R Big Brake Rear Brake Kit For OE Parking Brake
• Calipers: Forged Narrow Superlite 4R; 4 pistons; Black Powder Coat.
• Bores: 1.38, 1.38 inches. Pads: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch width; SRP Drilled & Slotted, Spec-37 Iron, Black Electro Coat. 48 curved vanes.
• Wheel bolt circles: 5 x 4.75 inches.

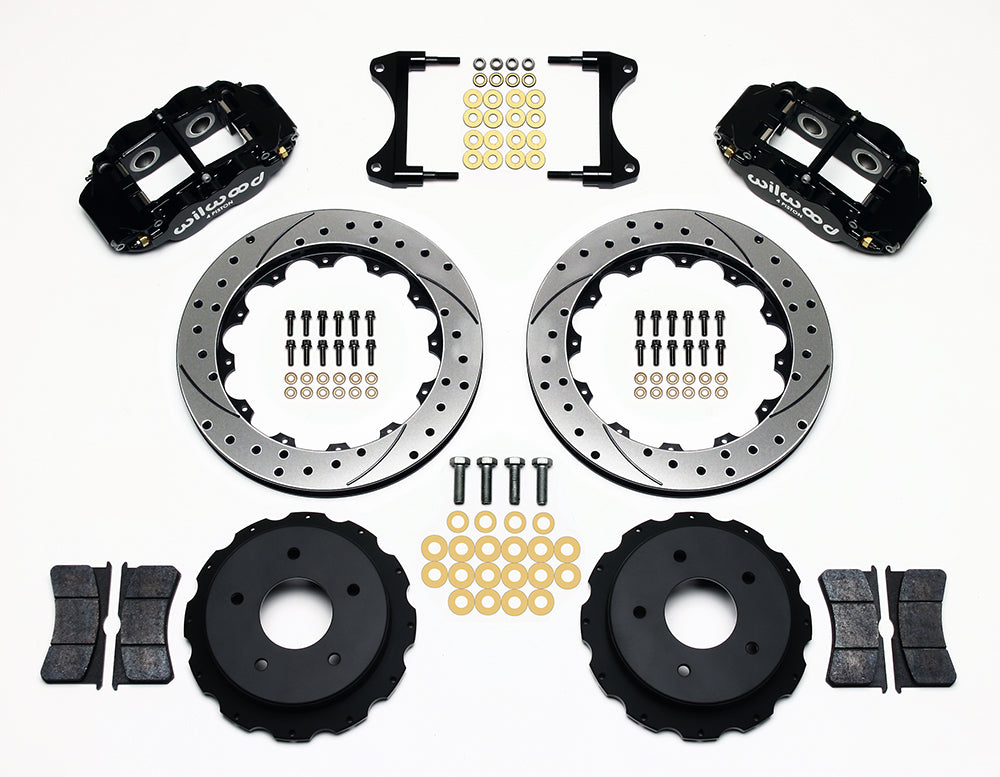

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Inspect the Corvette's original hub, parking-shoe mechanism and axle-stud pattern before installation. The kit replaces the service-brake components and rotor hats, rather than providing a new complete parking assembly. Follow DS624 for bracket shims and suspension clearance, including the end-link bolt where required. Provide compatible hydraulic lines and verify the wheel template at the spokes and inner barrel.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
