Wilwood Front Red Dynalite Plain-Rotor Kit, Mustang II/Pinto/Bobcat (1974–1980), 12.19-Inch Five-Lug

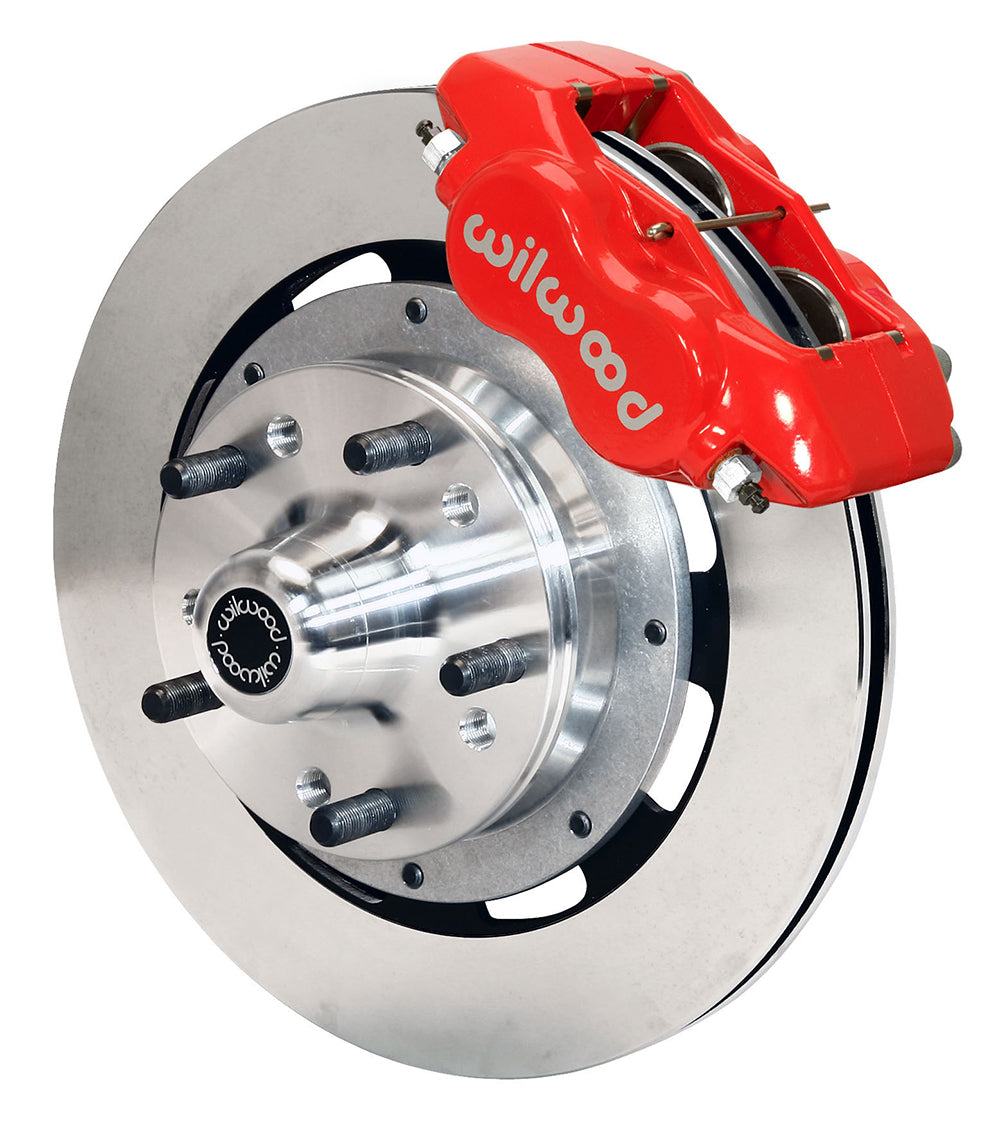

The red-caliper version of this Wilwood front kit uses plain 12.19-inch vented rotors and five-lug replacement hubs. Four-piston forged Dynalite calipers mount to brackets for the original disc spindle. The package therefore depends on the underlying spindle configuration even where the car already carries modified front brakes. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10440-R
• Type: Forged Dynalite Big Brake Front Brake Kit (Hub)
• Calipers: Forged Dynalite Internal; 4 pistons; Red Powder Coat.
• Bores: 1.75, 1.75 inches. Pads: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; Plain Face, Iron, Plain. 32 vanes.
• Wheel mounting change from OE: .00 inches per side.
• Hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

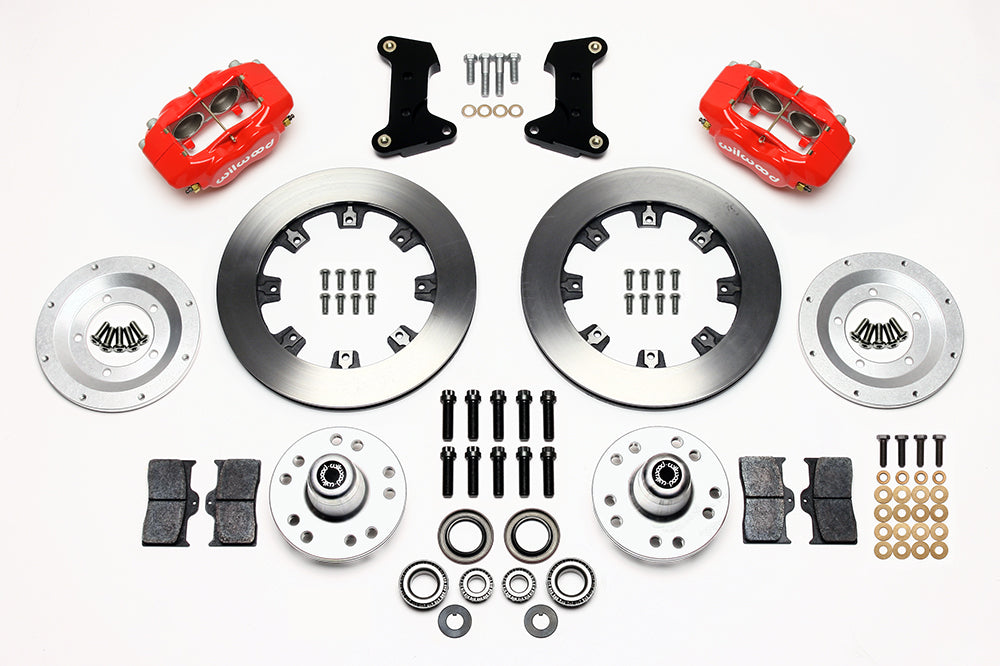

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Check the vehicle row and the disc-spindle interface in DS614. Confirm the supported wheel bolt circle and register rather than assuming the original wheels carry over. Hydraulic hoses require separate selection and suitable routing at full steering lock. Use the exact wheel-clearance template, inspect rotor centering and evaluate the master-cylinder and pedal arrangement already installed.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
