Wilwood Front Red Dynalite Drilled/Slotted Brake Conversion, Mustang II/Pinto/Bobcat (1974–1980), 12.19-Inch

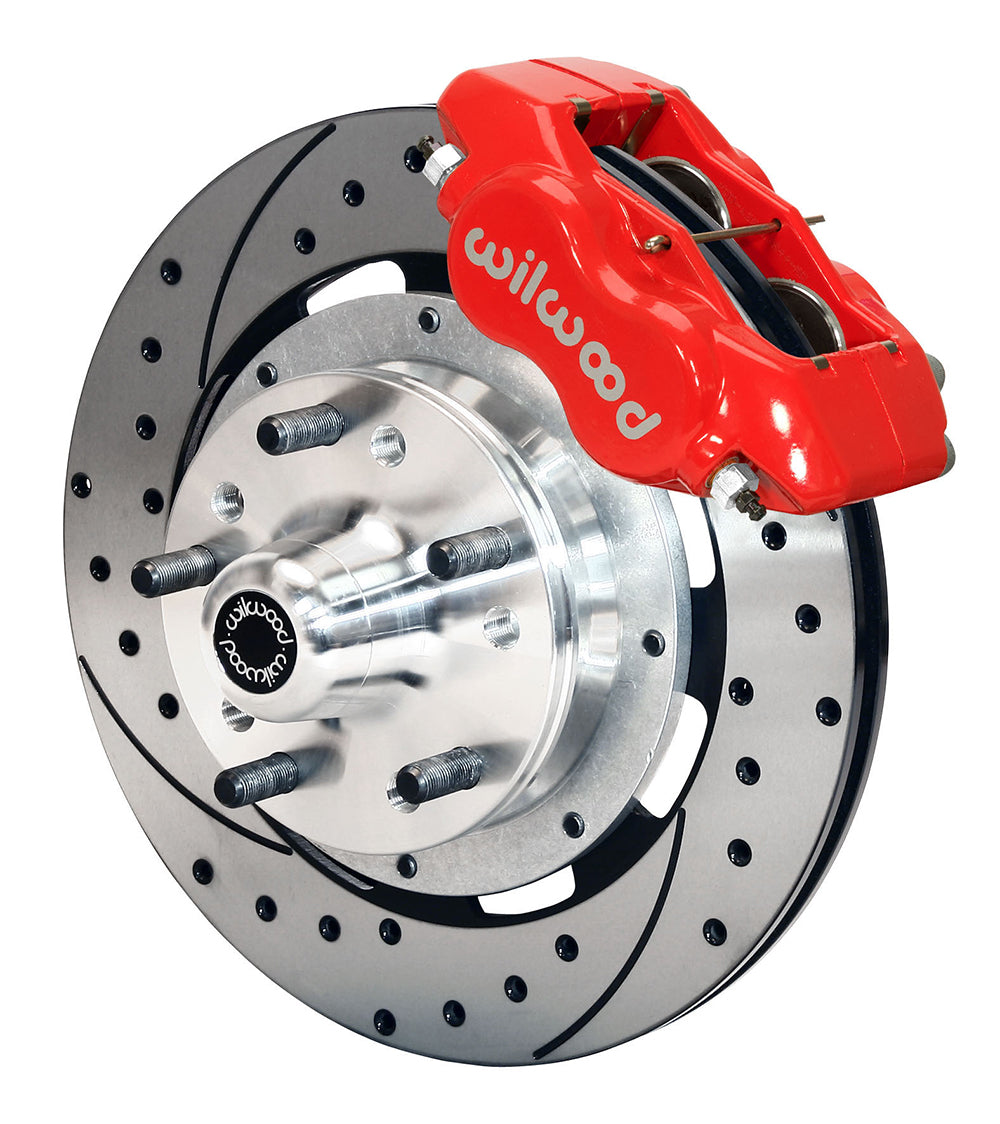

Red Dynalite calipers work over drilled/slotted 12.19-inch-diameter × 0.81-inch-wide rotors in this Wilwood front hub kit. Aluminum replacement hubs provide the five-lug wheel mounting arrangement. The kit's brackets are designed around the original disc spindle, which must be identified independently of any aftermarket caliper already on the car. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10440-DR
• Type: Forged Dynalite Big Brake Front Brake Kit (Hub)
• Calipers: Forged Dynalite Internal; 4 pistons; Red Powder Coat.
• Bores: 1.75, 1.75 inches. Pads: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; SRP Drilled & Slotted, Iron, Black Electro Coat. 32 vanes.
• Wheel mounting change from OE: .00 inches per side.
• Hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

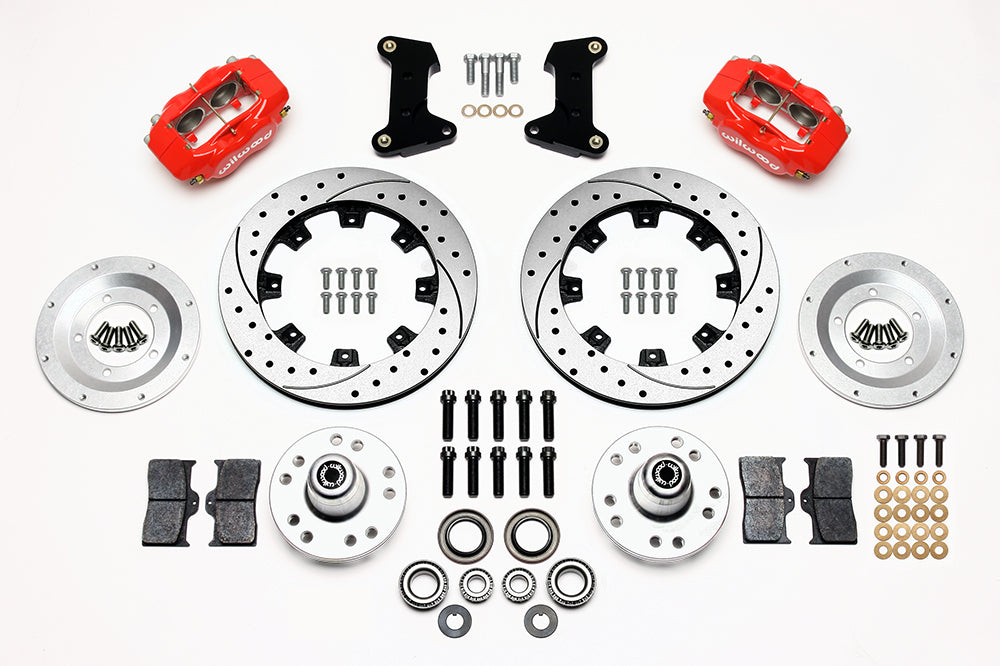

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Check the exact vehicle year and spindle against DS614 before dismantling the brakes. Match the supported wheel bolt circle and stud dimensions, and confirm the wheel register seats properly on the new hub. Hydraulic flex lines are not included. Use the wheel template to verify caliper-to-spoke clearance, then inspect pedal travel and hydraulic balance with the rear brakes.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
