Wilwood Front Black Dynalite Brake Kit for Ford Mustang II/Pinto and Mercury Bobcat (1974–1980), 12.19-Inch Plain

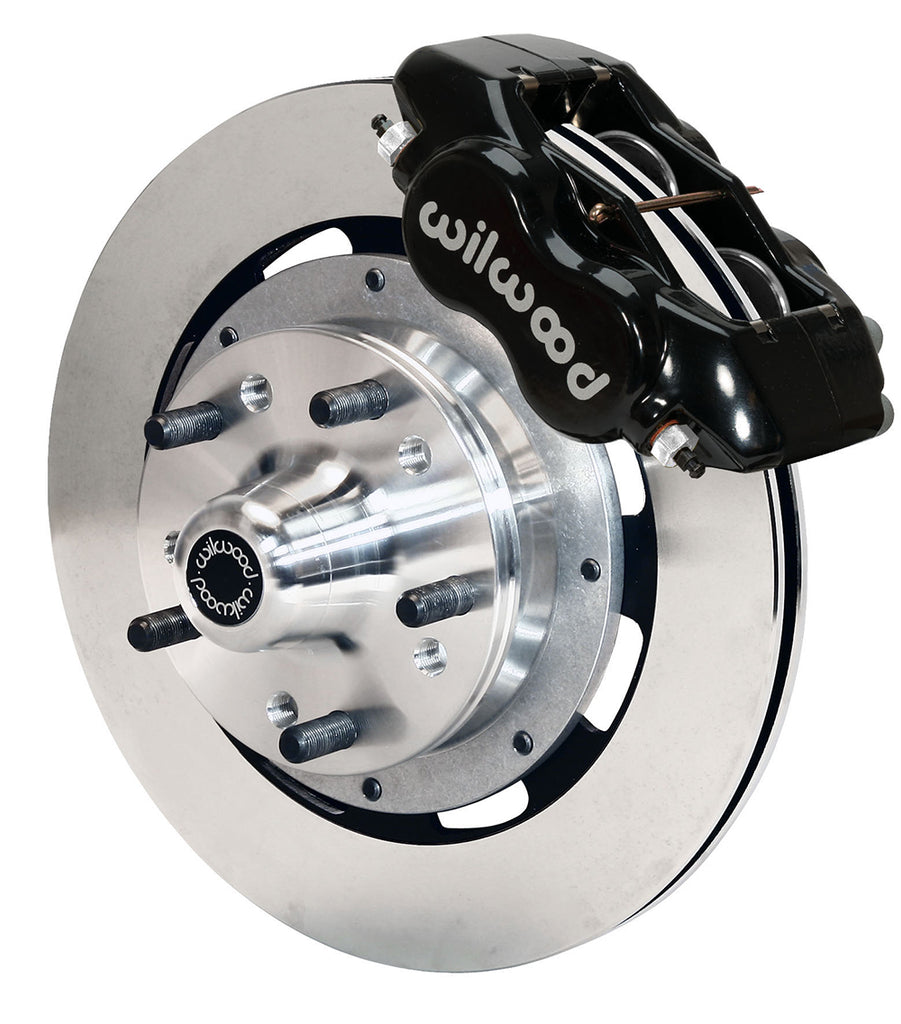

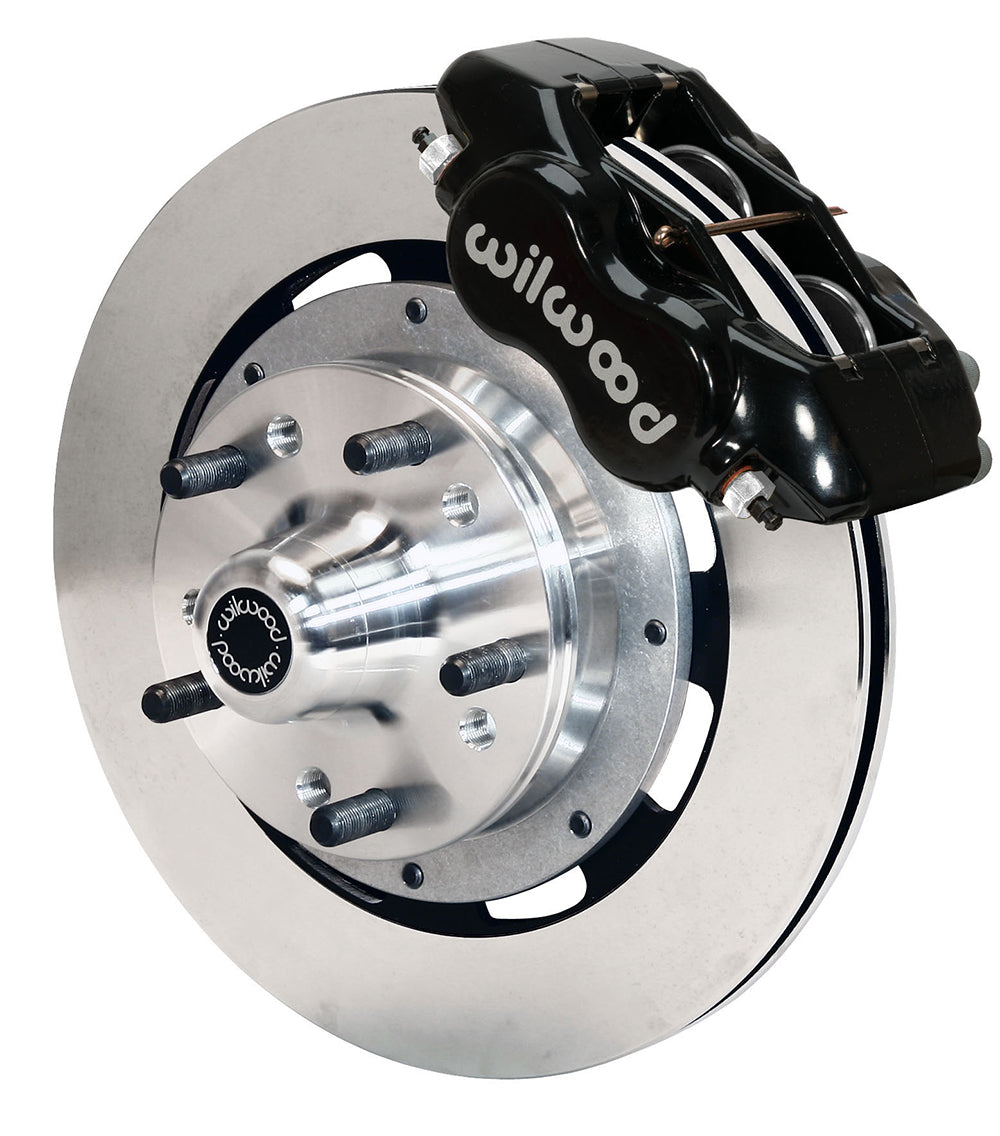

Black Dynalite calipers and plain 12.19-inch vented rotors form this Wilwood front hub conversion. The bracket package is for the original disc spindle used by the specified Mustang II, Pinto and Bobcat applications. Replacement five-lug hubs are included, distinguishing the assembly from a four-lug service replacement. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10440-B
• Type: Forged Dynalite Big Brake Front Brake Kit (Hub)
• Calipers: Forged Dynalite Internal; 4 pistons; Black Powder Coat.
• Bores: 1.75, 1.75 inches. Pads: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; Plain Face, Iron, Plain. 32 vanes.
• Wheel mounting change from OE: .00 inches per side.
• Hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

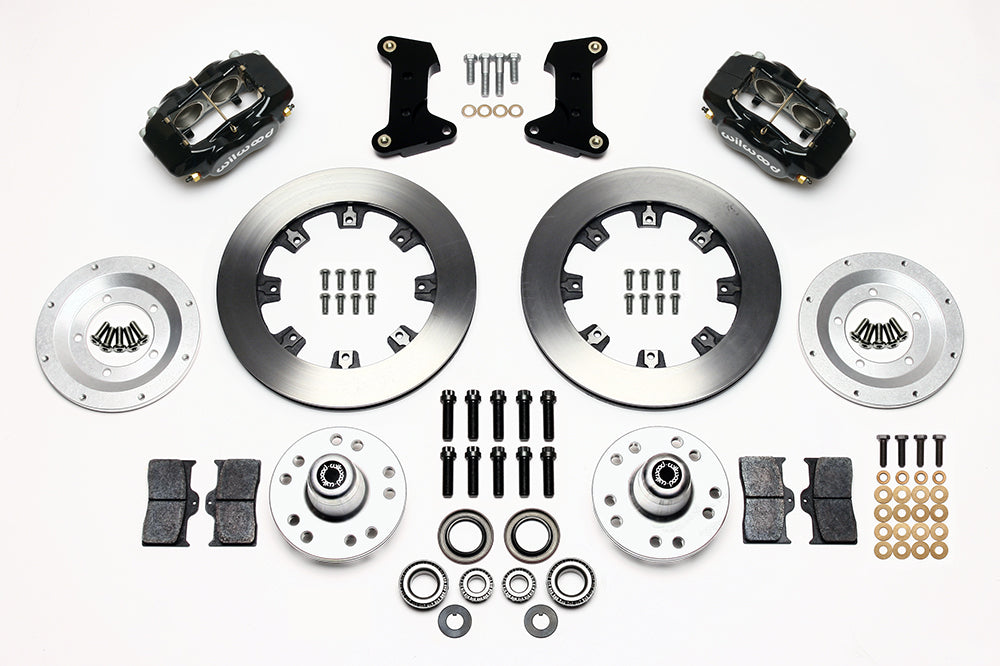

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Confirm the original disc-brake spindle, not the earlier drum spindle, for the exact vehicle row. DS614 identifies the five-lug configuration and supported bolt patterns. The stated OE wheel offset is unchanged, but spoke clearance still requires the actual wheel drawing. Select hydraulic hoses separately and check the installed master-cylinder pushrod arrangement if hydraulic components are changed.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
