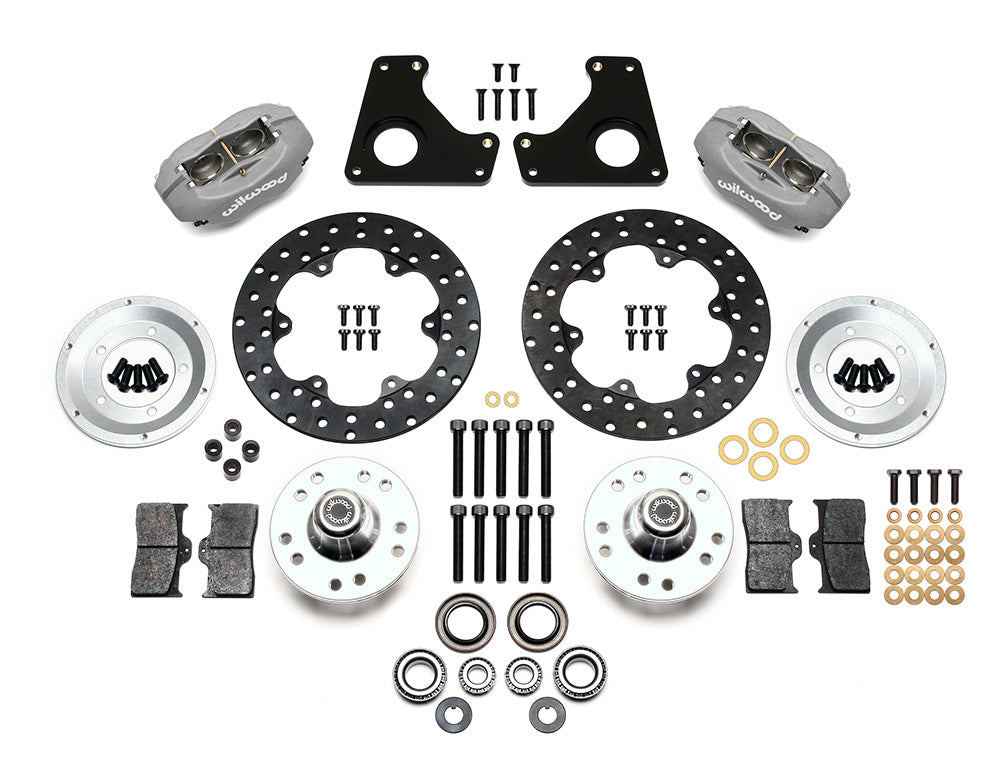

Wilwood front Dynalite kit for GM G-body/S10 spindle arrangement: gray calipers and 10.75-inch drilled rotor pieces laid out

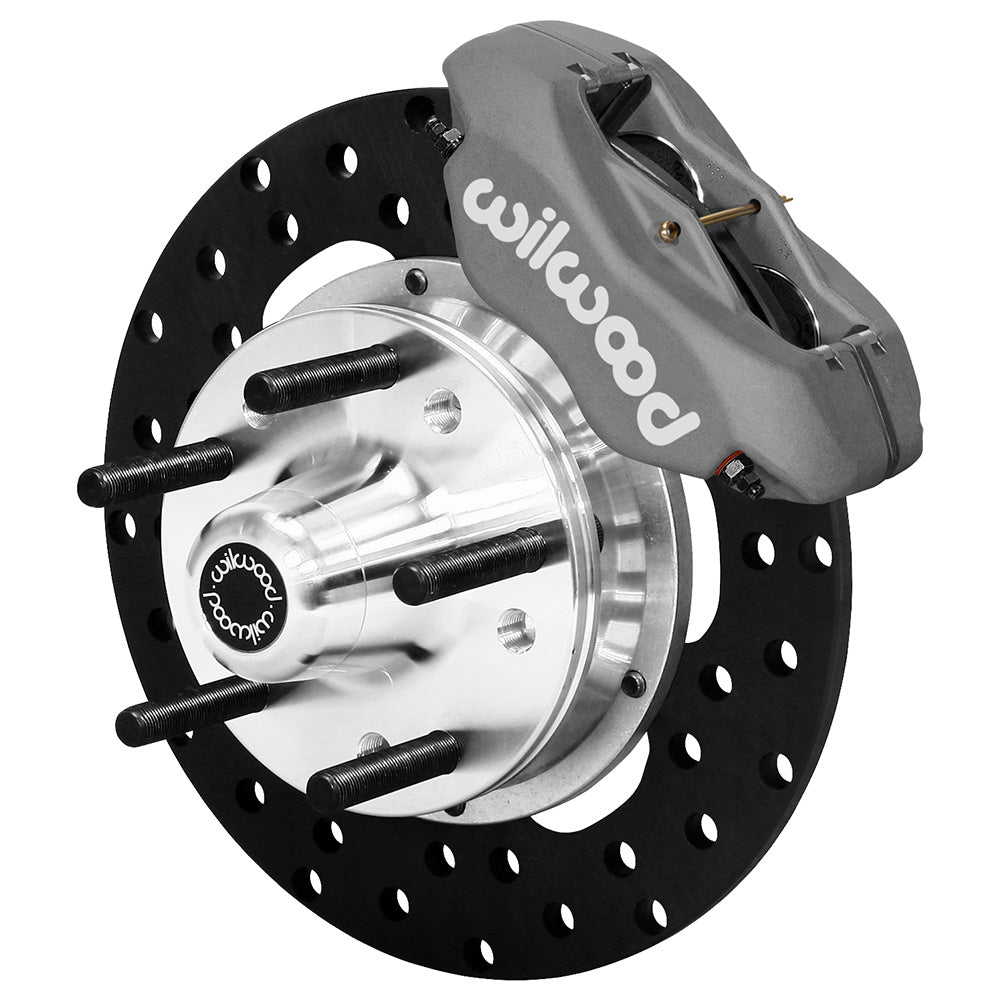

Wilwood front gray Dynalite caliper beside a 10.75-inch drilled rotor, angled assembly for GM G-body/S10 spindle arrangement
Wilwood front Dynalite kit for GM G-body/S10 spindle arrangement: gray calipers and 10.75-inch drilled rotor pieces laid out
Wilwood front gray Dynalite caliper beside a 10.75-inch drilled rotor, angled assembly for GM G-body/S10 spindle arrangement

Wilwood Front Dynalite Drag Brake Kit for GM Rear-Wheel-Drive Car/Truck Spindles (1978–2003), 10.75-Inch Drilled

SKU: 140-1033-BD

$1,001.79 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

This Wilwood front drag conversion uses four-piston Dynalite calipers, drilled steel rotors and replacement aluminum hubs for the specified GM spindle arrangement. The solid friction rings measure 10.75 × 0.35 inches. Its vehicle coverage includes rear-wheel-drive cars and selected compact trucks using the required mounting geometry. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

  • Manufacturer part number: 140-1033-BD
  • Type: Forged Dynalite Front Drag Brake Kit
  • Calipers: Forged Dynalite Internal; 4 pistons; Type III Anodize.
  • Bores: 1.75, 1.75 inches. Pads: BP-10.
  • Rotors: 10.75-inch diameter × 0.35-inch width; Drilled, Steel, Black Oxide. Solid, unvented.
  • Wheel mounting change from OE: +.59 inches per side.
  • Hubs: Hub - Solid Rotor Offset; Aluminum; Bare.
  • Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.
  • Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs.
  • Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
  • Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.
  • Application-use guidance: For use on cars up to 2800 pounds with rear discs or on cars up to 2400 pounds with rear drums. Confirm vehicle weight and brake configuration with Wilwood for the completed installation.

Fitment & Compatibility

Compare the exact model/year and two-wheel-drive conditions in the table, including the S10/S15, Sonoma and related applications. DS196 identifies the G-body spindle arrangement and the required original-spindle modifications. Account for the +0.59-inch wheel mounting change before checking tire position. Hydraulic lines are separate, and the actual wheel profile must be compared with the brake-clearance template.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.

California Proposition 65 warning — brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1978-1987 GMC Caballero Base Base Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1978-1987 GMC Caballero Diablo Diablo Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1978-1980 GMC Caballero Laredo Laredo Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1979-1981 Buick Century All Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1979-1987 Buick Regal All Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1979-1987 Chevrolet El Camino All Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1979-1983 Chevrolet Malibu All Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1979-1988 Chevrolet Monte Carlo All Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1979 Oldsmobile Cutlass Vista Cruiser Vista Cruiser Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1979-1984 Oldsmobile Cutlass Calais Base Base Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1979, 1985-1986 Oldsmobile Cutlass Salon 442 442 Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1979-1980, 1985-1987 Oldsmobile Cutlass Salon Base Base Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1979-1980 Oldsmobile Cutlass Salon Brougham Brougham Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1979 Oldsmobile Cutlass Salon Hurst Hurst Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1979-1987 Oldsmobile Cutlass Supreme Base Base Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1979-1981 Oldsmobile Cutlass Supreme Brougham Brougham Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1979-1980 Pontiac Grand Am All Disc Drum Front Kit 1, 2, 5, 6
1979-1987 Pontiac Grand Prix All Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1979-1980 Pontiac LeMans All Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1980 Oldsmobile Cutlass Base Base Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1980-1982 Oldsmobile Cutlass Cruiser All Disc Drum Front Kit 1, 2, 5, 6
1981-1986 GMC Caballero Amarillo Amarillo Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1981 GMC Caballero Conquista Conquista Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1981 GMC Caballero Royal Knight Royal Knight Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1981 Oldsmobile Cutlass Brougham Brougham Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1981 Oldsmobile Cutlass Supreme LS LS Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1981 Pontiac LeMans All (Canada) Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1982 Chevrolet S10 Pickup All Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1982 GMC S15 All Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1982-1987 Pontiac Bonneville All Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1982-1983 Pontiac Grand LeMans Base Base Disc Drum Front Kit 1, 2, 3, 5, 6
1982-1983 Pontiac Grand LeMans BR BR Disc Drum Front Kit 1, 2, 3, 5, 6
1983-1997 Chevrolet S10 Blazer 4 x 2 Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1983-1996 Chevrolet S10 Pickup 4 x 2 Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1983-1990 GMC S15 4 x 2 Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1983-1991 GMC S15 Jimmy 4 x 2 Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1983-1984 Oldsmobile Cutlass Calais Hurst Hurst Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1983 Oldsmobile Cutlass Cruiser All Disc Drum Front Kit 1, 2, 3, 5, 6
1984-1987 Buick Regal Grand National Grand National Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1987 Oldsmobile Cutlass Supreme 442 442 Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1988 Oldsmobile Cutlass Supreme RWD only Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1991-1996 GMC Sonoma 4 x 2 Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1992-1997 GMC Jimmy 4 x 2 Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1996-2000 Isuzu Hombre 4 x 2 Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1997-2003 Chevrolet S10 Pickup 4 x 2 w/ Drum Rear Disc Drum Front Kit 1, 2, 3, 4, 5, 6
1997-2002 GMC Sonoma 4 x 2 w/ Drum Rear Brake Disc Drum Front Kit 1, 2, 3, 4, 5, 6
2003 Chevrolet S10 Pickup 4 x 2 w/ Disc Brake Rear Disc Disc Front Kit 1, 2, 3, 4, 5, 6
2003 GMC Sonoma 4 x 2 w/ Disc Brake Rear Disc Disc Front Kit 1, 2, 3, 4, 5, 6
2003 GMC Sonoma 4 x 2 w/ Drum Rear Disc Drum Front Kit 1, 2, 3, 4, 5, 6
