Wilwood Rear Red CPB Kit with GT Slotted Rotors and Lines, Honda S2000 (2000–2009), 12.88-Inch

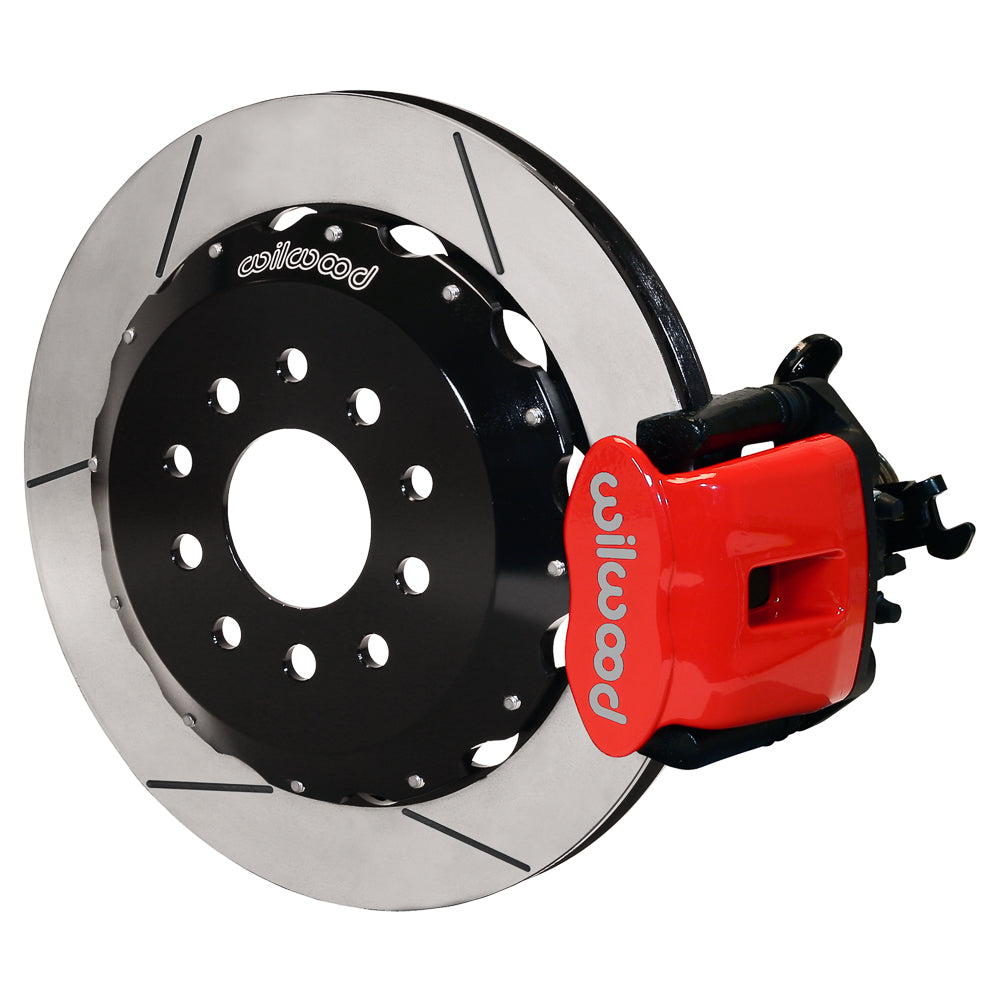

GT slotted rotors and red combination parking calipers form this Wilwood S2000 rear package. The 12.88 × 0.81-inch friction rings use separate hats, and hydraulic flex lines are supplied for the application. The cable-operated parking mechanism shares the hydraulic service caliper rather than using separate drum shoes. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10310-R
• Type: Combination Parking Brake Caliper Rear Brake Kit
• Calipers: Combination Parking Brake; 1 piston; Red Powder Coat.
• Bores: 1.62 inches. Pads: BP-10.
• Rotors: 12.88-inch diameter × 0.81-inch width; GT Slotted, Iron, Black Electro Coat. 48 curved vanes.
• Wheel bolt circles: 5 x 4.50 inches.

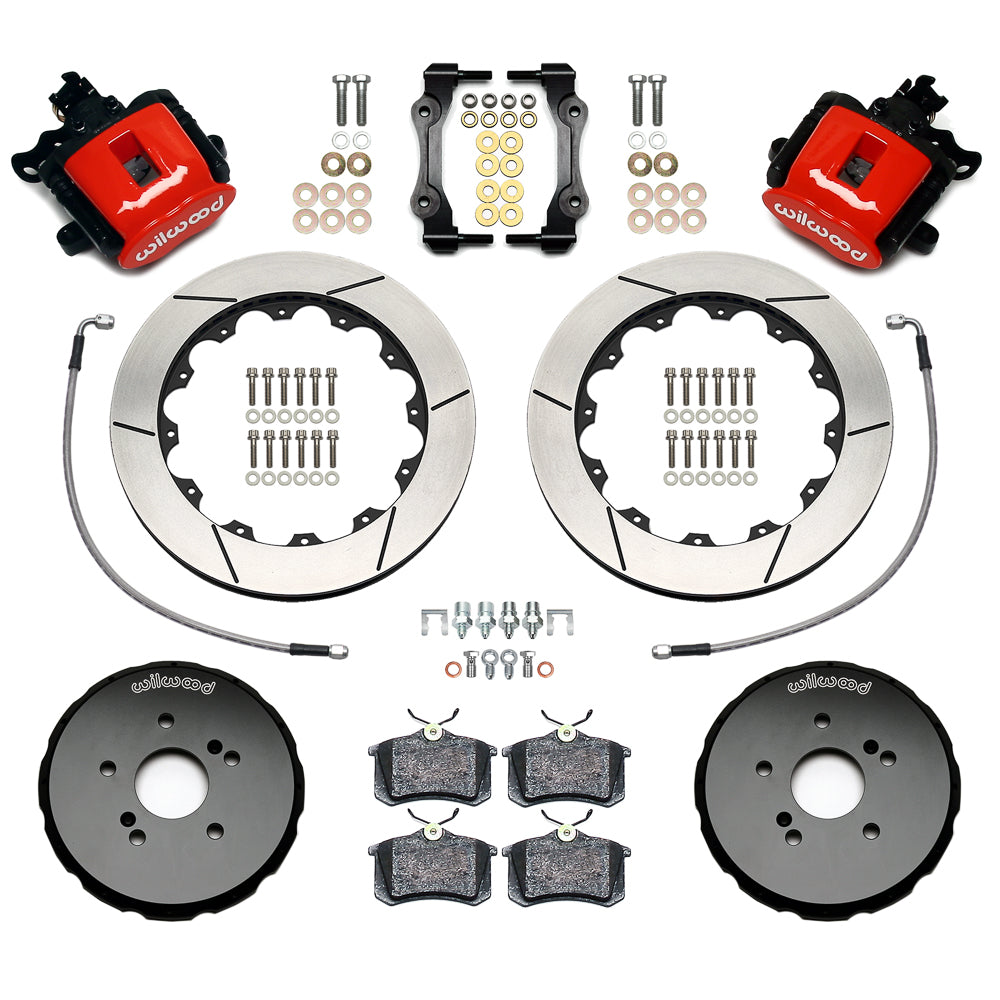

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Hydraulic flex lines included for the specified application.
• Parking cables/connections separate.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Confirm the original rear hub layout and fit the brackets as shown in DS606. Set the parking cable so the levers operate through their required travel and fully release. The included hoses must clear the suspension and wheel throughout movement. Check the wheel drawing behind the spokes, verify rotor centering and bleed the system before completing the prescribed brake test.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
