Wilwood Rear Red Drilled/Slotted CPB Kit for Honda S2000 (2000–2009), 12.88-Inch Rotors with Lines

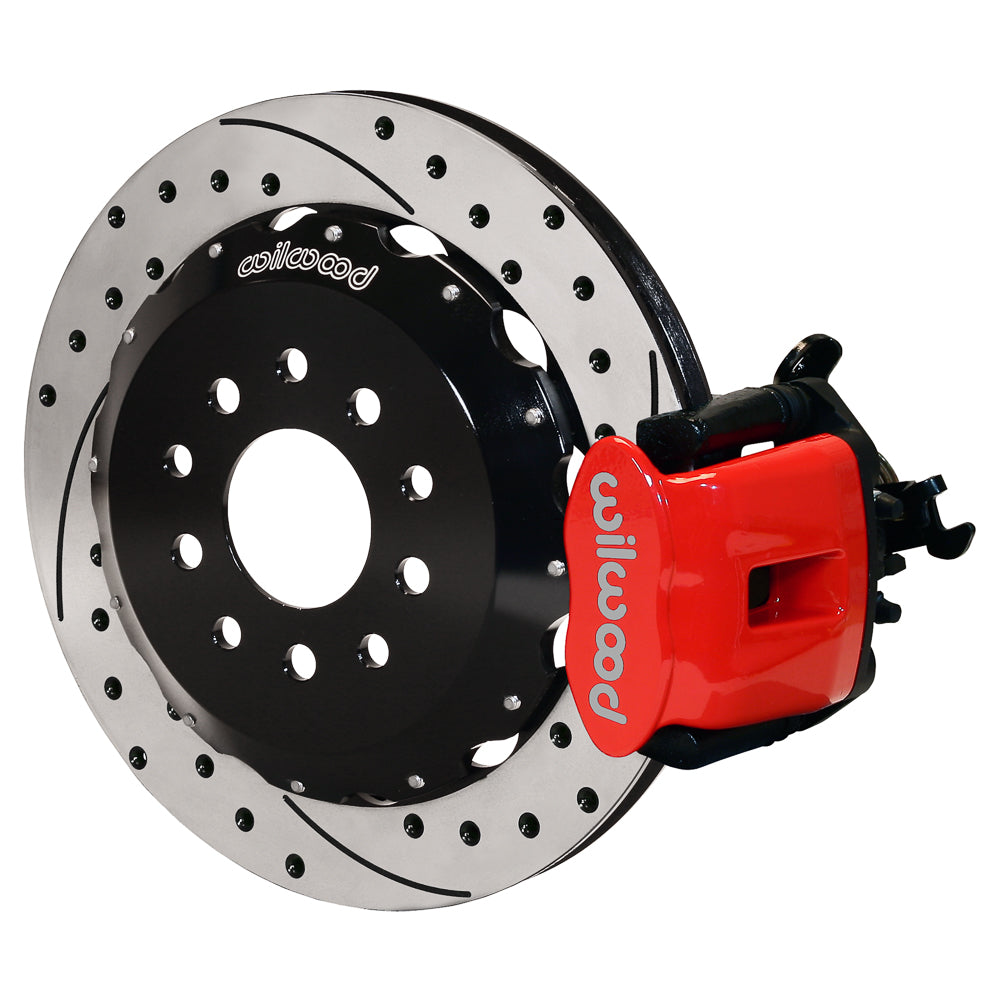

Red combination parking calipers provide hydraulic rear braking and cable parking in this Wilwood S2000 package. The drilled/slotted 12.88-inch rotors mount to separate hats over the existing rear hubs. Hydraulic hoses are included, while the parking-cable interface still needs to match the car. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10310-DR
• Type: Combination Parking Brake Caliper Rear Brake Kit
• Calipers: Combination Parking Brake; 1 piston; Red Powder Coat.
• Bores: 1.62 inches. Pads: BP-10.
• Rotors: 12.88-inch diameter × 0.81-inch width; SRP Drilled & Slotted, Iron, Black Electro Coat. 48 curved vanes.
• Wheel bolt circles: 5 x 4.50 inches.

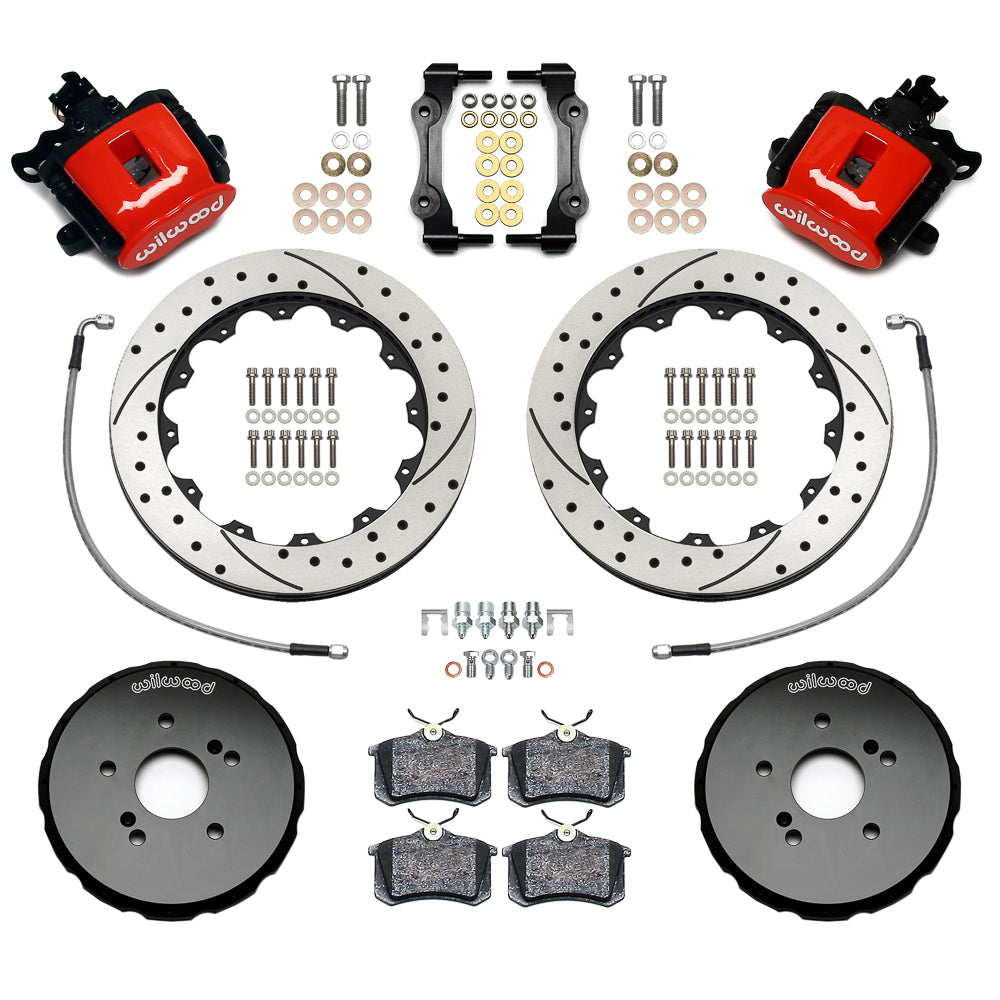

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Hydraulic flex lines included for the specified application.
• Parking cables/connections separate.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Use the S2000 installation drawing to check hub registration, rotor position and caliper alignment. Route the included flex lines without contact at full suspension travel, and confirm that the parking levers return to their released stops. Compare the complete wheel profile with the brake-clearance template. Inspect the assembled system for leaks and correct pedal travel before the initial test procedure.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.

California Proposition 65 warning — brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
