Wilwood Rear Black 12.88-Inch SRP Parking Brake Kit, Honda S2000 (2000–2009), Flex Lines Included

Drilled/slotted rotors and black CPB calipers distinguish this Wilwood S2000 rear conversion. The 12.88-inch friction rings are 0.81 inches wide and mount on separate hats, while hydraulic flex lines accompany the kit. Parking is operated mechanically through the combination caliper's lever. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10310-D
• Type: Combination Parking Brake Caliper Rear Brake Kit
• Calipers: Combination Parking Brake; 1 piston; Black Powder Coat.
• Bores: 1.62 inches. Pads: BP-10.
• Rotors: 12.88-inch diameter × 0.81-inch width; SRP Drilled & Slotted, Iron, Black Electro Coat. 48 curved vanes.
• Wheel bolt circles: 5 x 4.50 inches.

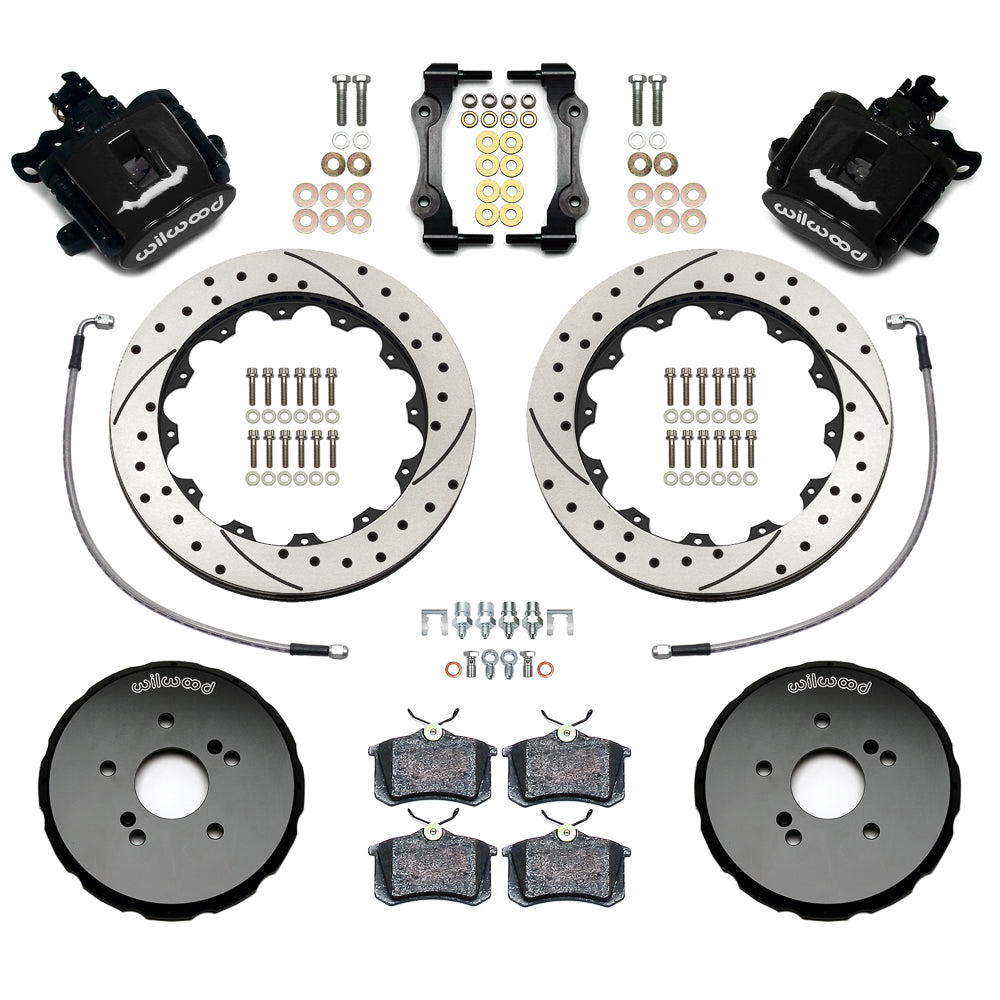

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Hydraulic flex lines included for the specified application.
• Parking cables/connections separate.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Confirm the original S2000 rear hub interface and follow DS606 for bracket alignment and cable setup. Check that the parking mechanism releases fully after adjustment and that the supplied hoses have room for suspension movement. The selected wheels must match the clearance template at the spokes and inner barrel. Inspect hose fittings and pedal travel before road testing.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.

California Proposition 65 warning — brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
