Wilwood Rear GT Rotor/CPB Caliper Package with Flex Lines, Black, Honda S2000 (2000–2009), 12.88-Inch

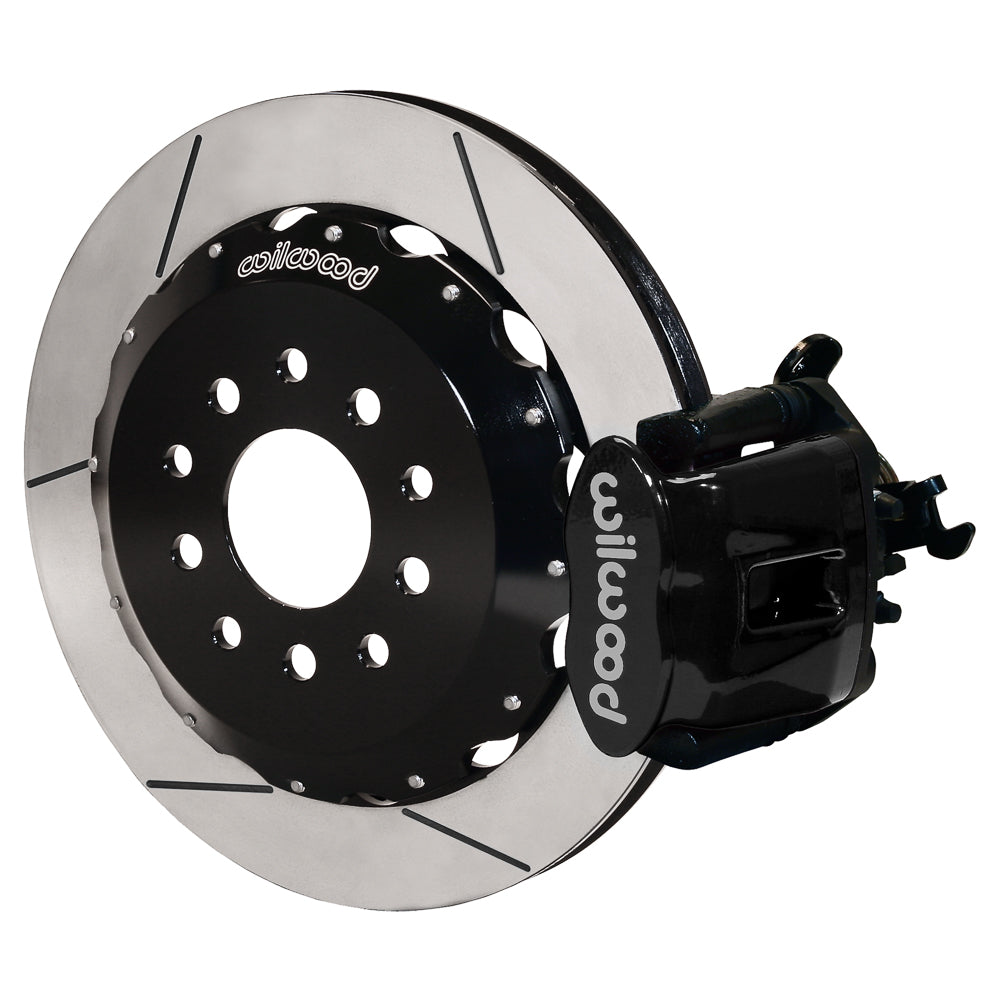

This Wilwood S2000 rear kit uses black combination parking calipers over 12.88-inch GT slotted rotors. Separate hats adapt the friction rings to the original rear hub, and the hydraulic flex lines are included for the specified installation. A cable lever within each caliper supplies the parking function. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10310
• Type: Combination Parking Brake Caliper Rear Brake Kit
• Calipers: Combination Parking Brake; 1 piston; Black Powder Coat.
• Bores: 1.62 inches. Pads: BP-10.
• Rotors: 12.88-inch diameter × 0.81-inch width; GT Slotted, Iron, Black Electro Coat. 48 curved vanes.
• Wheel bolt circles: 5 x 4.50 inches.
• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Hydraulic flex lines included for the specified application.
• Parking cables/connections separate.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Check the 2000–2009 S2000 rear hub arrangement against DS606 and confirm the parking-cable interface and release travel. Route the included lines away from the wheel and suspension, allowing their full movement. The wheel must clear the actual caliper profile, not simply the rotor diameter. Verify caliper centering and cable adjustment before bleeding and testing the completed brakes.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
