Wilwood Front Red GT Slotted Superlite Kit, Honda S2000 (2000–2009), 12.88-Inch with Hydraulic Lines

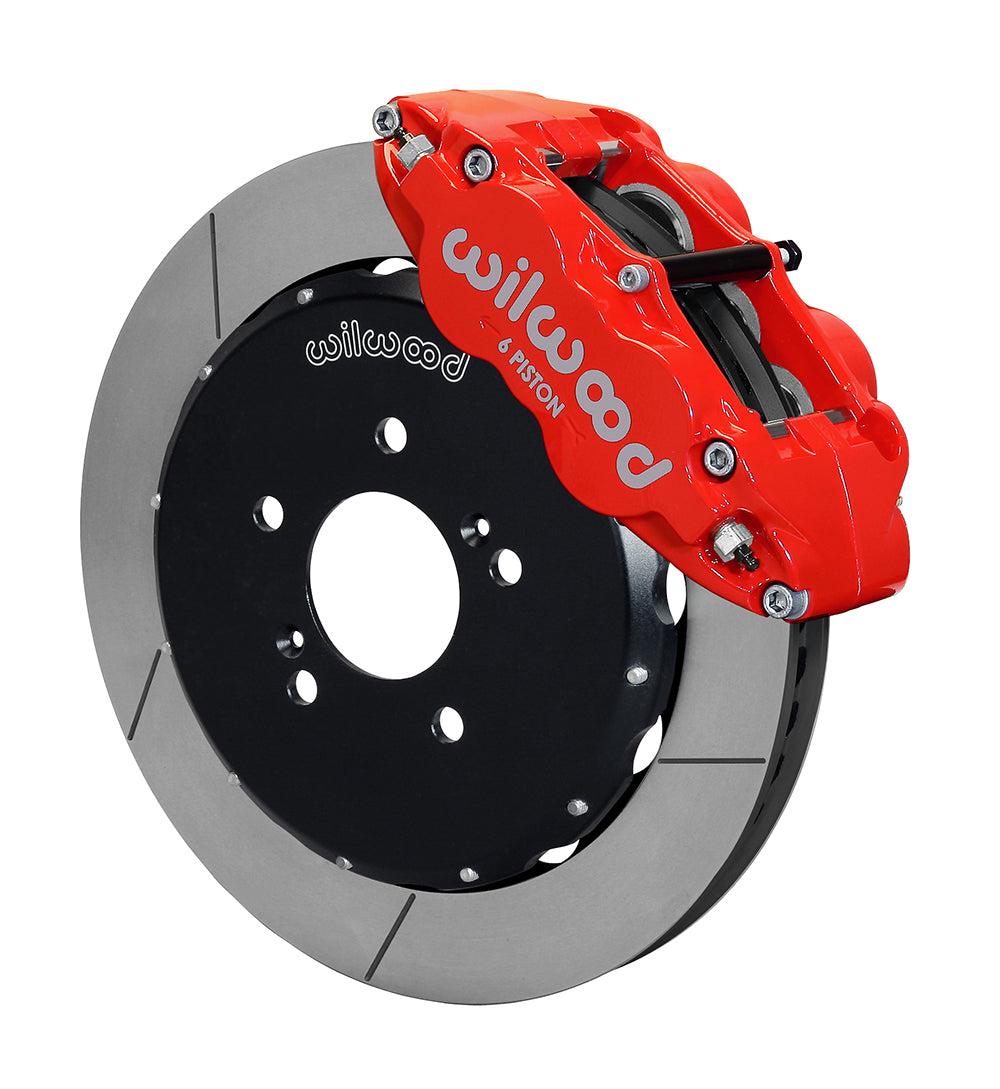

Red six-piston calipers, GT slotted rotors and included flex lines make up this Wilwood S2000 front conversion. The 12.88 × 1.10-inch friction rings attach to separate hats that use the existing hub arrangement. The package is selected for the factory disc-spindle installation rather than a replacement spindle. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10309-R
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)
• Calipers: Forged Narrow Superlite 6R; 6 pistons; Red Powder Coat.
• Bores: 1.62, 1.12, 1.12 inches. Pads: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch width; GT Slotted, Spec-37 Iron, Black Electro Coat. 48 curved vanes.
• Wheel bolt circles: 5 x 4.50 inches.

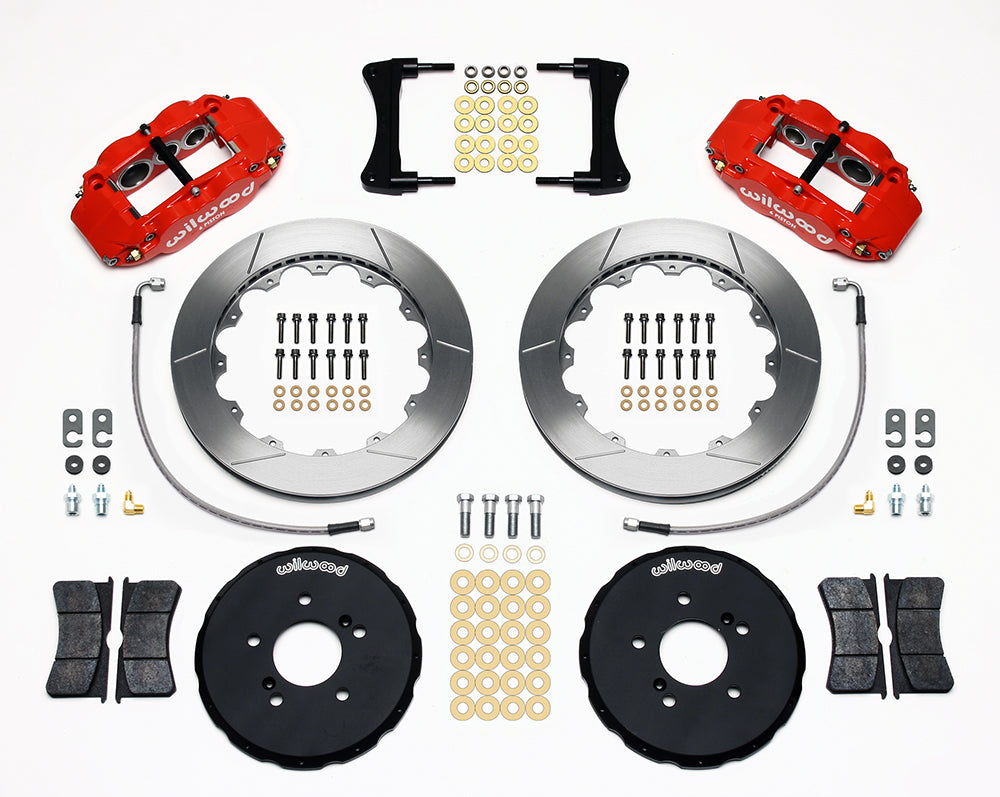

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Hydraulic flex lines included for the specified application.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Inspect the S2000 hub and mounting surfaces and compare the brake arrangement with DS605. The supplied hydraulic hoses must remain free from interference at both steering locks and through suspension travel. Check the wheel drawing for the complete caliper envelope. Reuse of the existing master cylinder depends on the finished system's displacement, pedal travel and balance, not simply the presence of new front calipers.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
