Wilwood Front Red SRP Brake Conversion for Honda S2000 (2000–2009), 12.88-Inch Rotors and Flex Lines

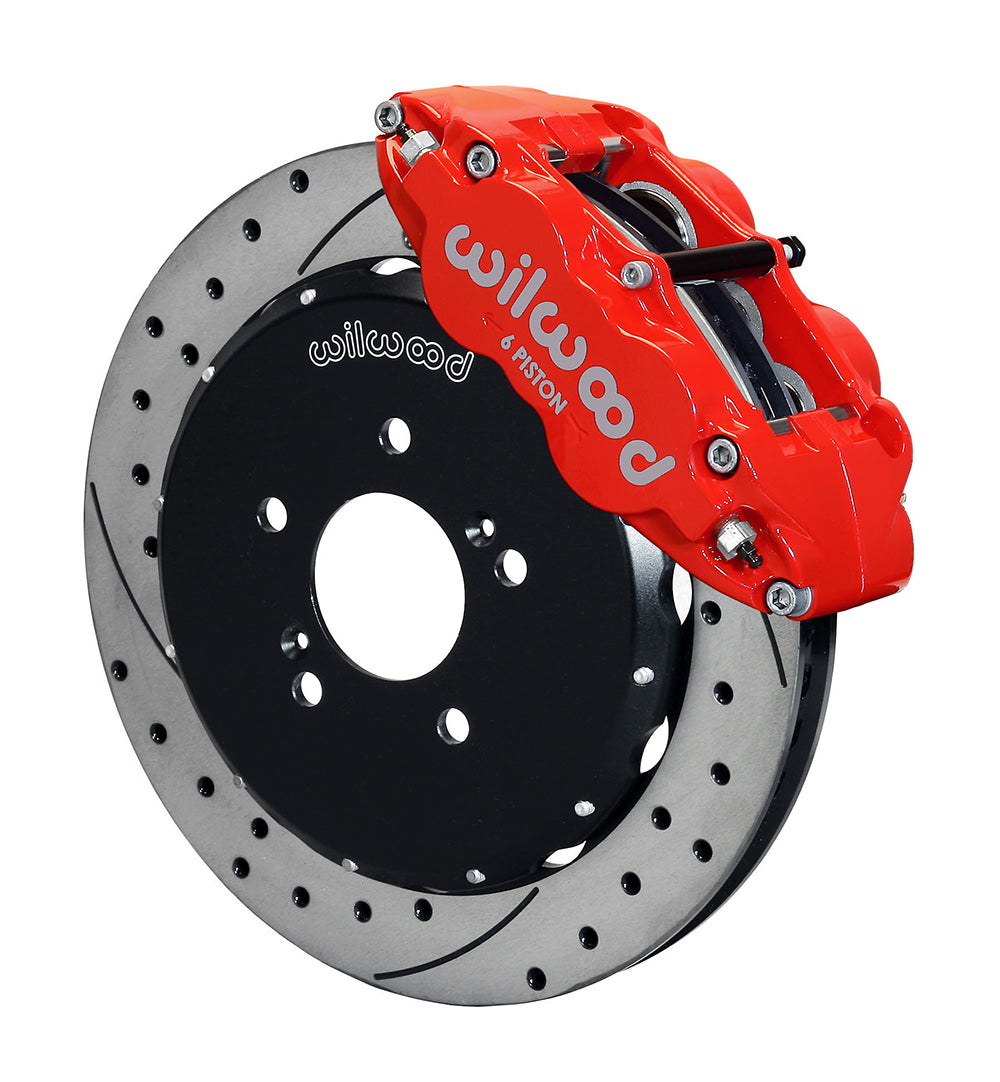

This Wilwood S2000 kit pairs red Superlite 6R calipers with 12.88-inch drilled/slotted Spec-37 rotors. The front package includes separate hats, mounting brackets and hydraulic flex lines for the stated application. Replacement hubs are not part of the conversion, so the existing hub interface must be sound. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10309-DR
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)
• Calipers: Forged Narrow Superlite 6R; 6 pistons; Red Powder Coat.
• Bores: 1.62, 1.12, 1.12 inches. Pads: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch width; SRP Drilled & Slotted, Spec-37 Iron, Black Electro Coat. 48 curved vanes.
• Wheel bolt circles: 5 x 4.50 inches.

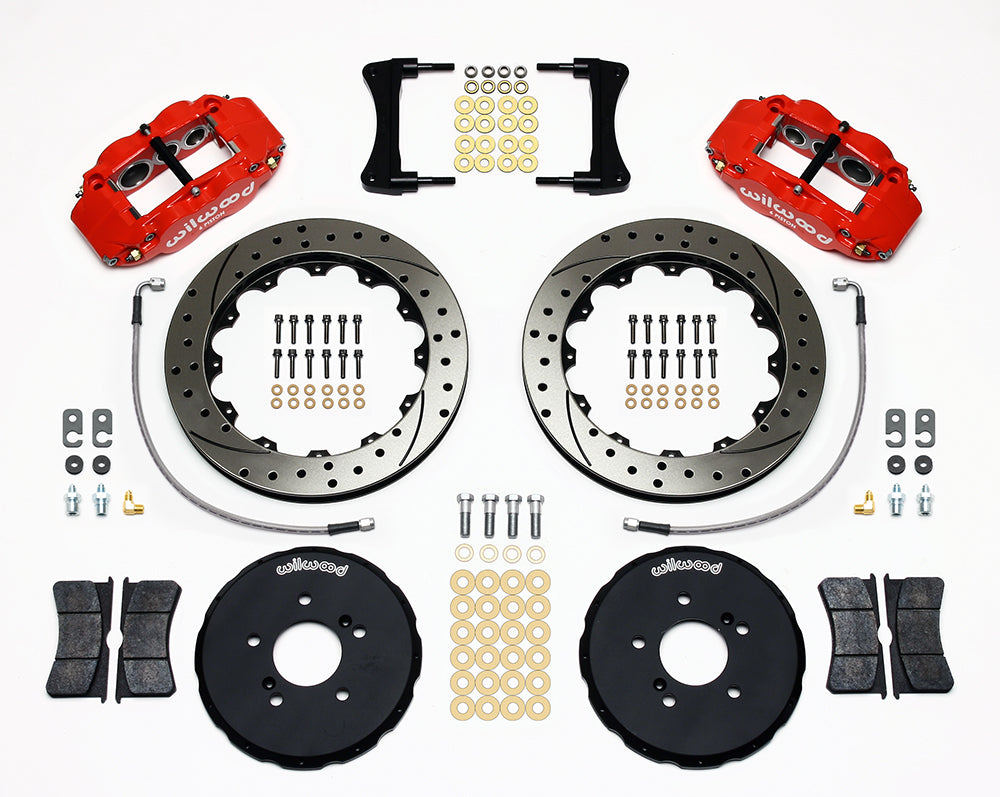

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Hydraulic flex lines included for the specified application.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Match the 2000–2009 S2000 disc-spindle arrangement and inspect the hub register before assembly. Fit the included 18-inch lines following the instructions and check for stretch, rubbing or kinks through full steering and suspension movement. The wheel template determines clearance at both the barrel and spokes. Confirm caliper alignment, bleed the system and test pedal travel before bedding.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
