Wilwood Front Black 12.88-Inch SRP Brake Kit with Lines, Honda S2000 (2000–2009)

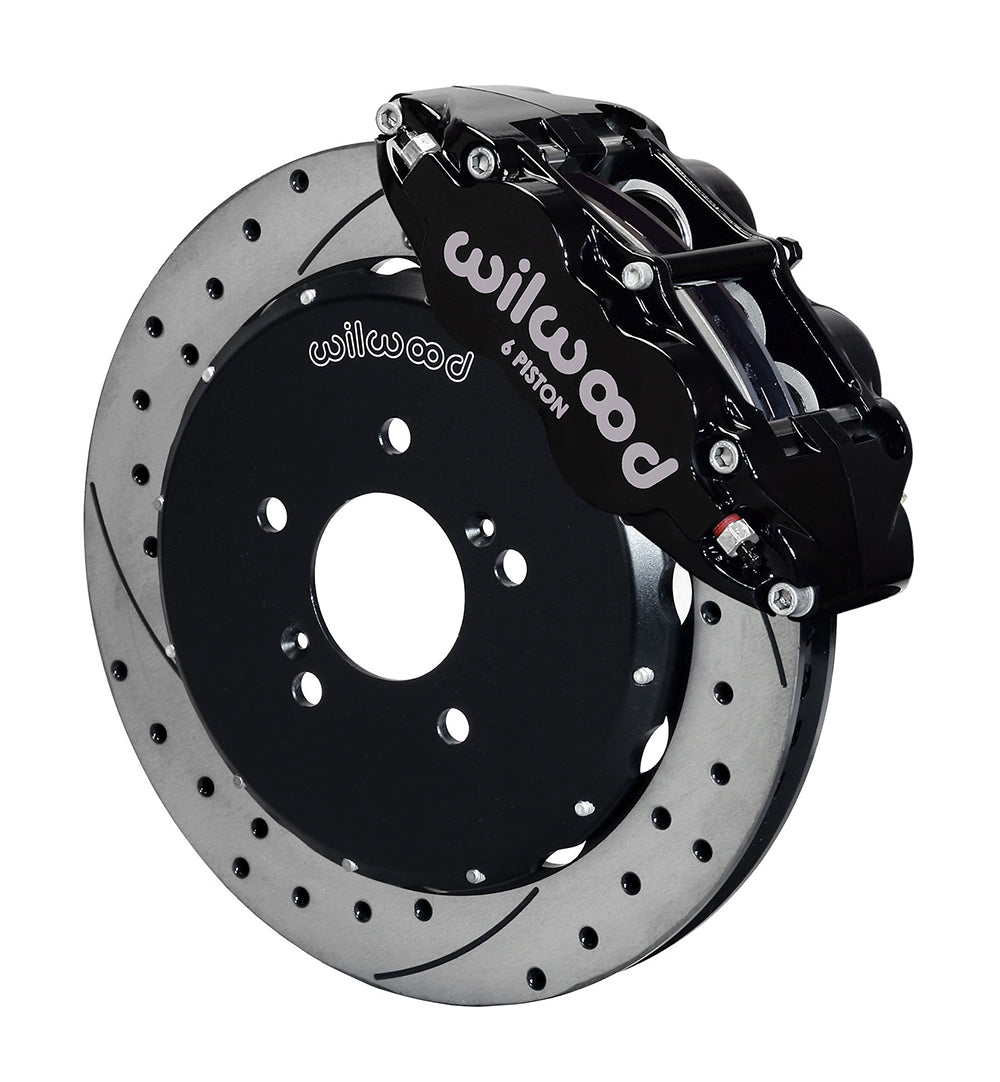

Black six-piston Superlite calipers and drilled/slotted 12.88-inch rotors distinguish this Wilwood S2000 front package. Separate aluminum hats mount the vented friction rings, and the application-specific hydraulic flex lines are included. The original hub and disc-spindle arrangement remain part of the installation. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10309-D
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)
• Calipers: Forged Narrow Superlite 6R; 6 pistons; Black Powder Coat.
• Bores: 1.62, 1.12, 1.12 inches. Pads: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch width; SRP Drilled & Slotted, Spec-37 Iron, Black Electro Coat. 48 curved vanes.
• Wheel bolt circles: 5 x 4.50 inches.

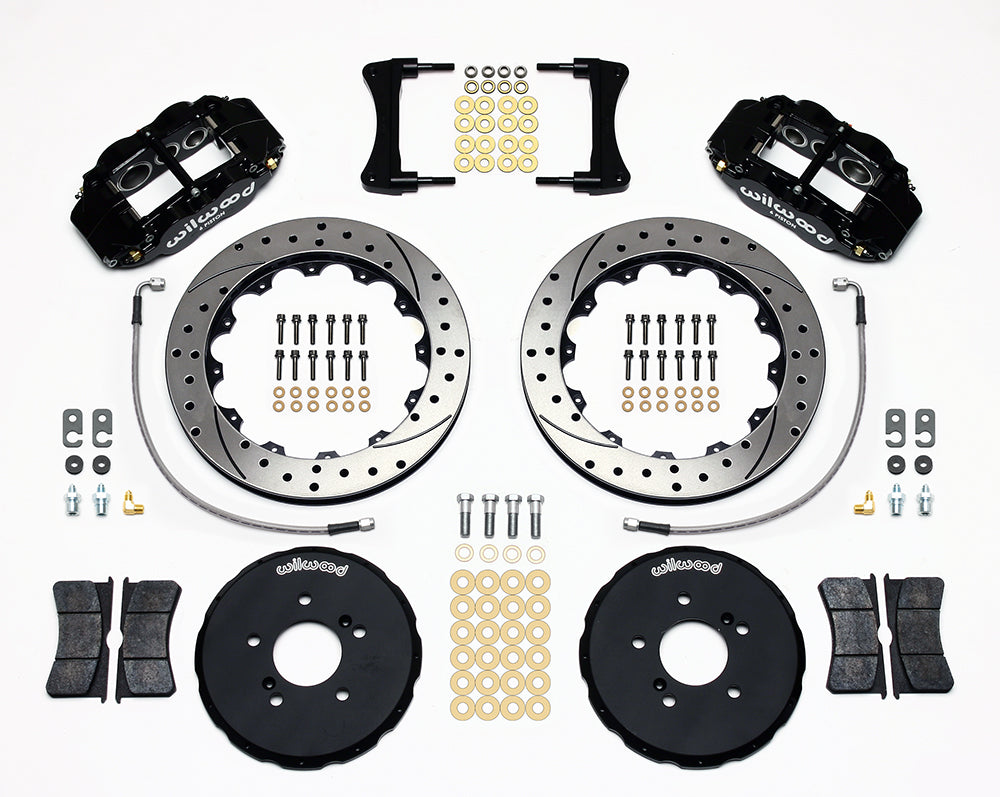

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Hydraulic flex lines included for the specified application.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Check the S2000's actual hub and spindle condition before mounting the new brackets. DS605 covers the 2000–2009 arrangement and the supplied hose routing, which must clear moving parts at both steering locks. Use the kit's wheel drawing to verify spoke depth as well as inner diameter. Inspect rotor centering and hydraulic pedal travel before completing the bedding process.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
