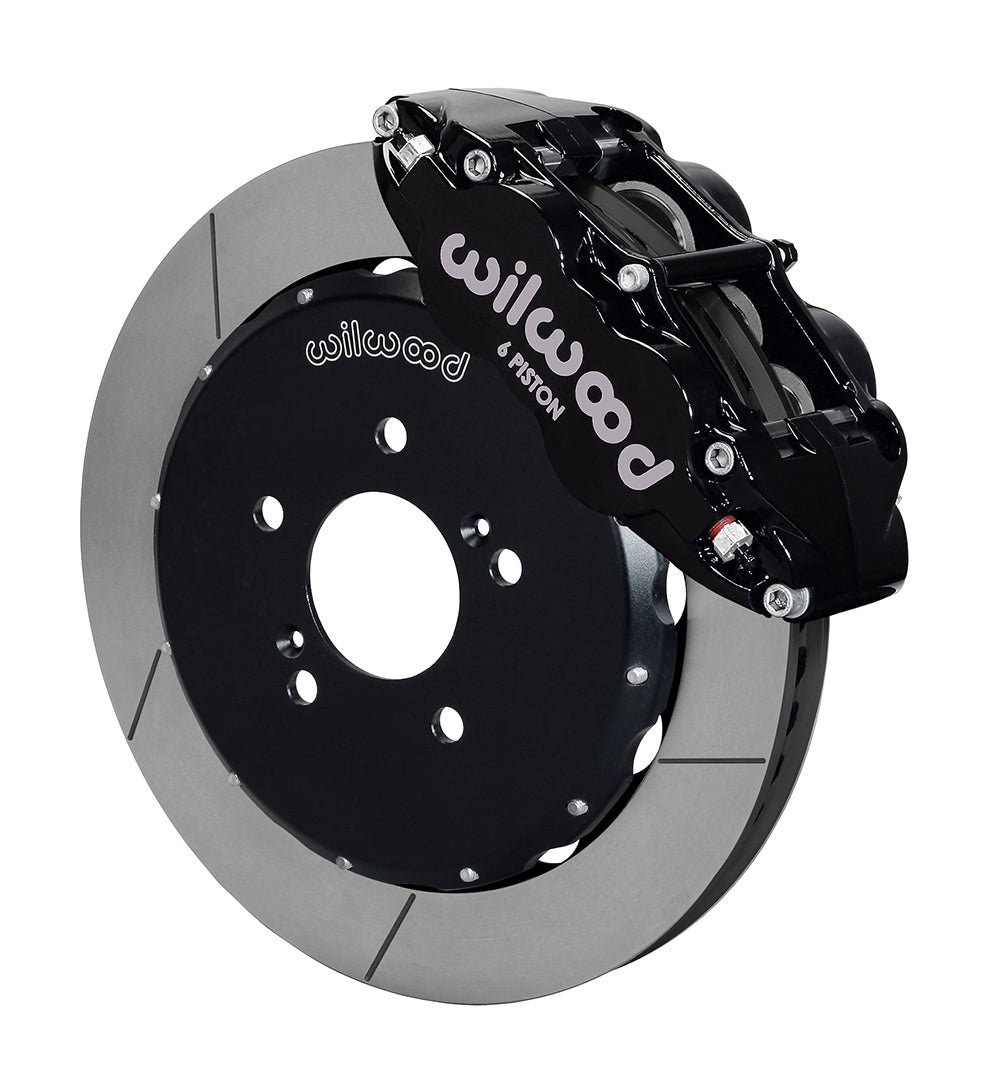

Wilwood Front Black Superlite 6R GT Brake Kit for Honda S2000 (2000–2009), 12.88-Inch Rotors and Lines

Wilwood's black Superlite 6R front kit for the S2000 includes the hydraulic flex lines needed by the specified installation. The 12.88-inch GT slotted rotors mount to separate hats over the existing hub arrangement. Six-piston differential-bore calipers are carried on radial brackets. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10309
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)
• Calipers: Forged Narrow Superlite 6R; 6 pistons; Black Powder Coat.
• Bores: 1.62, 1.12, 1.12 inches. Pads: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch width; GT Slotted, Spec-37 Iron, Black Electro Coat. 48 curved vanes.
• Wheel bolt circles: 5 x 4.50 inches.

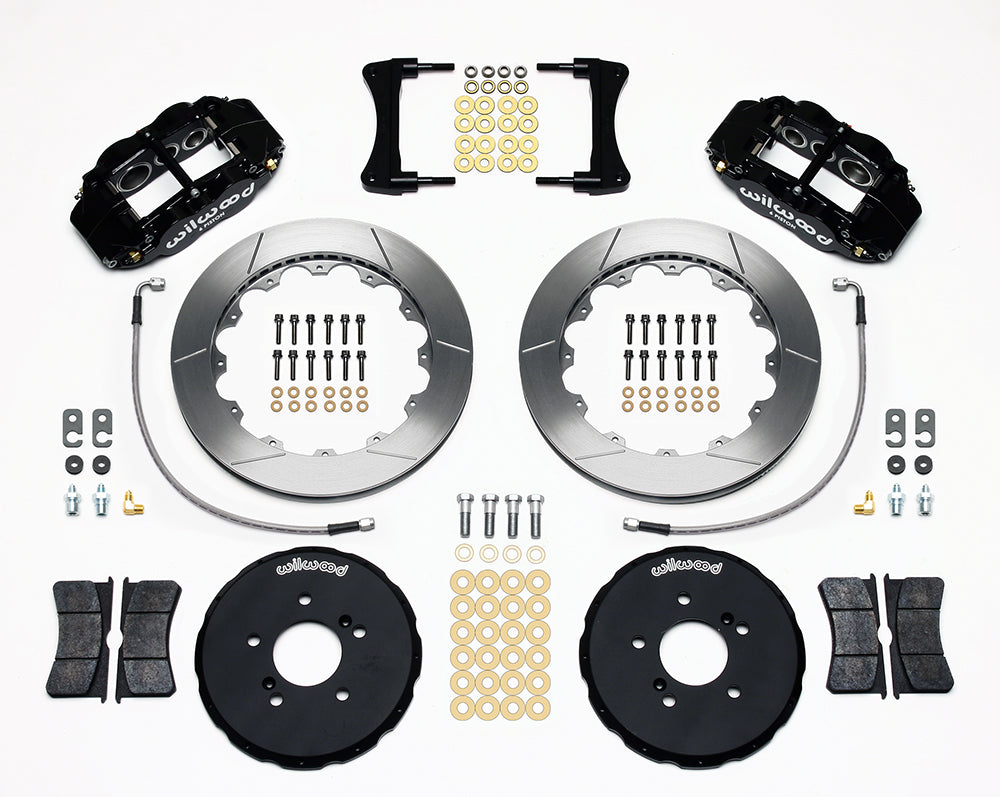

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Hydraulic flex lines included for the specified application.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Confirm the 2000–2009 Honda S2000 application and inspect the factory disc-spindle and hub interfaces. Route the supplied 18-inch flex lines clear of the wheel and suspension through full steering travel. Replacement hubs are not included. Compare the intended wheels with the exact clearance template, then verify pedal travel and front/rear brake balance before bedding the supplied pads.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
