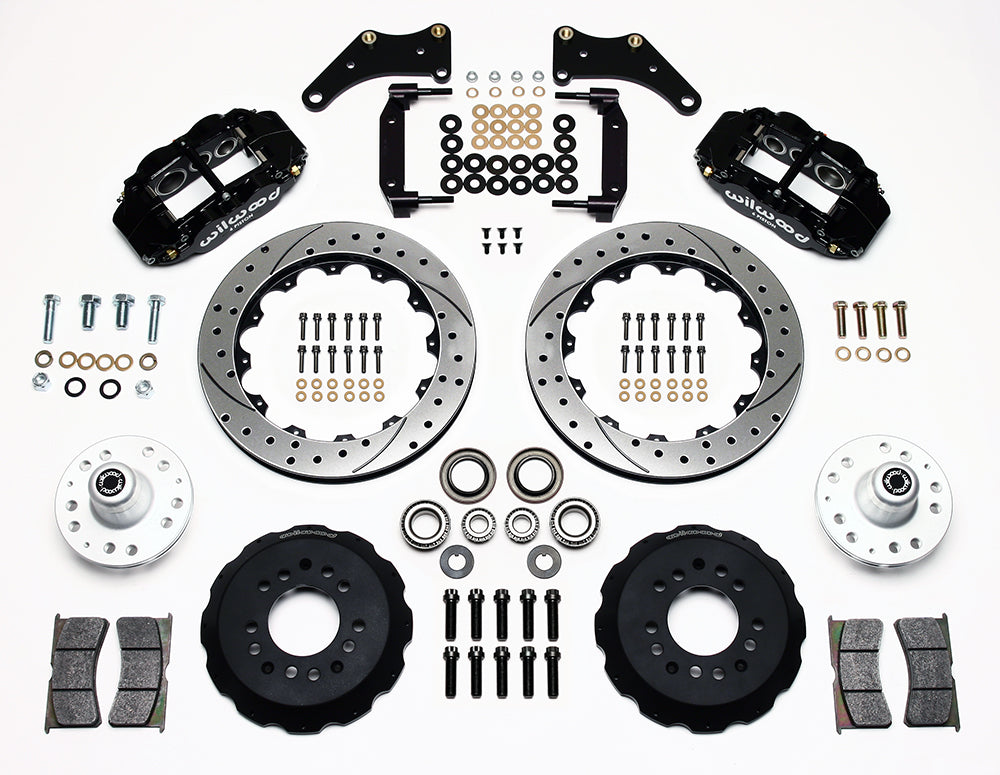

Wilwood front Superlite 6R kit for Chevrolet CPP passenger-car spindles: black calipers and 12.88-inch drilled/slotted rotor pieces laid out

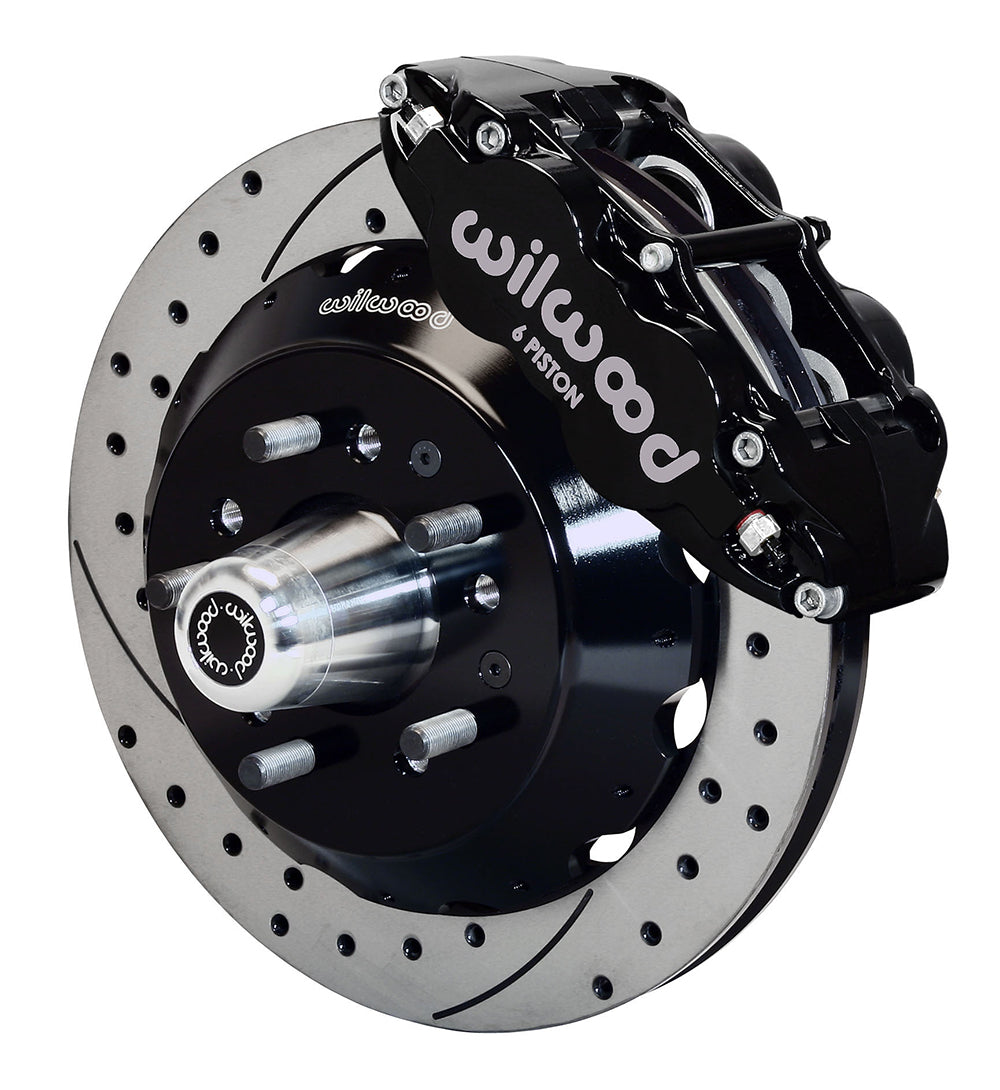

Wilwood front black Superlite 6R caliper beside a 12.88-inch drilled/slotted rotor, angled assembly for Chevrolet CPP passenger-car spindles
Wilwood front Superlite 6R kit for Chevrolet CPP passenger-car spindles: black calipers and 12.88-inch drilled/slotted rotor pieces laid out
Wilwood front black Superlite 6R caliper beside a 12.88-inch drilled/slotted rotor, angled assembly for Chevrolet CPP passenger-car spindles

Wilwood Front Black SRP Brake/Hub Kit, Chevrolet CPP 2-Inch Drop Spindles (1958–1970), 12.88-Inch

SKU: 140-10238-D

$2,354.40 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Drilled/slotted 12.88-inch rotors and black Superlite 6R calipers form this Wilwood hub conversion for the CPP drop-spindle arrangement. Aluminum hubs and separate hats provide the required rotor mounting. This is an aftermarket-spindle kit, rather than a direct replacement for the original Chevrolet knuckle. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

  • Manufacturer part number: 140-10238-D
  • Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
  • Calipers: Forged Narrow Superlite 6R; 6 pistons; Black Powder Coat.
  • Bores: 1.62, 1.12, 1.12 inches. Pads: BP-10.
  • Rotors: 12.88-inch diameter × 1.10-inch width; SRP Drilled & Slotted, Spec-37 Iron, Black Electro Coat. 48 curved vanes.
  • Hubs: Hub - Hat Mount; Aluminum; Bare.
  • Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.
  • Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs, rotor hats.
  • Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
  • Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Match the actual CPP 2-inch drop spindle to the CP30101 specification in the instructions. The original factory spindle is excluded even when the vehicle model and year match the table. Confirm hub bearings, stud pattern and wheel registration before assembly. Choose compatible hydraulic lines separately and compare the intended wheels with the full clearance template.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.

California Proposition 65 warning — brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1958-1970 Chevrolet Bel Air Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1958-1970 Chevrolet Biscayne Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1958-1961, 1969-1970 Chevrolet Brookwood Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1958 Chevrolet Del Ray Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1958-1970 Chevrolet Impala Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1958-1961 Chevrolet Nomad Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1958-1960 Chevrolet Sedan Delivery Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1958 Chevrolet Yeoman Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1959-1960 Chevrolet El Camino Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1959-1961 Chevrolet Kingswood Base Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1959-1961 Chevrolet Parkwood Base Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1966-1970 Chevrolet Caprice Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1969-1970 Chevrolet Kingswood Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1969-1970 Chevrolet Townsman Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
1970 Chevrolet Estate Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4, 5
