Wilwood Front GT Slotted Brake Kit, Red Superlite 6R, Ford Fairlane/Falcon/Mustang/Ranchero/Torino and Mercury Cougar/Cyclone/Montego/Comet (1970–1973 Disc Spindles), 12.88-Inch

This Wilwood front hub kit pairs red Superlite calipers with 12.88 × 1.10-inch GT slotted rotors. The hats, replacement hubs and brackets form the mounting package for the later factory disc spindle. A +0.25-inch change in wheel mounting position must be included when planning wheel and tire space. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10220-R
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
• Calipers: Forged Narrow Superlite 6R; 6 pistons; Red Powder Coat.
• Bores: 1.62, 1.12, 1.12 inches. Pads: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch width; GT Slotted, Spec-37 Iron, Black Electro Coat. 48 curved vanes.
• Wheel mounting change from OE: +.25 inches per side.
• Hubs: Hub - Hat Mount; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

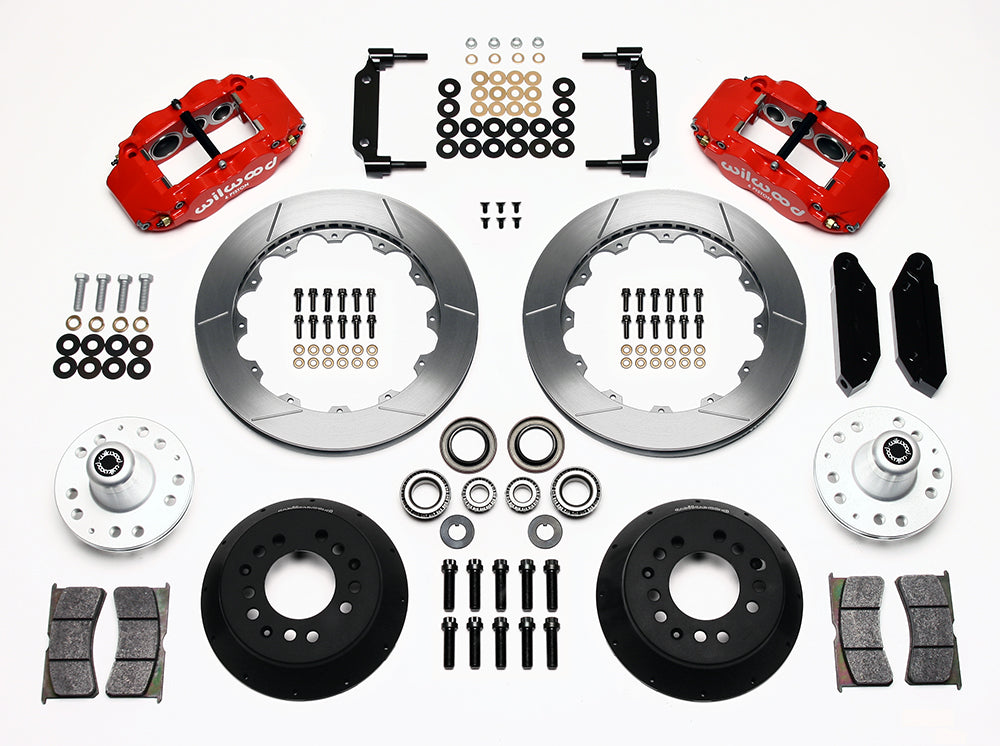

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Verify the individual Ford/Mercury model and year rather than treating the combined 1970–1973 span as universal. The Mustang GT350/GT500 exception separates this assembly from the early kit. Check the spindle and bearing arrangement in DS591, provide suitable hoses, and confirm the wheel's axial and radial clearance before installing the calipers.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
