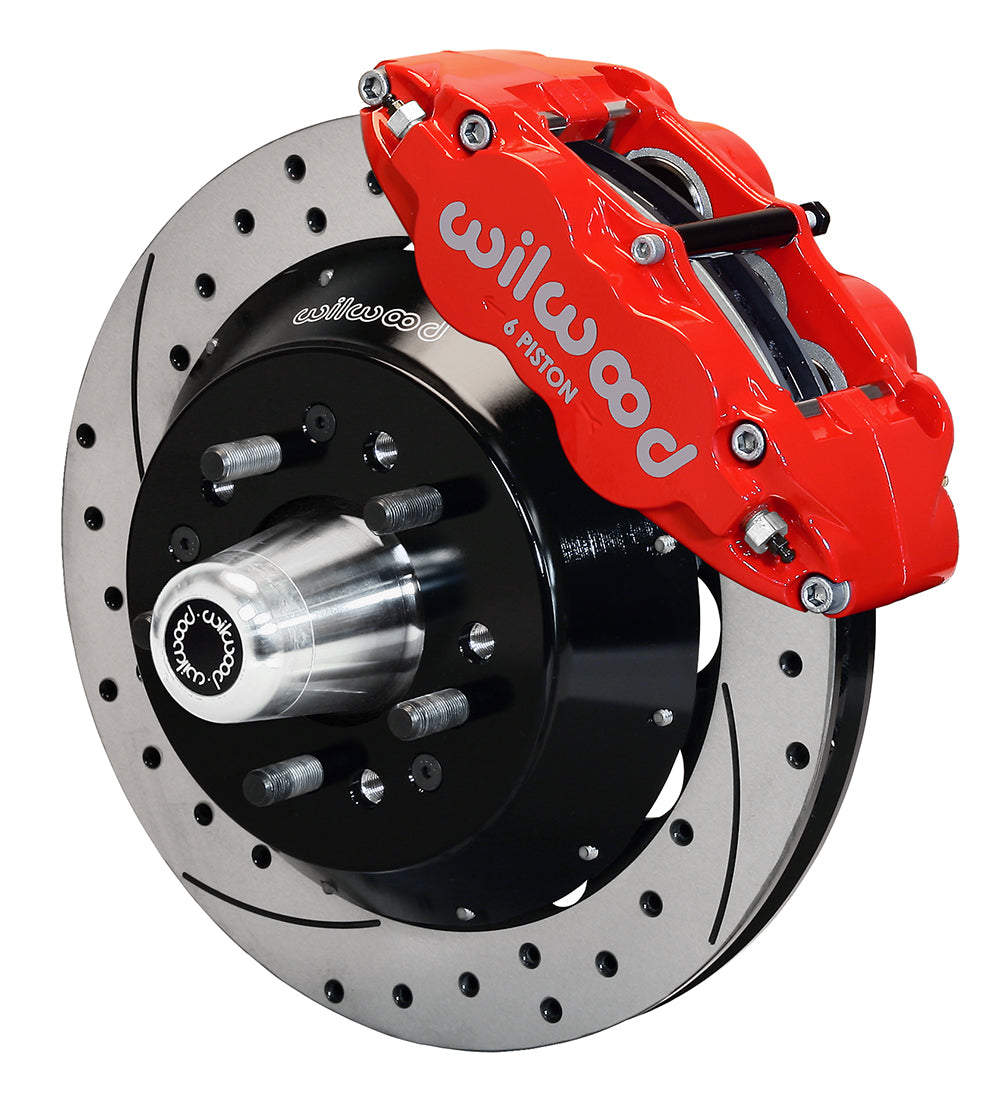

Wilwood Red Front Rotor/Hub Conversion, 12.88-Inch Drilled/Slotted Rotors, Mustang/Ranchero/Torino/Fairlane/Falcon/Montego/Comet/Cyclone/Cougar (1970–1973 Later Ford/Mercury Disc Spindles)

The red-caliper version of this Wilwood later-spindle package uses drilled/slotted 12.88-inch rotors and aluminum replacement hubs. Differential-bore Superlite 6R calipers mount radially to their brackets. The same rotor diameter appears in other Ford kits, but the hub and spindle interfaces are not interchangeable. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10220-DR
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
• Calipers: Forged Narrow Superlite 6R; 6 pistons; Red Powder Coat.
• Bores: 1.62, 1.12, 1.12 inches. Pads: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch width; SRP Drilled & Slotted, Spec-37 Iron, Black Electro Coat. 48 curved vanes.
• Wheel mounting change from OE: +.25 inches per side.
• Hubs: Hub - Hat Mount; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

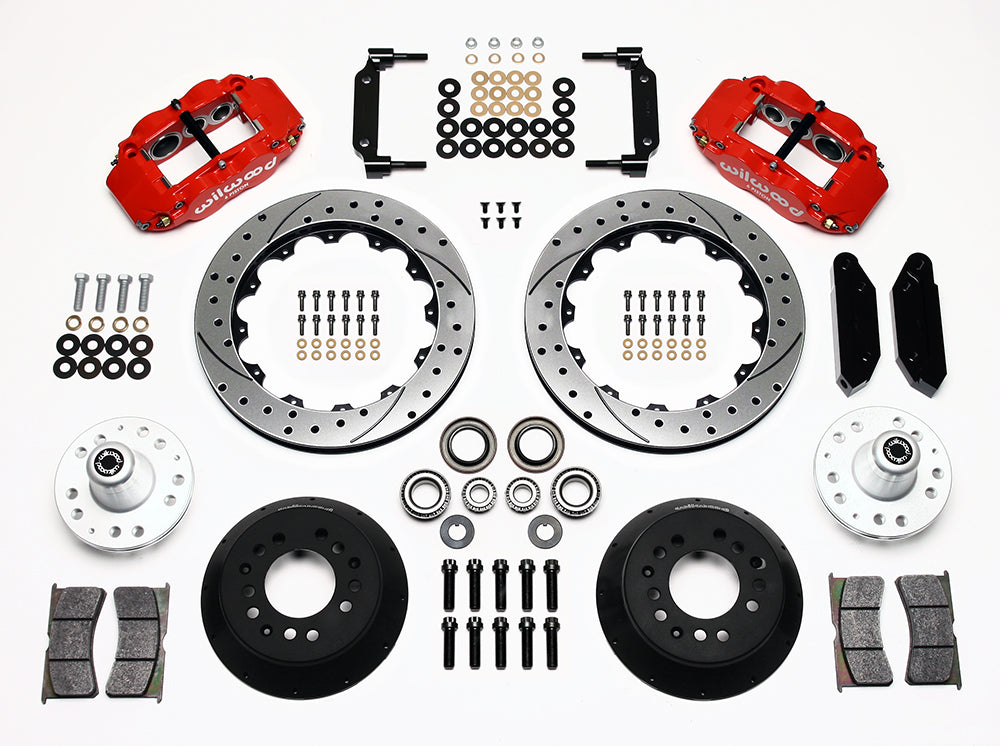

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Read the exact application row and the Mustang GT350/GT500 exclusion before ordering. The listed Ford and Mercury models use different production spans within 1970–1973. Verify the installed spindle against DS591, then account for the +0.25-inch wheel-position change. Hydraulic flex lines are a separate selection, and the wheel template must be checked behind the spokes as well as around the rim.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
