Wilwood Front SRP Brakes with Black Six-Piston Calipers, Cougar/Cyclone/Montego/Comet and Fairlane/Falcon/Mustang/Ranchero/Torino (1970–1973 Ford/Mercury Disc Spindles), 12.88-Inch

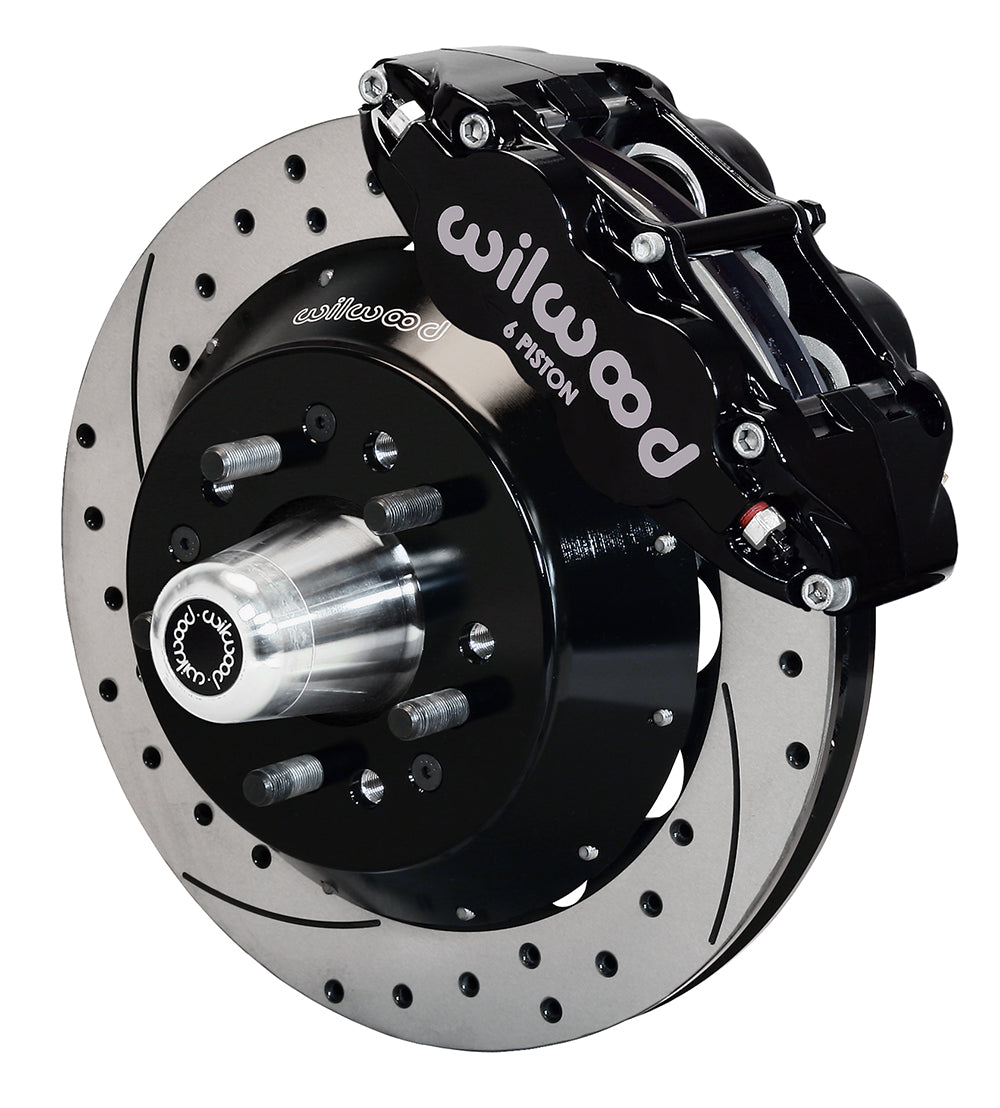

Black Superlite 6R calipers are matched with drilled/slotted 12.88-inch rotors in this Wilwood front conversion. The replacement hubs and separate hats are intended for the later Ford/Mercury disc-spindle family. This selection does not cover an early spindle simply because the model was built within the combined year range. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10220-D
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
• Calipers: Forged Narrow Superlite 6R; 6 pistons; Black Powder Coat.
• Bores: 1.62, 1.12, 1.12 inches. Pads: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch width; SRP Drilled & Slotted, Spec-37 Iron, Black Electro Coat. 48 curved vanes.
• Wheel mounting change from OE: +.25 inches per side.
• Hubs: Hub - Hat Mount; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

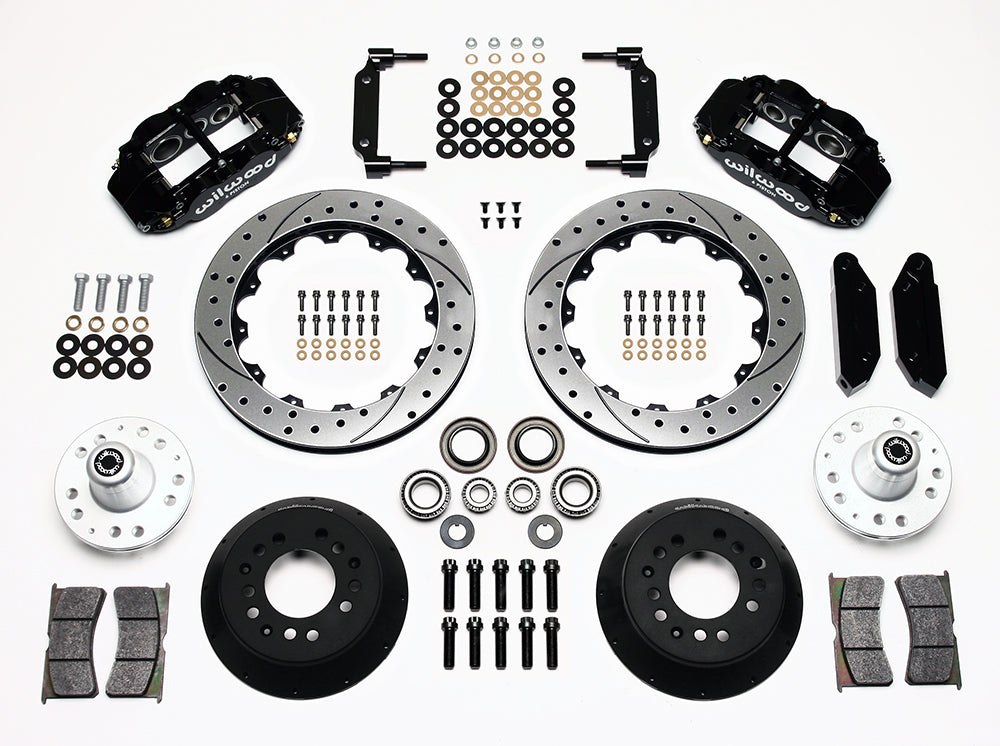

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Identify the exact model/year row and inspect any spindle changes already made to the car. At the Mustang transition, the GT350/GT500 exclusion is relevant to the mounting package. Use DS591 to compare the bearings and spindle arrangement, then include the +0.25-inch wheel shift in the fender check. Select hoses and verify full wheel-profile clearance before assembly.

Match the individual model, year, submodel and brake configuration in the fitment table below.
