Wilwood GT Slotted Front Rotor/Hub Kit, Red Superlite Calipers, Mercury Comet/Cougar/Cyclone/Montego and Ford Fairlane/Falcon/Mustang/Ranchero/Torino (1968–1970), Disc Spindles

Red Superlite 6R calipers clamp 12.88-inch GT slotted rotors in this Wilwood front hub package. The separate hats and aluminum hubs suit the early Ford/Mercury factory disc-spindle geometry. This arrangement includes a +0.25-inch mounting offset change that matters when evaluating the existing wheels and fender clearance. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10219-R
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
• Calipers: Forged Narrow Superlite 6R; 6 pistons; Red Powder Coat.
• Bores: 1.62, 1.12, 1.12 inches. Pads: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch width; GT Slotted, Spec-37 Iron, Black Electro Coat. 48 curved vanes.
• Wheel mounting change from OE: +.25 inches per side.
• Hubs: Hub - Hat Mount; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

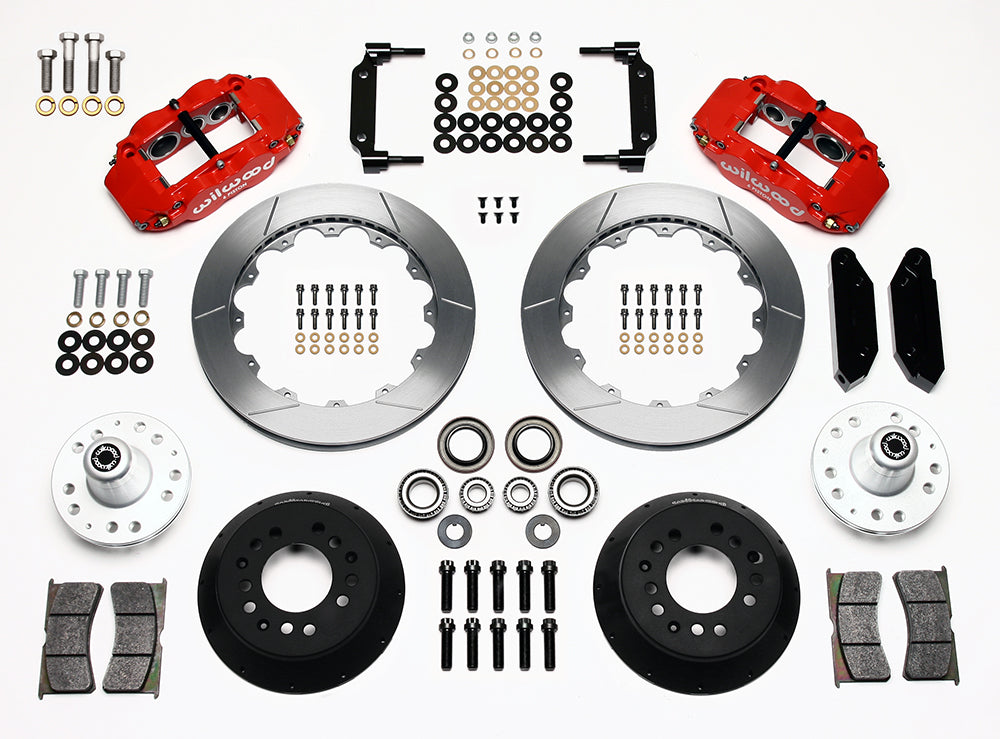

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Use the exact model/year and spindle option from the table, especially the Mustang production distinction at 1970. Inspect the bearing and steering-knuckle arrangement against DS590 before assembly. Hydraulic hoses are not supplied. Check the wheel's complete inner shape, and evaluate the existing master-cylinder displacement and pushrod travel as part of the whole brake system.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
