Wilwood Red Six-Piston Front SRP Kit for Mustang/Torino/Fairlane/Falcon/Ranchero and Cougar/Comet/Cyclone/Montego, Ford/Mercury Disc Spindles (1968–1970), 12.88-Inch Rotors

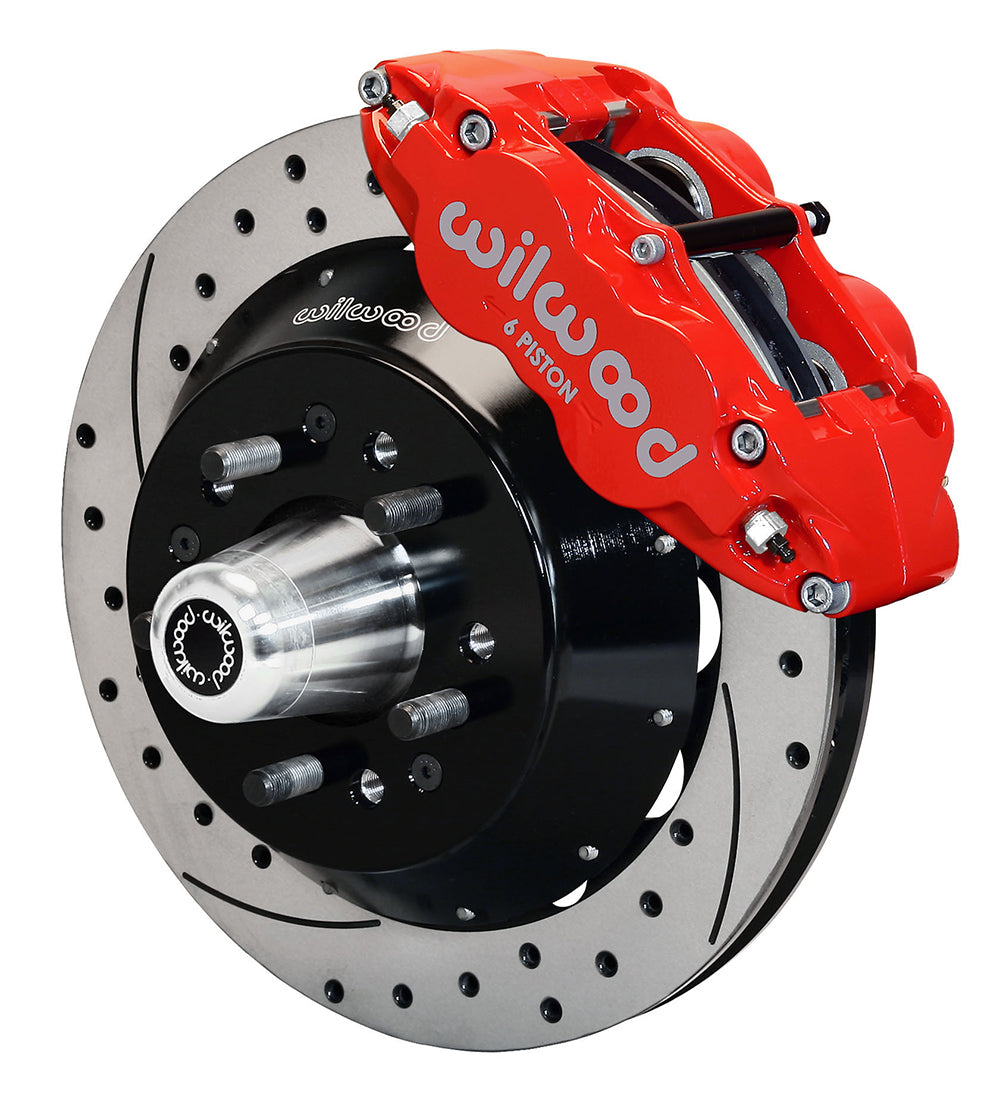

This Wilwood front conversion uses red six-piston Superlite calipers with 12.88-inch drilled/slotted rotors. Separate hats and replacement hubs adapt the specified early Ford/Mercury disc-spindle assembly. The physical spindle and bearing dimensions determine the correct package, not the presence of disc brakes alone. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10219-DR
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
• Calipers: Forged Narrow Superlite 6R; 6 pistons; Red Powder Coat.
• Bores: 1.62, 1.12, 1.12 inches. Pads: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch width; SRP Drilled & Slotted, Spec-37 Iron, Black Electro Coat. 48 curved vanes.
• Wheel mounting change from OE: +.25 inches per side.
• Hubs: Hub - Hat Mount; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

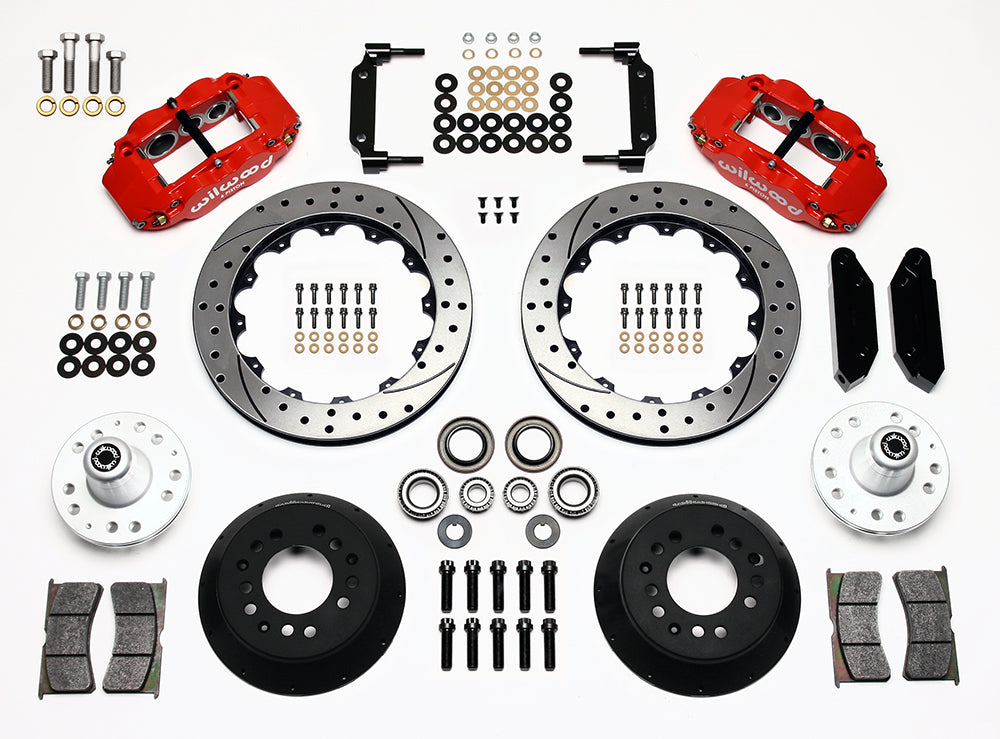

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Check the applicable model row and the Mustang GT350/GT500 exception around 1970 before selecting brackets or hubs. Compare DS590 with the actual spindle and verify the +0.25-inch offset change when planning wheel position. Flex lines must be matched separately to the vehicle. Use the wheel template for spoke depth and barrel clearance before the original brakes are removed.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
