Wilwood Front Black Superlite 6R GT Brake Kit, Ford Fairlane/Falcon/Mustang/Ranchero/Torino and Mercury Comet/Cougar/Cyclone/Montego (1968–1970 Disc Spindles), 12.88-Inch Rotors

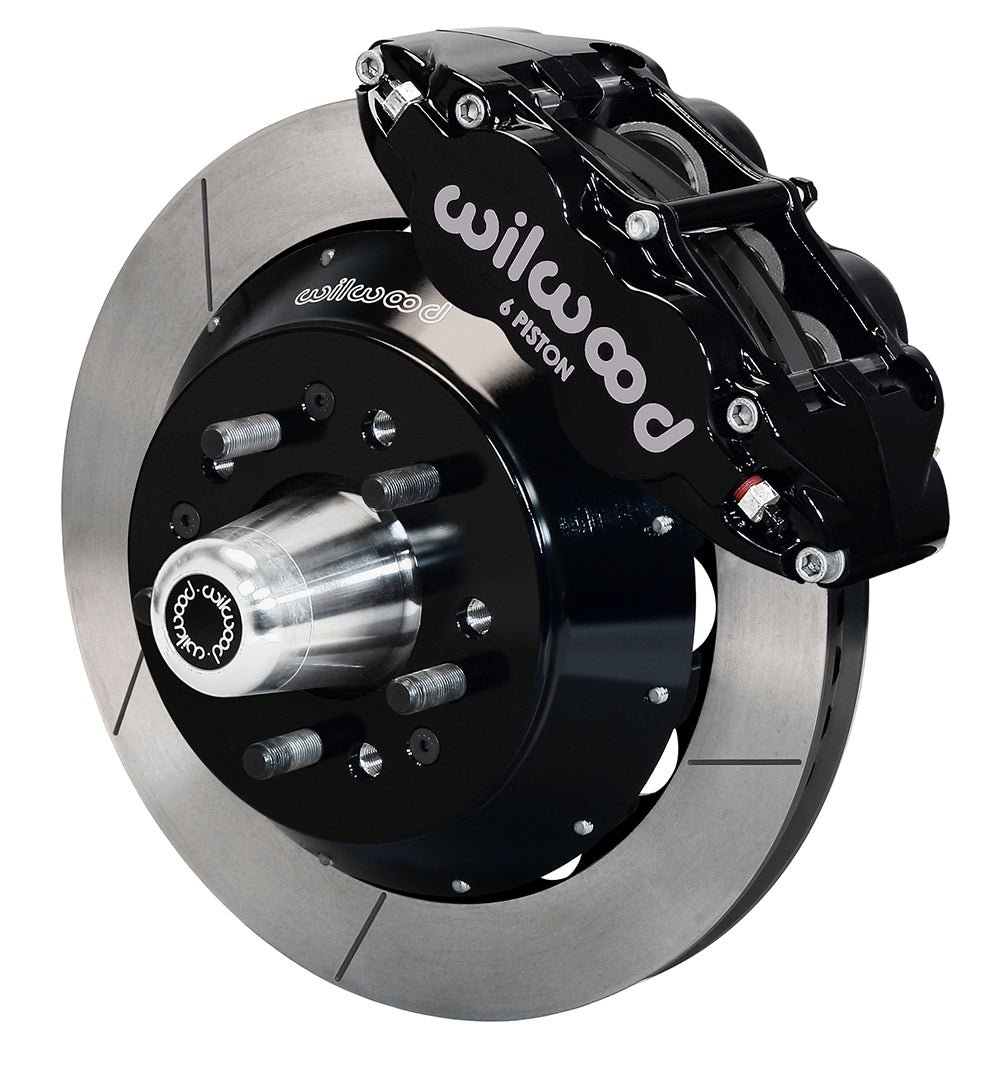

Six-piston Narrow Superlite calipers and 12.88-inch GT slotted rotors form this Wilwood front hub conversion. Black radial calipers, replacement hubs and separate hats are configured for the early Ford/Mercury disc-spindle arrangement. The 1970 Mustang GT350/GT500 entry must be distinguished from the later disc-spindle family. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10219
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
• Calipers: Forged Narrow Superlite 6R; 6 pistons; Black Powder Coat.
• Bores: 1.62, 1.12, 1.12 inches. Pads: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch width; GT Slotted, Spec-37 Iron, Black Electro Coat. 48 curved vanes.
• Wheel mounting change from OE: +.25 inches per side.
• Hubs: Hub - Hat Mount; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

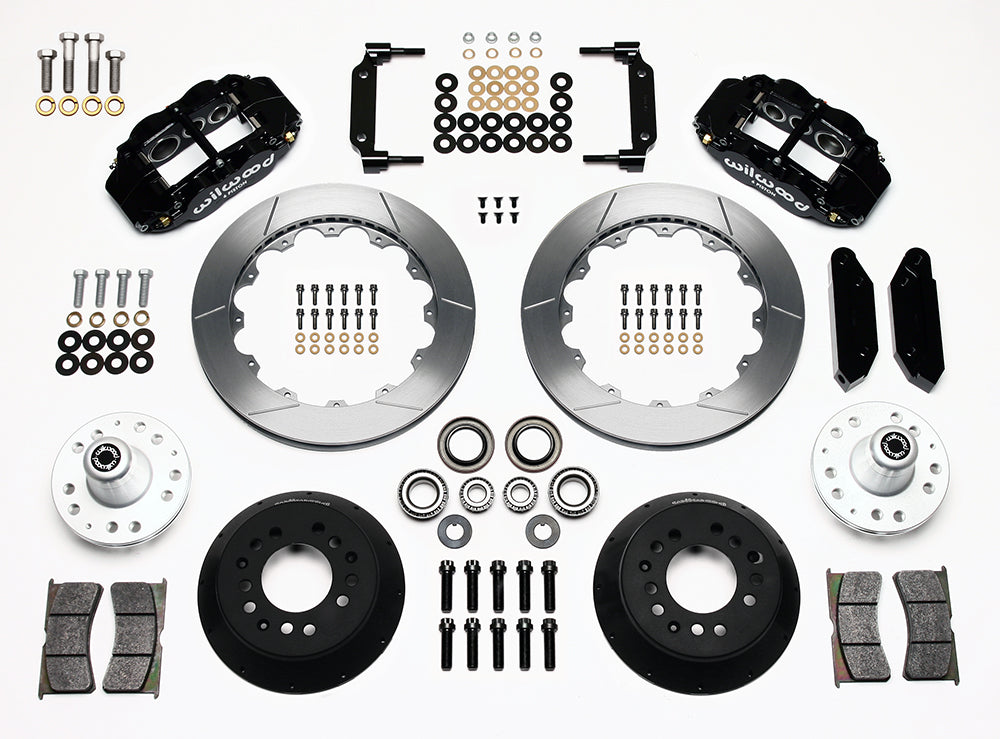

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Follow the exact Fairlane, Falcon, Mustang, Ranchero, Torino or Mercury application row rather than applying the combined year span to every model. DS590 covers the 1968–1969 Mustang disc spindle; the application table identifies additional matching configurations. Check the +0.25-inch wheel offset change and the wheel template. Hoses are separate, and master-cylinder pushrod work depends on the installed cylinder and pedal arrangement.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
