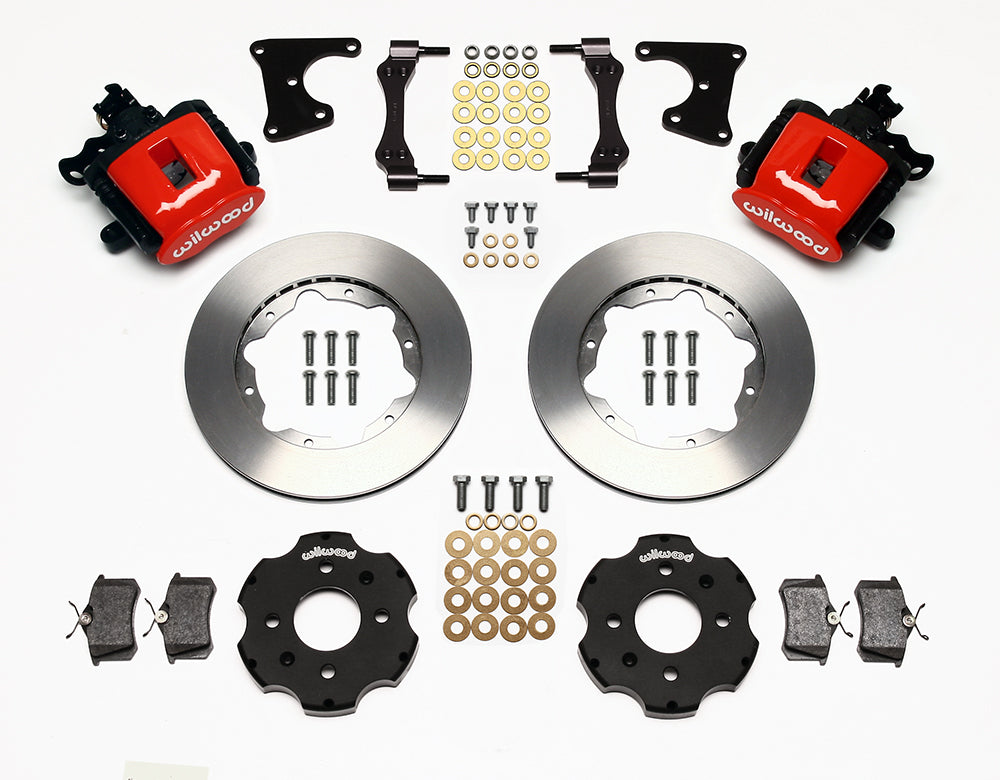

Wilwood rear CPB kit for Honda 2.71-inch drum hubs: red calipers and 11.00-inch plain-face rotor pieces laid out

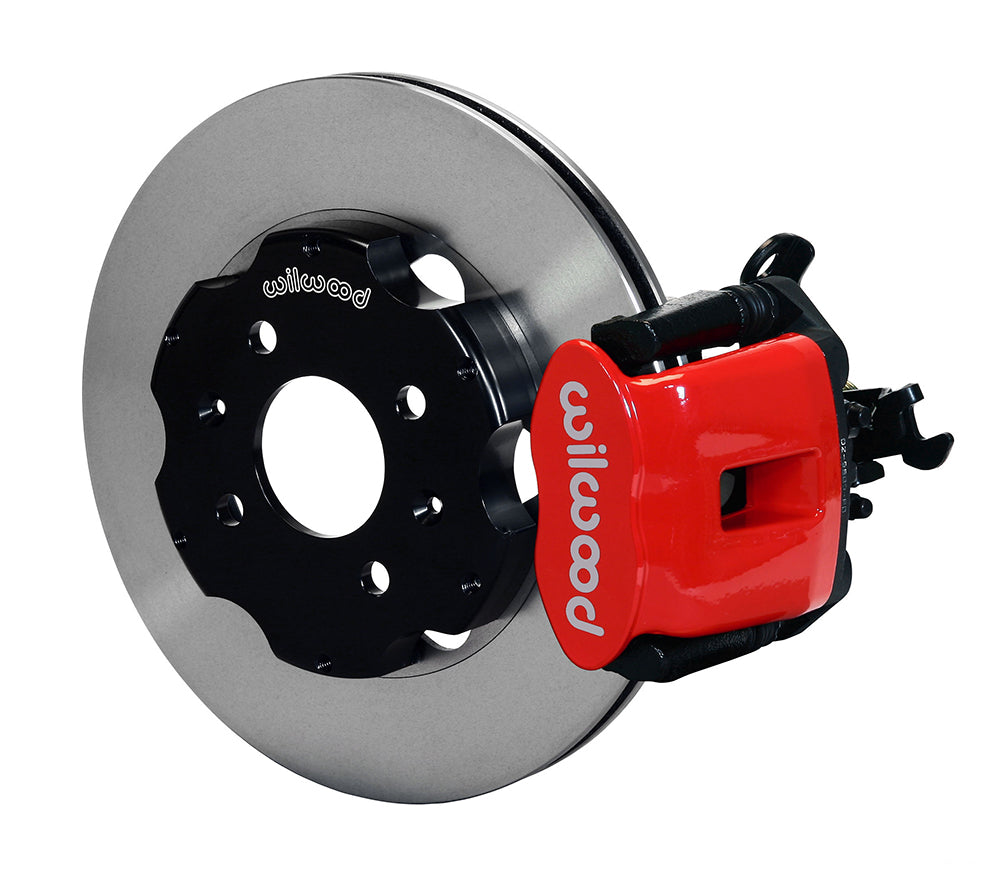

Wilwood rear red CPB caliper beside an 11.00-inch plain-face rotor, angled assembly for Honda 2.71-inch drum hubs
Wilwood rear CPB kit for Honda 2.71-inch drum hubs: red calipers and 11.00-inch plain-face rotor pieces laid out
Wilwood rear red CPB caliper beside an 11.00-inch plain-face rotor, angled assembly for Honda 2.71-inch drum hubs

Wilwood Rear Red Plain-Rotor CPB Conversion, Honda Civic/CRX/Civic del Sol (1988–1997), 11-Inch, 2.71 Offset

SKU: 140-10210-R

$1,025.78 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

With red CPB calipers and plain 11-inch vented rotors, this Wilwood rear conversion is configured for the 2.71-inch-offset drum hub. The original 180 × 30 mm drum size helps identify the correct mounting arrangement. Parking and service braking share the caliper, using separate mechanical cable and hydraulic inputs. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

  • Manufacturer part number: 140-10210-R
  • Type: Combination Parking Brake Caliper Rear Brake Kit
  • Calipers: Combination Parking Brake; 1 piston; Red Powder Coat.
  • Bores: 1.34 inches. Pads: BP-10.
  • Rotors: 11.00-inch diameter × 0.81-inch width; Plain Face, Iron, Plain. 30 vanes.
  • Axle flange offset: 2.71 inches.
  • Wheel bolt circles: 4 x 3.93 inches.
  • Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
  • Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
  • Parking cables/connections separate.
  • Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Check the specific Honda model and year row, with its transmission and ABS conditions, before choosing this kit. Measure the hub and confirm the drum family rather than relying on the current wheel or trim badge. Hydraulic lines and parking cable connections need separate selection. Compare the proposed wheel with the clearance diagram and check that the caliper lever releases freely after cable adjustment.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.

California Proposition 65 warning — brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1988 Honda Civic Sedan w/ AT Disc Drum Rear Kit 1, 2, 3
1988 Honda Civic Sedan w/ MT Disc Drum Rear Kit 1, 2, 3
1988-1991 Honda Civic Base HB Base Disc Drum Rear Kit 1, 2, 3
1988-1989 Honda CRX DX & SI Disc Drum Rear Kit 1, 2, 3
1988-1991 Honda CRX HF HF Disc Drum Rear Kit 1, 2, 3
1989-1991 Honda Civic HB DX Disc Drum Rear Kit 1, 2, 3
1989-1991 Honda Civic Sedan DX / LX Models Disc Drum Rear Kit 1, 2, 3
1989-1991 Honda Civic Si HB SI Disc Drum Rear Kit 1, 2, 3
1990-1991 Honda Civic EX Sedan EX Disc Drum Rear Kit 1, 2, 3
1990-1991 Honda CRX DX Disc Drum Rear Kit 1, 2, 3
1992-1995 Honda Civic HB Manual Excludes SI Model Disc Drum Rear Kit 1, 2, 3
1992-1993 Honda Civic Sedan DX / LX Models w/ MT Disc Drum Rear Kit 1, 2, 3
1993-1995 Honda Civic Coupe DX w/ Manual Disc Drum Rear Kit 1, 2, 3
1993-1995 Honda Civic EX Coupe EX Manual Disc Drum Rear Kit 1, 2, 3
1993 Honda Civic del Sol w/ Rear Drum Disc Drum Rear Kit 1, 2, 3
1994-1995 Honda Civic Sedan DX w/ MT Disc Drum Rear Kit 1, 2, 3
1994-1995 Honda Civic Sedan LX w/ MT w/ out ABS Disc Drum Rear Kit 1, 2, 3
1994-1995 Honda Civic Sedan LX w/ Manual Disc Drum Rear Kit 1, 2, 3
1994-1997 Honda Civic del Sol W/ Rear Drum Disc Drum Rear Kit 1, 2, 3
1995 Honda Civic HB Auto Excludes SI Model Disc Drum Rear Kit 1, 2, 3
