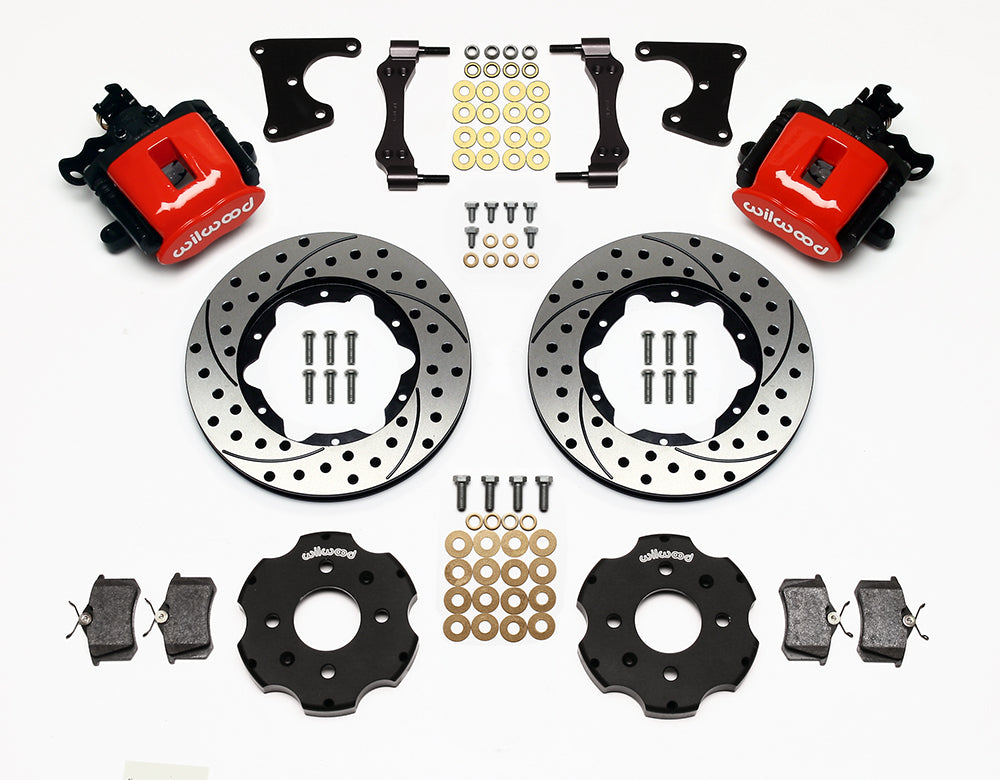

Wilwood rear CPB kit for Honda 2.71-inch drum hubs: red calipers and 11.00-inch drilled/slotted rotor pieces laid out

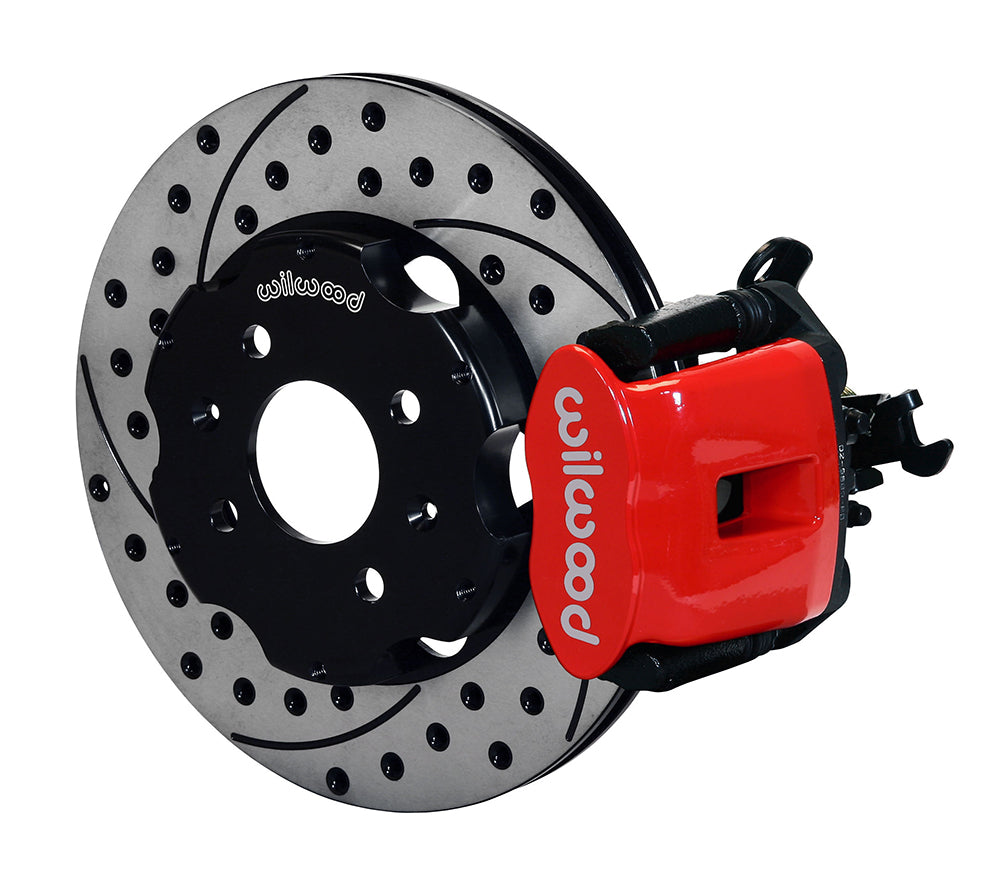

Wilwood rear red CPB caliper beside an 11.00-inch drilled/slotted rotor, angled assembly for Honda 2.71-inch drum hubs
Wilwood rear CPB kit for Honda 2.71-inch drum hubs: red calipers and 11.00-inch drilled/slotted rotor pieces laid out
Wilwood rear red CPB caliper beside an 11.00-inch drilled/slotted rotor, angled assembly for Honda 2.71-inch drum hubs

Wilwood Rear Red CPB Brake Kit with 11-Inch Drilled/Slotted Rotors, Civic/CRX/Civic del Sol (1988–1997)

SKU: 140-10210-DR

$1,168.09 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Red parking calipers and drilled/slotted vented rotors form this Wilwood 11-inch rear package. Its 2.71-inch hat positioning corresponds to the original 180 × 30 mm drum hub. The CPB caliper uses a hydraulic piston for service braking and a cable-operated lever for the parking function. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

  • Manufacturer part number: 140-10210-DR
  • Type: Combination Parking Brake Caliper Rear Brake Kit
  • Calipers: Combination Parking Brake; 1 piston; Red Powder Coat.
  • Bores: 1.34 inches. Pads: BP-10.
  • Rotors: 11.00-inch diameter × 0.81-inch width; SRP Drilled & Slotted, Iron, Black Electro Coat. 30 vanes.
  • Axle flange offset: 2.71 inches.
  • Wheel bolt circles: 4 x 3.93 inches.
  • Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
  • Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
  • Parking cables/connections separate.
  • Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Identify the 180 × 30 mm original drum assembly first, then measure the hub's 2.71-inch offset. The Civic, CRX and Civic del Sol rows distinguish manual/automatic, hatchback/sedan/coupe and ABS arrangements; matching a model badge does not satisfy those conditions. DS601 shows the bracket and hat positioning for this hub family. Before the first brake test, establish free cable-lever return and correct hydraulic-hose movement, with the intended wheel checked against the actual assembly outline.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.

California Proposition 65 warning — brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1988 Honda Civic Sedan w/ AT Disc Drum Rear Kit 1, 2, 3
1988 Honda Civic Sedan w/ MT Disc Drum Rear Kit 1, 2, 3
1988-1991 Honda Civic Base HB Base Disc Drum Rear Kit 1, 2, 3
1988-1989 Honda CRX DX & SI Disc Drum Rear Kit 1, 2, 3
1988-1991 Honda CRX HF HF Disc Drum Rear Kit 1, 2, 3
1989-1991 Honda Civic HB DX Disc Drum Rear Kit 1, 2, 3
1989-1991 Honda Civic Sedan DX / LX Models Disc Drum Rear Kit 1, 2, 3
1989-1991 Honda Civic Si HB SI Disc Drum Rear Kit 1, 2, 3
1990-1991 Honda Civic EX Sedan EX Disc Drum Rear Kit 1, 2, 3
1990-1991 Honda CRX DX Disc Drum Rear Kit 1, 2, 3
1992-1995 Honda Civic HB Manual Excludes SI Model Disc Drum Rear Kit 1, 2, 3
1992-1993 Honda Civic Sedan DX / LX Models w/ MT Disc Drum Rear Kit 1, 2, 3
1993-1995 Honda Civic Coupe DX w/ Manual Disc Drum Rear Kit 1, 2, 3
1993-1995 Honda Civic EX Coupe EX Manual Disc Drum Rear Kit 1, 2, 3
1993 Honda Civic del Sol w/ Rear Drum Disc Drum Rear Kit 1, 2, 3
1994-1995 Honda Civic Sedan DX w/ MT Disc Drum Rear Kit 1, 2, 3
1994-1995 Honda Civic Sedan LX w/ MT w/ out ABS Disc Drum Rear Kit 1, 2, 3
1994-1995 Honda Civic Sedan LX w/ Manual Disc Drum Rear Kit 1, 2, 3
1994-1997 Honda Civic del Sol W/ Rear Drum Disc Drum Rear Kit 1, 2, 3
1995 Honda Civic HB Auto Excludes SI Model Disc Drum Rear Kit 1, 2, 3
