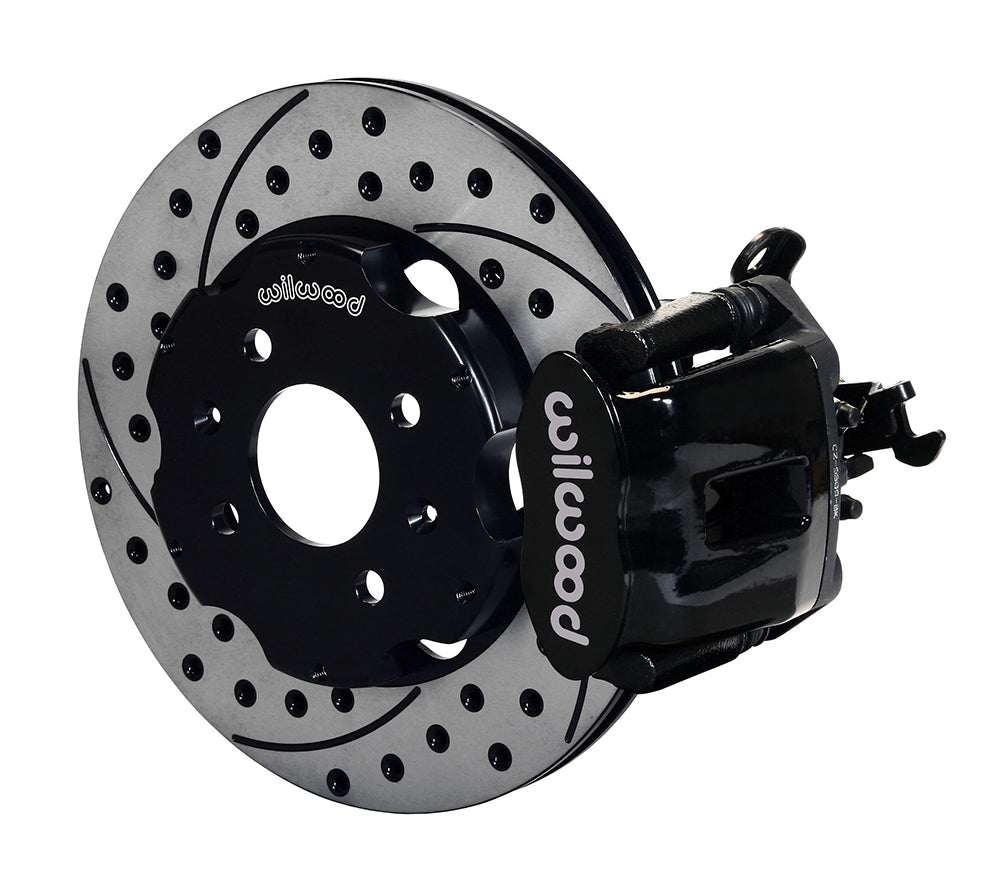

Wilwood Rear Black 11-Inch SRP Conversion for Honda Civic/CRX/Civic del Sol (1988–1997), 180 × 30 mm Drums

Drilled/slotted 11-inch rotors and black combination parking calipers make up this Wilwood rear drum conversion. The brackets and separate hats are intended for a 2.71-inch hub offset, associated with the original 180 × 30 mm drum assembly. That dimension must be retained even where the same Civic model is offered with another rear hub. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10210-D
• Type: Combination Parking Brake Caliper Rear Brake Kit
• Calipers: Combination Parking Brake; 1 piston; Black Powder Coat.
• Bores: 1.34 inches. Pads: BP-10.
• Rotors: 11.00-inch diameter × 0.81-inch width; SRP Drilled & Slotted, Iron, Black Electro Coat. 30 vanes.
• Axle flange offset: 2.71 inches.
• Wheel bolt circles: 4 x 3.93 inches.

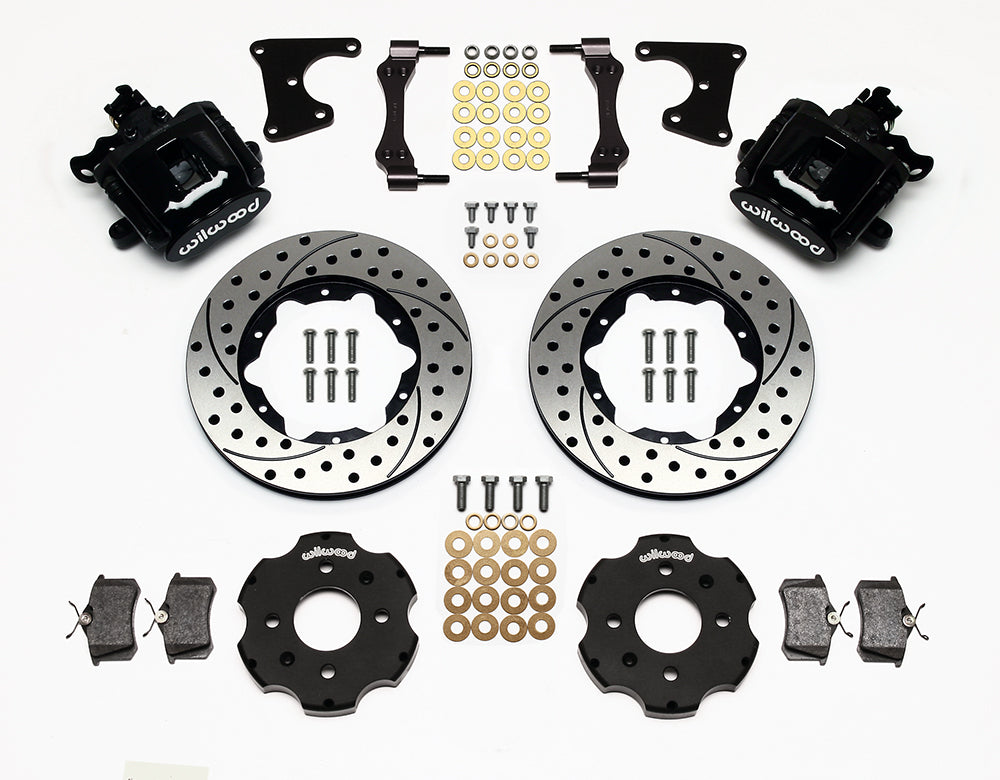

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Parking cables/connections separate.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Verify the model/year row for Civic, CRX or Civic del Sol, including the gearbox and body-style restrictions. Identify the actual rear hub and measure the offset before assembling the hats. Hydraulic hoses and parking-cable connections are selected separately for the vehicle. Use the clearance template to inspect space around the caliper, including the inner spoke face.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.

California Proposition 65 warning — brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
