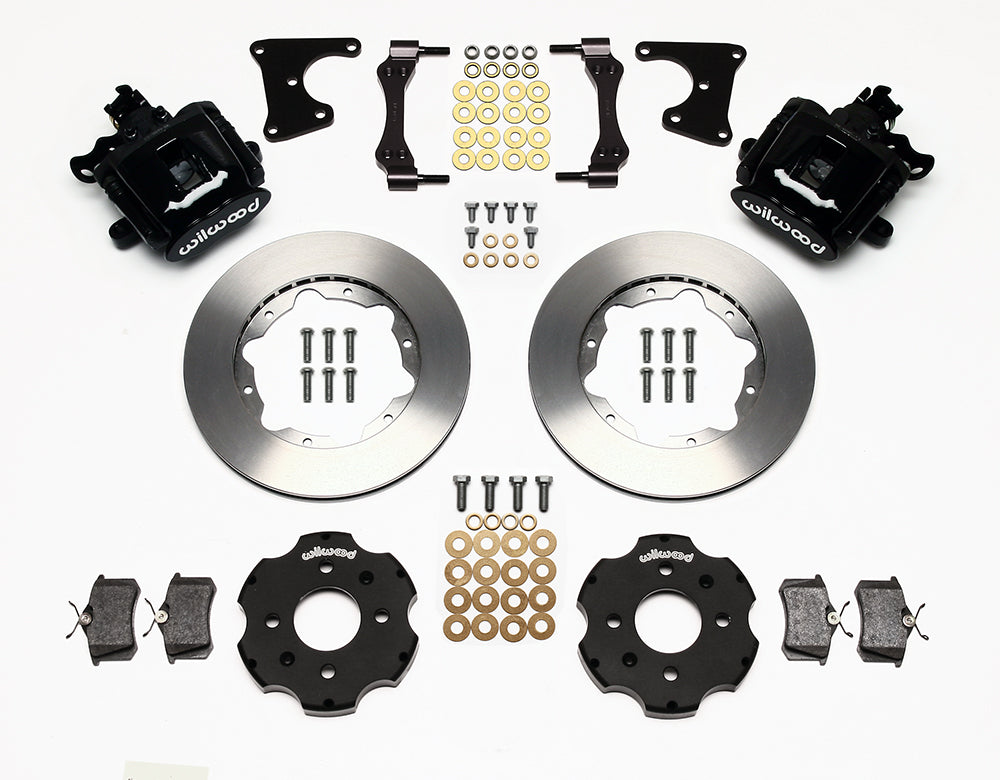

Wilwood rear CPB kit for Honda 2.71-inch drum hubs: black calipers and 11.00-inch plain-face rotor pieces laid out

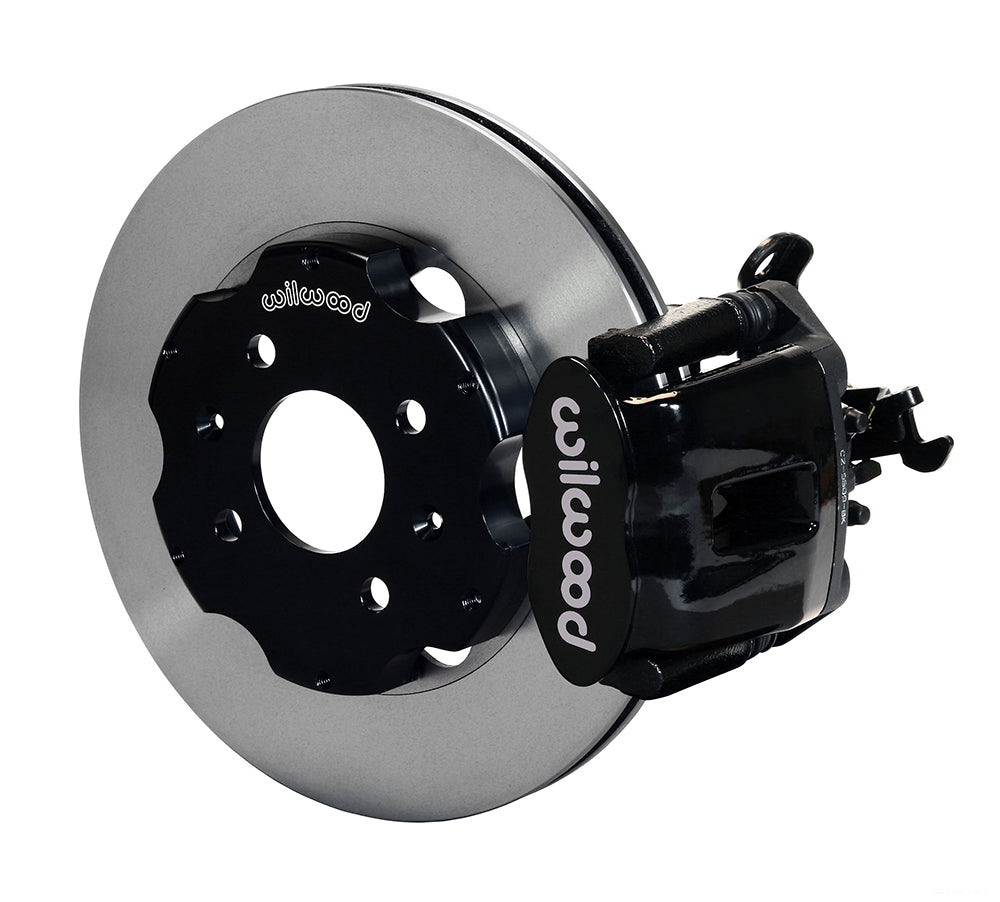

Wilwood rear black CPB caliper beside an 11.00-inch plain-face rotor, angled assembly for Honda 2.71-inch drum hubs
Wilwood rear CPB kit for Honda 2.71-inch drum hubs: black calipers and 11.00-inch plain-face rotor pieces laid out
Wilwood rear black CPB caliper beside an 11.00-inch plain-face rotor, angled assembly for Honda 2.71-inch drum hubs

Wilwood Rear Black 11-Inch Plain Brake Kit, Honda Civic/CRX/Civic del Sol (1988–1997), 2.71-Inch Drum Hubs

SKU: 140-10210

$1,025.78 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

This Wilwood rear conversion fits the deeper 2.71-inch drum-hub arrangement used with the specified 180 × 30 mm drums. Black CPB calipers provide hydraulic braking and cable parking over plain 11-inch vented rotors. The hat offset is different from both the 2.46-inch drum kit and the original-disc-hub package. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

  • Manufacturer part number: 140-10210
  • Type: Combination Parking Brake Caliper Rear Brake Kit
  • Calipers: Combination Parking Brake; 1 piston; Black Powder Coat.
  • Bores: 1.34 inches. Pads: BP-10.
  • Rotors: 11.00-inch diameter × 0.81-inch width; Plain Face, Iron, Plain. 30 vanes.
  • Axle flange offset: 2.71 inches.
  • Wheel bolt circles: 4 x 3.93 inches.
  • Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
  • Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
  • Parking cables/connections separate.
  • Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

The early Civic rows extend from 1988 through the specified 1995 configurations; CRX and Civic del Sol have their own narrower production windows. Those applications share the relevant 180 × 30 mm drum-hub arrangement, not every Honda rear hub. A 2.71-inch measurement must be confirmed at the installed hub. During conversion, arrange the hose connection and parking-lever cable interface, then compare the proposed wheel with DS601's brake profile. Original-disc and 2.46-inch drum hubs need a different hat package.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.

California Proposition 65 warning — brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1988 Honda Civic Sedan w/ AT Disc Drum Rear Kit 1, 2, 3
1988 Honda Civic Sedan w/ MT Disc Drum Rear Kit 1, 2, 3
1988-1991 Honda Civic Base HB Base Disc Drum Rear Kit 1, 2, 3
1988-1989 Honda CRX DX & SI Disc Drum Rear Kit 1, 2, 3
1988-1991 Honda CRX HF HF Disc Drum Rear Kit 1, 2, 3
1989-1991 Honda Civic HB DX Disc Drum Rear Kit 1, 2, 3
1989-1991 Honda Civic Sedan DX / LX Models Disc Drum Rear Kit 1, 2, 3
1989-1991 Honda Civic Si HB SI Disc Drum Rear Kit 1, 2, 3
1990-1991 Honda Civic EX Sedan EX Disc Drum Rear Kit 1, 2, 3
1990-1991 Honda CRX DX Disc Drum Rear Kit 1, 2, 3
1992-1995 Honda Civic HB Manual Excludes SI Model Disc Drum Rear Kit 1, 2, 3
1992-1993 Honda Civic Sedan DX / LX Models w/ MT Disc Drum Rear Kit 1, 2, 3
1993-1995 Honda Civic Coupe DX w/ Manual Disc Drum Rear Kit 1, 2, 3
1993-1995 Honda Civic EX Coupe EX Manual Disc Drum Rear Kit 1, 2, 3
1993 Honda Civic del Sol w/ Rear Drum Disc Drum Rear Kit 1, 2, 3
1994-1995 Honda Civic Sedan DX w/ MT Disc Drum Rear Kit 1, 2, 3
1994-1995 Honda Civic Sedan LX w/ MT w/ out ABS Disc Drum Rear Kit 1, 2, 3
1994-1995 Honda Civic Sedan LX w/ Manual Disc Drum Rear Kit 1, 2, 3
1994-1997 Honda Civic del Sol W/ Rear Drum Disc Drum Rear Kit 1, 2, 3
1995 Honda Civic HB Auto Excludes SI Model Disc Drum Rear Kit 1, 2, 3
