Wilwood Rear Plain 12.19-Inch Civic Brake/Parking Kit (1992–2000), Red Calipers, 2.46-Inch Drum Offset

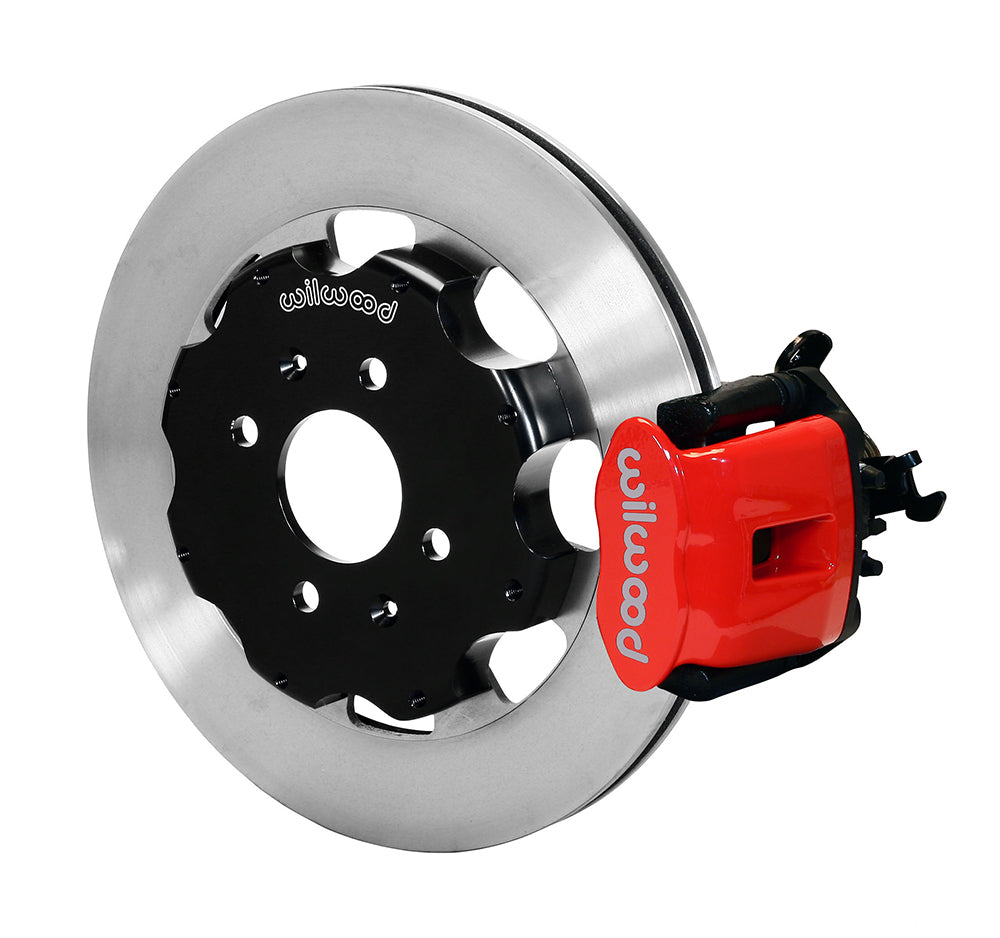

The red-caliper, plain-rotor version of this Wilwood Civic rear kit uses 12.19-inch vented discs on separate hats. It is dimensioned for 200 × 35 mm original drums and 2.46-inch hub offset. The CPB lever provides a cable parking function within the same caliper that supplies hydraulic service braking. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10209-R
• Type: Combination Parking Brake Caliper Rear Brake Kit
• Calipers: Combination Parking Brake; 1 piston; Red Powder Coat.
• Bores: 1.34 inches. Pads: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; Plain Face, Iron, Plain. 32 vanes.
• Axle flange offset: 2.46 inches.
• Wheel bolt circles: 4 x 3.93 inches.

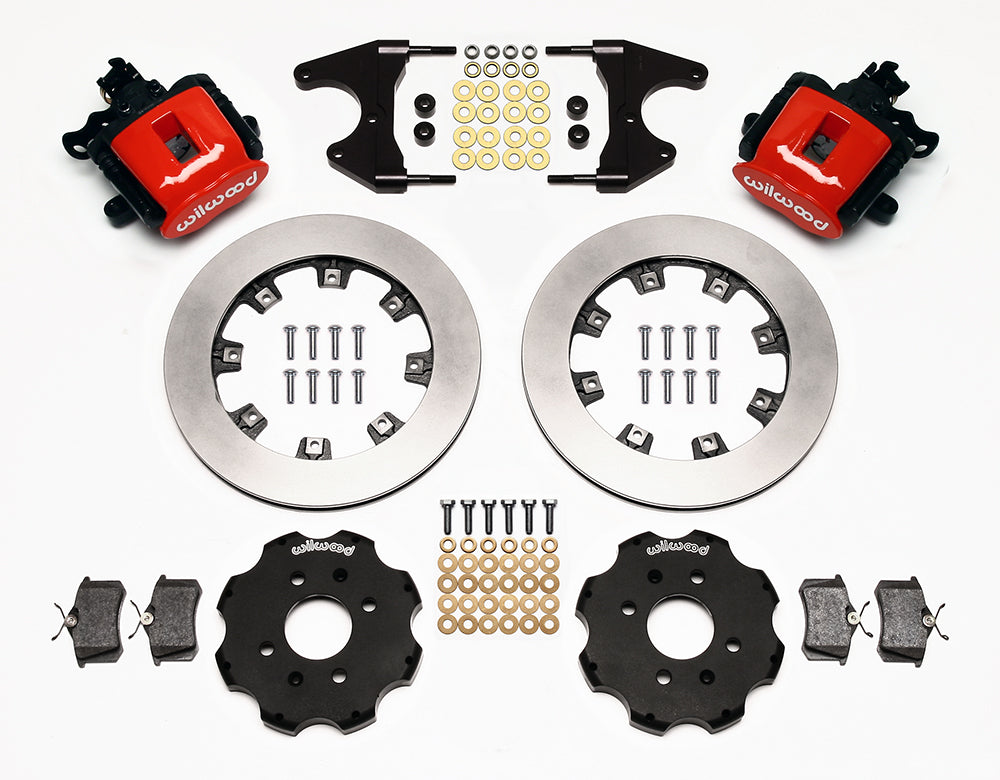

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Parking cables/connections separate.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Match the vehicle's body, transmission and ABS details to the exact application row, then measure its hub to confirm the offset. Do not exchange this hat arrangement with the 2.71-inch drum-hub version. The actual wheel template takes priority over nominal diameter references. Supply compatible flex lines and cable connections, and inspect parking release and rotor centering before road testing.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
