Wilwood Rear Red Parking-Caliper Conversion, Honda Civic (1992–2000), 12.19-Inch SRP Rotors for 2.46-Inch Drum Hubs

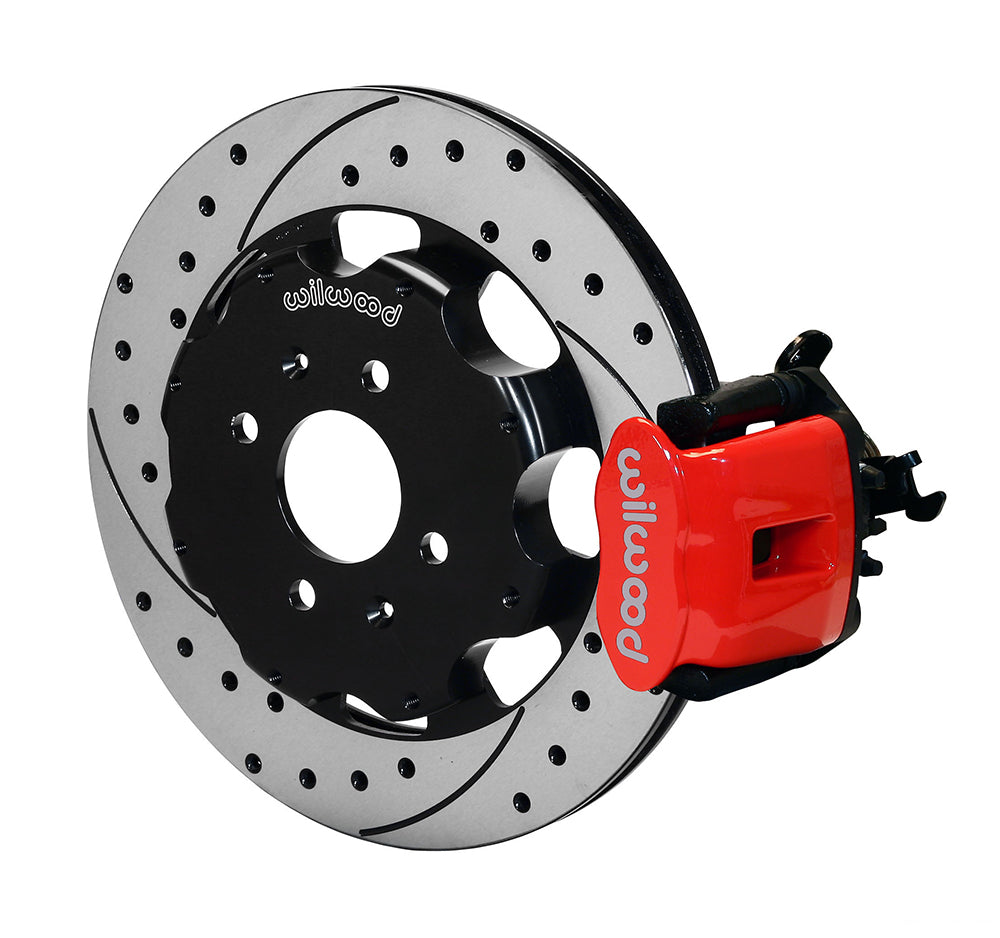

Red combination parking calipers clamp 12.19-inch drilled/slotted rotors in this Wilwood Civic conversion. The separate hats are positioned for the 2.46-inch original drum-hub offset. This arrangement adds hydraulic rear discs while keeping mechanical parking operation through the caliper lever. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10209-DR
• Type: Combination Parking Brake Caliper Rear Brake Kit
• Calipers: Combination Parking Brake; 1 piston; Red Powder Coat.
• Bores: 1.34 inches. Pads: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; SRP Drilled & Slotted, Iron, Black Electro Coat. 32 vanes.
• Axle flange offset: 2.46 inches.
• Wheel bolt circles: 4 x 3.93 inches.

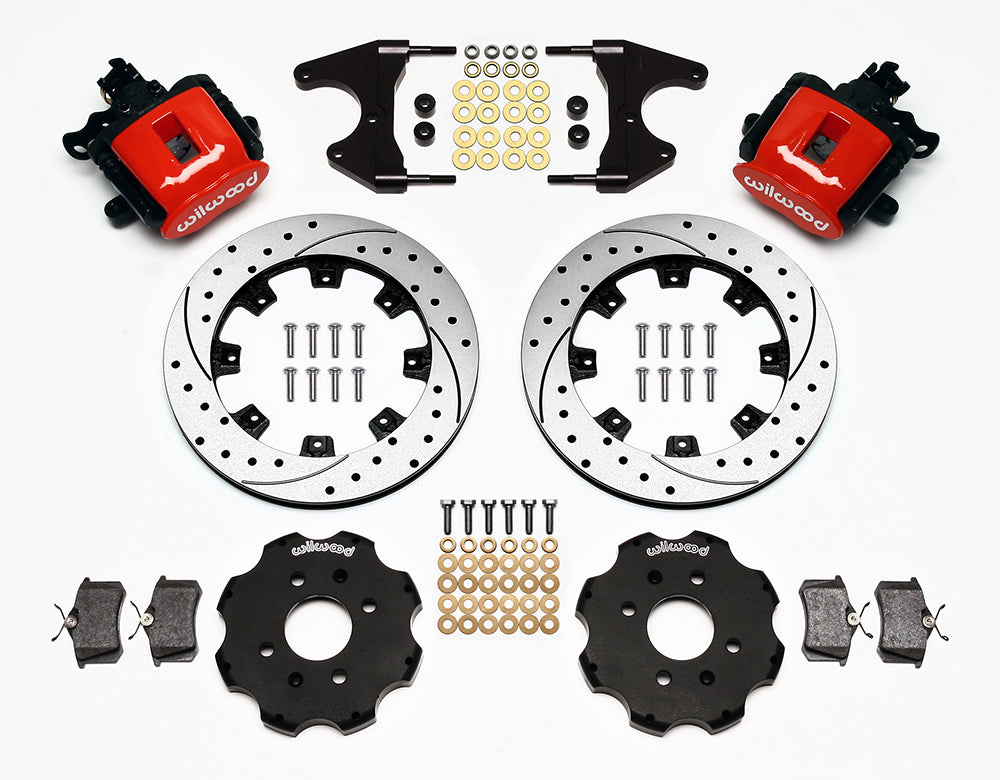

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Parking cables/connections separate.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Confirm the 200 × 35 mm drum-hub configuration and the individual Civic application row, not simply its EX, LX or hatchback label. Some options depend on transmission and ABS equipment. Check the actual wheel-clearance drawing to resolve the differing wheel-size guidance, then provide correct rear hoses and cable connections. A larger rotor must still be centered correctly inside the caliper brackets.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
