Wilwood Rear Black 12.19-Inch SRP Conversion, Honda Civic (1992–2000), 200 × 35 mm Drum Hub

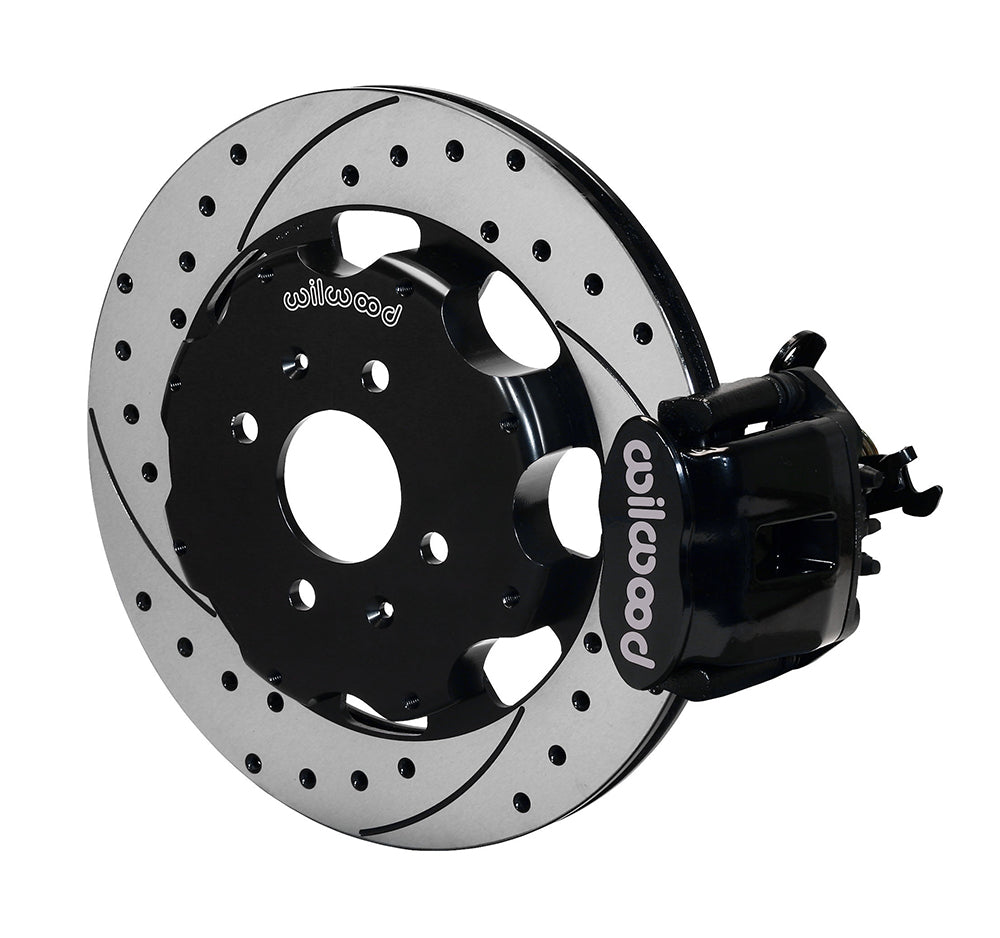

Drilled/slotted 12.19-inch rotors bring the larger friction-ring option to this Wilwood Civic rear package. Black CPB calipers combine hydraulic stopping and a cable parking mechanism on brackets for a 2.46-inch-offset drum hub. The original 200 × 35 mm drum arrangement determines which hat package is required. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10209-D
• Type: Combination Parking Brake Caliper Rear Brake Kit
• Calipers: Combination Parking Brake; 1 piston; Black Powder Coat.
• Bores: 1.34 inches. Pads: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; SRP Drilled & Slotted, Iron, Black Electro Coat. 32 vanes.
• Axle flange offset: 2.46 inches.
• Wheel bolt circles: 4 x 3.93 inches.

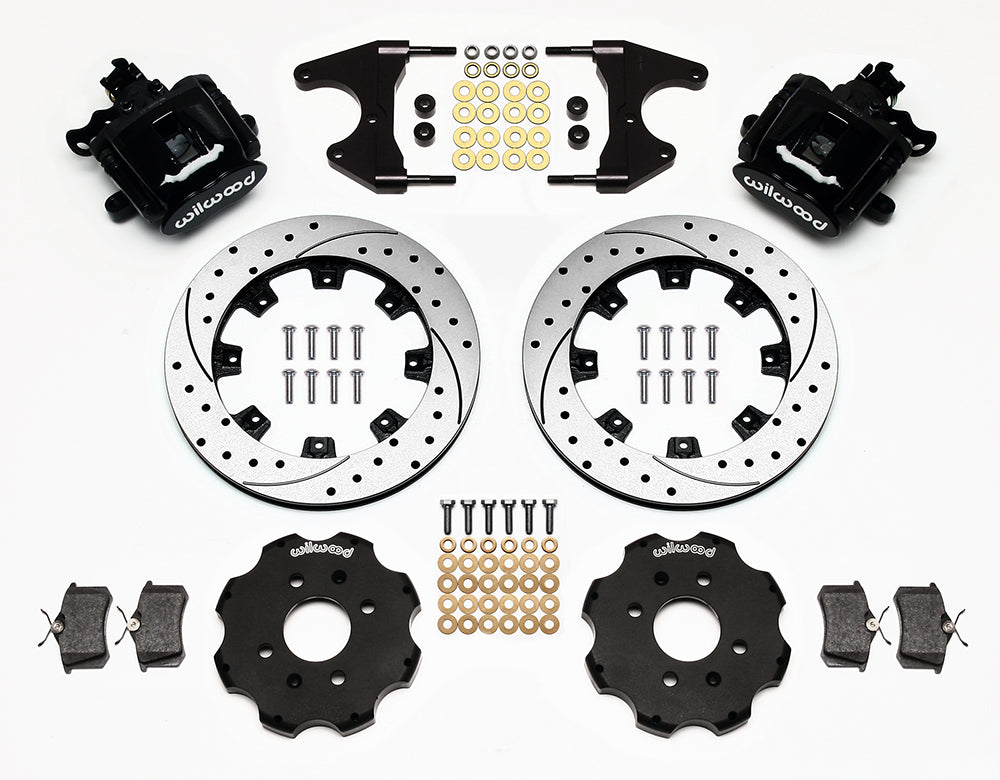

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Parking cables/connections separate.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Compare the hub offset and original drum size before ordering for a 1992–2000 Civic. The fitment rows distinguish gearbox, ABS and body-style combinations rather than granting one universal Civic application. Check the wheel template because the manufacturer's nominal wheel-size references are inconsistent. Hydraulic lines and parking cable adapters must be selected for the car, with lever release and caliper centering checked at assembly.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
