Wilwood Rear Black CPB Brake Kit for Honda Civic (1992–2000), 12.19-Inch Plain Rotors, 2.46-Inch Drum Hubs

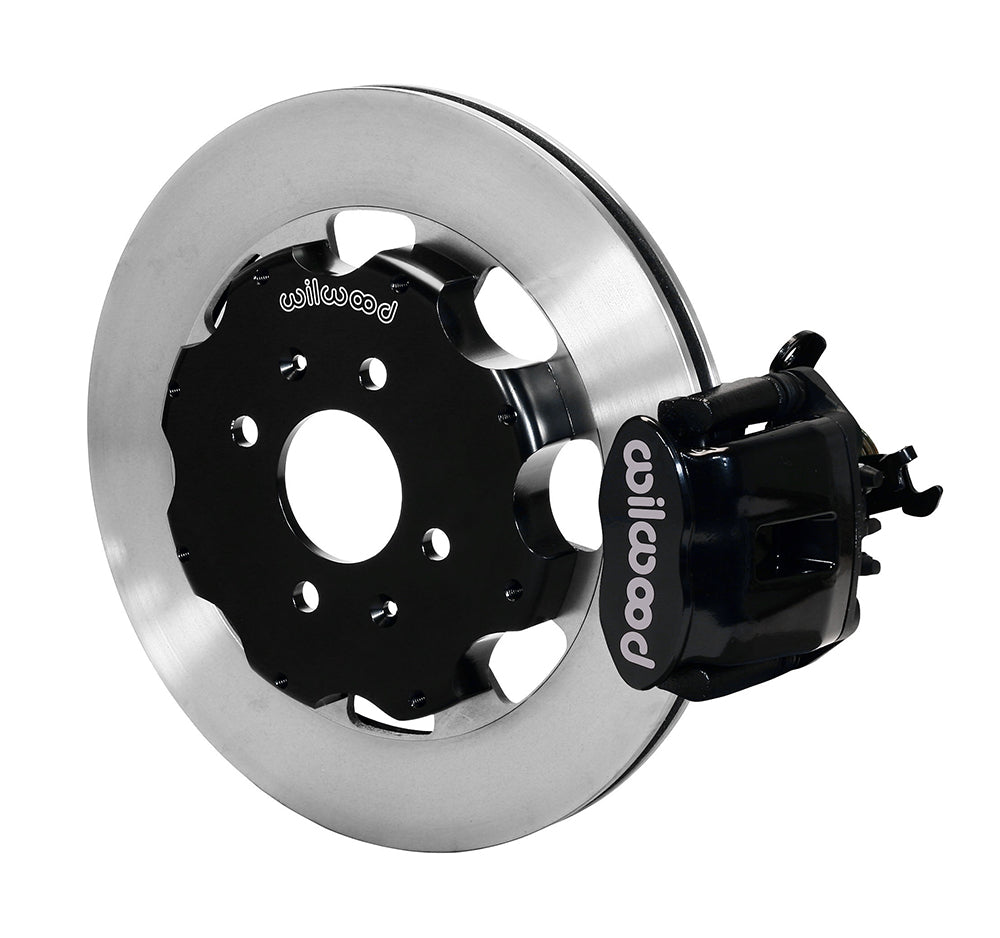

Wilwood's larger plain-rotor Civic drum conversion uses 12.19-inch vented friction rings and black combination parking calipers. Its hats and brackets are for the original 200 × 35 mm drum hub with 2.46-inch offset. The parking function remains cable-operated through the CPB lever. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10209
• Type: Combination Parking Brake Caliper Rear Brake Kit
• Calipers: Combination Parking Brake; 1 piston; Black Powder Coat.
• Bores: 1.34 inches. Pads: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; Plain Face, Iron, Plain. 32 vanes.
• Axle flange offset: 2.46 inches.
• Wheel bolt circles: 4 x 3.93 inches.

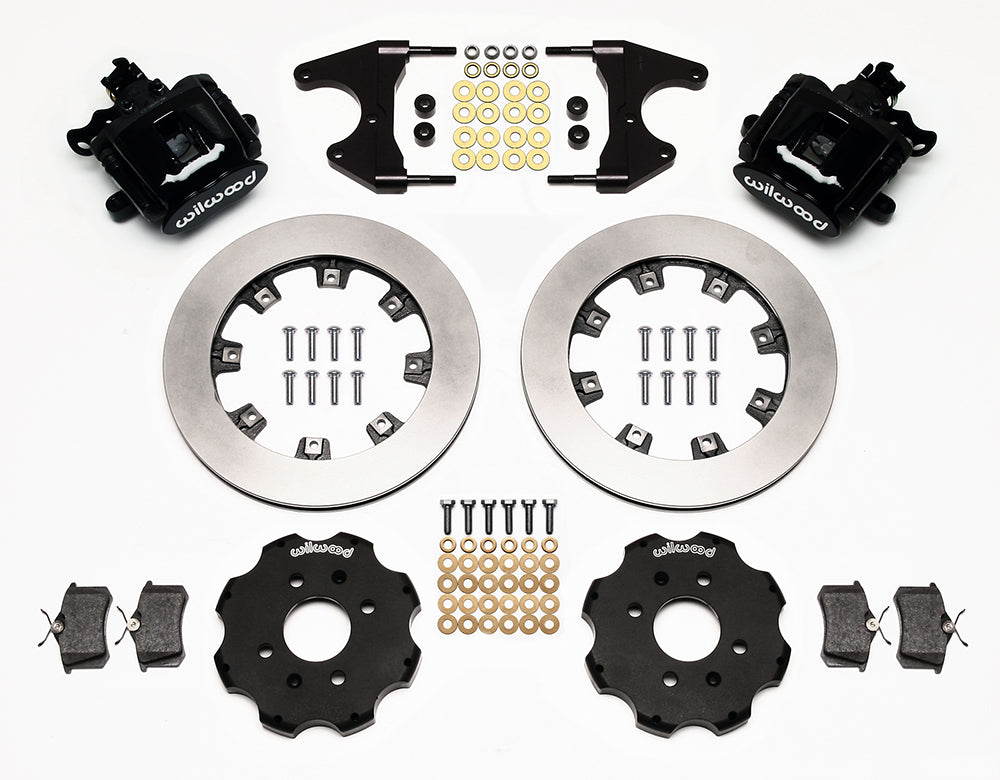

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Parking cables/connections separate.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Confirm the specific Civic model option, including body style, transmission and ABS where listed. The original drum dimensions identify the correct hub family; visual similarity to a disc hub is insufficient. Wheel-size guidance differs between the summary and application note, so use the exact template. Select hydraulic hoses and cable connections for the chassis and verify rotor-to-caliper alignment before final tightening.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
